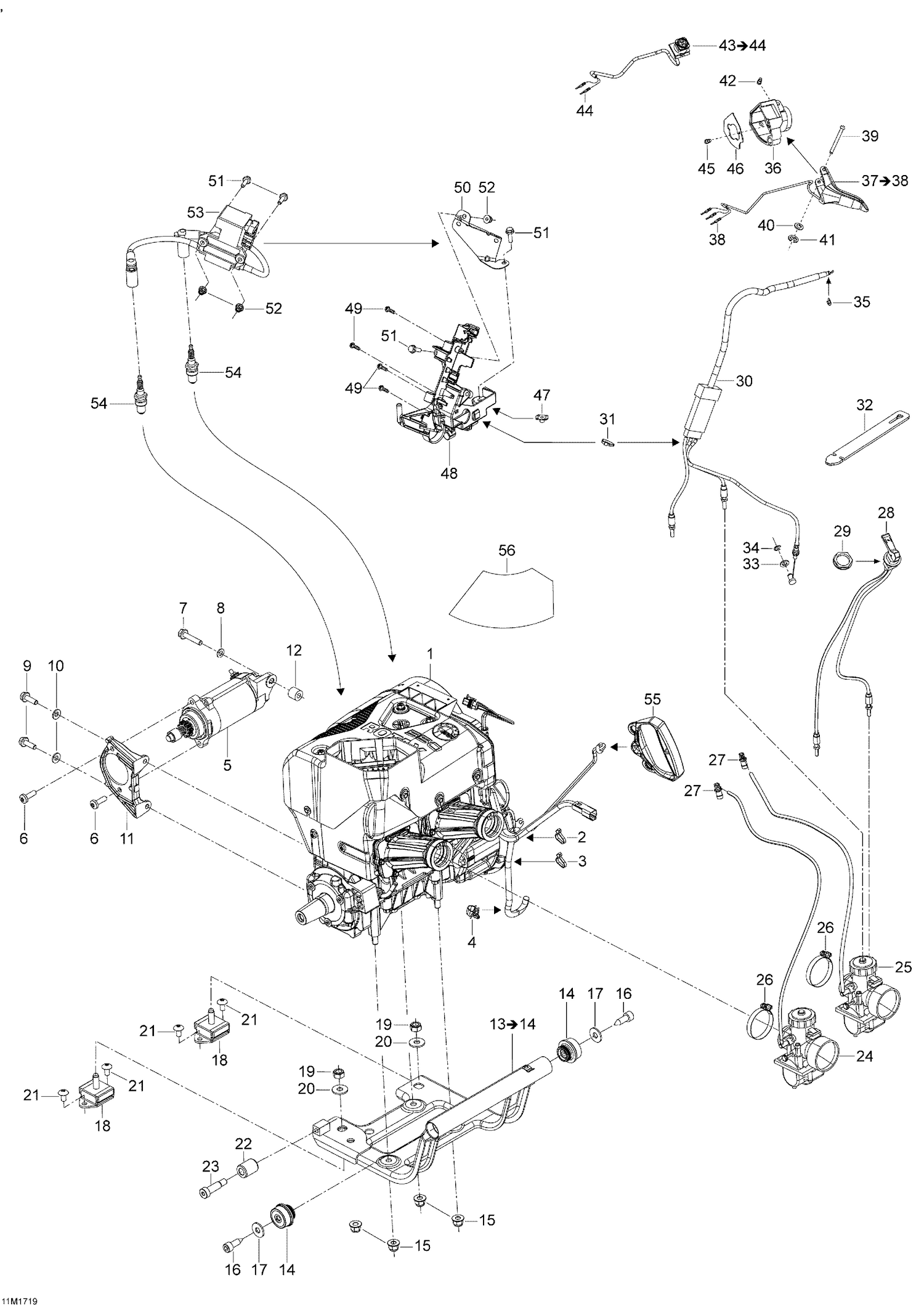

01- Engine And Engine Support
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Engine 550 (LCR) |
| 2 | 414115200 | Tie-Rap 180 mm |
| 3 | 414115200 | Tie-Rap 180 mm |
| 4 | 515176795 | Tie Rap Mount (screwable) |
| 5 | 515178473 | Starter This part replaces 515178187. |
| 6 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 7 | 207584544 | Hex. Flange Screw M8 X 45, Scotch Grip |
| 8 | 250200008 | Flat Washer With Teflon 8 mm |
| 9 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 10 | 234281474 | Conical Spring Washer M8 |
| 11 | 512060656 | Support |
| 12 | 515176597 | Spacer |
| 14 | 512059691 | Rubber Mount |
| 15 | 233201414 | Hex. Flange Elastic Nut M10 |
| 16 | 250000094 | Screw M10 X 30 |
| 17 | 250200014 | Flat Washer M10 |
| 18 | 512060564 | Rubber Mount |
| 19 | 232500416 | Elastic Stop Nut M10 |
| 20 | 250200014 | Flat Washer M10 |
| 21 | 250000746 | Torx Truss Screw M8 X 16 |
| 22 | 512060395 | Stopper |
| 23 | 250000463 | Socket Head Screw, Scotch Grip |
| 24 | 403138814 | Carburetor VM30-219, PTO |
| 25 | 403138813 | Carburetor VM30-218, MAG |
| 26 | 512059834 | Gemi Clamp |
| 27 | 414814100 | Male Connector |
| 28 | 512060676 | Choke Cable |
| 29 | 512060671 | Plastic Nut |
| 30 | 512060885 | Throttle Cable |
| 31 | 414115200 | Tie-Rap 180 mm |
| 32 | 293850117 | Rubber Strap |
| 33 | 234081100 | Flat Washer 8 mm, Nylon |
| 34 | 414753500 | Circlip |
| 35 | 414274500 | Circlip |
| 36 | 512060603 | Throttle Housing |
| 38 | 515175232 | Male Terminal |
| 39 | 414438700 | Lever Pin |
| 40 | 234051600 | Flat Washer M5, Stainless |
| 41 | 293370050 | Circlip |
| 42 | 414440800 | Socket Set Screw M8 X 10 |
| 44 | 515175232 | Male Terminal |
| 45 | 250000756 | Torx Truss Screw M2 X 12 |
| 46 | 512060390 | Plate |
| 47 | 293100003 | Nut Welded, M6 |
| 48 | 512060924 | Coils Support |
| 49 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 50 | 512060460 | Coils Support |
| 51 | 207662044 | Hex. Flange Screw M6 X 20 |
| 52 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 53 | 512060324 | Calibrated Module |
| 54 | 512059552 | Spark Plug NGK BR9ECS-5 |
| 55 | 512060136 | Starter Grip |
