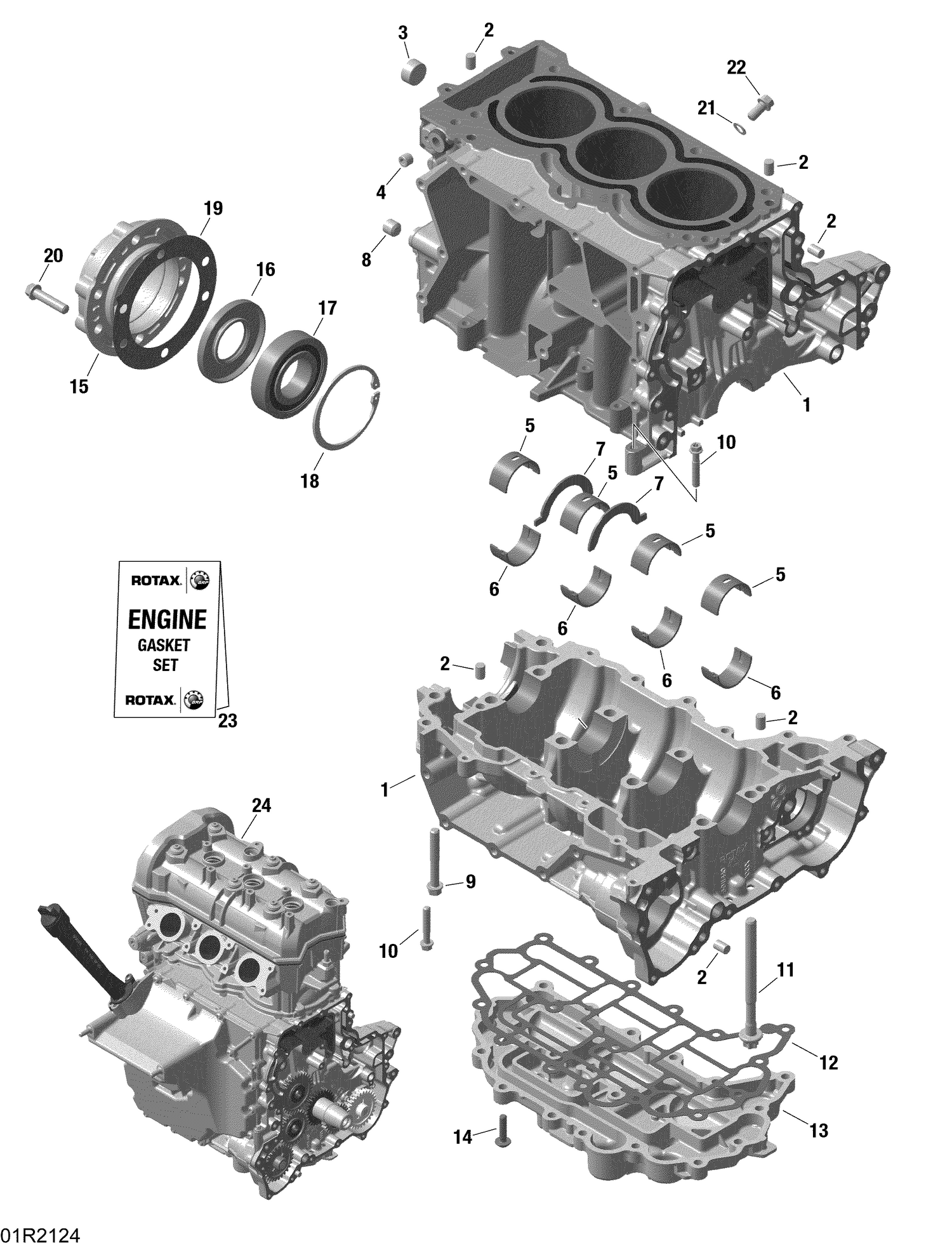

01- Rotax - Crankcase
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420641317 | Plug Screw M20 X 1.5 |
| 4 | 420641323 | Plug Screw M10 X 1 |
| 5 | 420933180 | Cushion |
| 6 | 420933185 | Cushion |
| 7 | 420933140 | Ring Half |
| 8 | 420840500 | Threaded Pin |
| 9 | 420641213 | Torx Flange Screw M8 X 55 |
| 10 | 420440274 | Torx Flange Screw M6 X 35 |
| 11 | 420940945 | Torx Flange Screw M9 X 113 |
| 12 | 420431820 | Gasket |
| 13 | 420912380 | Oil Sump This part replaces 420911500. |
| 14 | 420841549 | Torx Flange Screw M6 X 25 |
| 16 | 420431402 | Oil Seal |
| 17 | 420832232 | Ball Bearing |
| 18 | 420845790 | Retaining Ring |
| 19 | 420450080 | PTO Cover Gasket |
| 20 | 420641188 | Torx Flange Screw M8 X 35 |
| 21 | 420950141 | Sealing Ring |
| 22 | 420440852 | Torx Flange Screw M8 X 16 |
| 23 | 420686236 | Engine Gasket Set |
