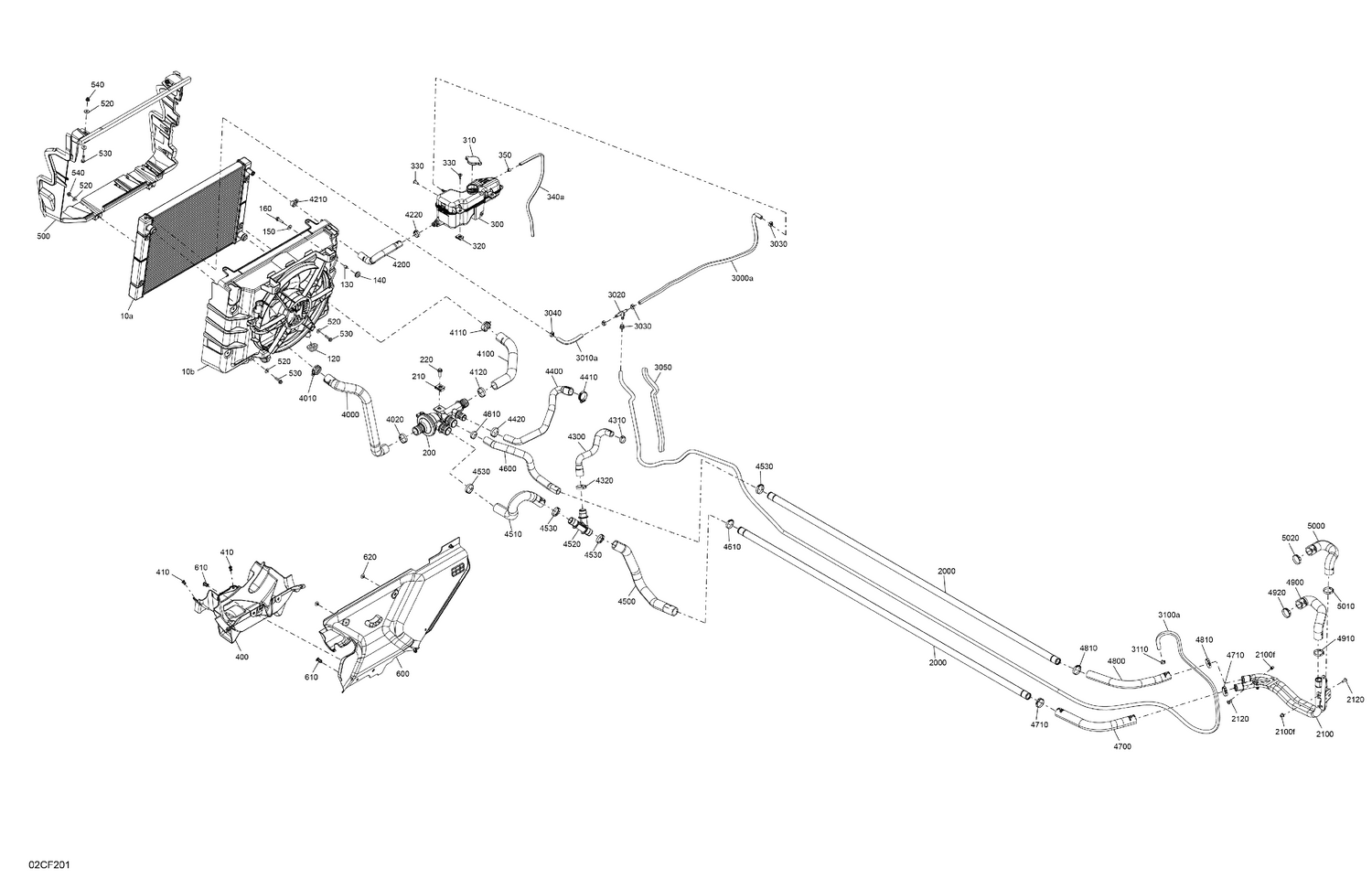

02- Engine - Cooling
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 709201485 | Radiator |
| 10b | 709201490 | Cooling Fan Ass'y |
| 120 | 709201320 | Rubber Stopper |
| 130 | 293900105 | Bushing |
| 140 | 293720130 | Overmolded Grommet |
| 150 | 234062670 | Stainless Steel Flat Washer |
| 160 | 207662554 | Hex. Flange Screw M6 X 25 |
| 210 | 250100208 | Panel Nut M6 X 1.0 |
| 220 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 300 | 709201340 | Coolant Tank |
| 310 | 709200207 | Radiator Pressure Cap |
| 320 | 250100208 | Panel Nut M6 X 1.0 |
| 330 | 250000721 | Torx Truss Screw M6 X 16 |
| 340a | 219704389 | Polyurethane Hose 4000MM Long |
| 350 | 414554800 | Spring Clamp |
| 400 | 709201311 | Air Deflector |
| 410 | 293150230 | Tuflok Plastic Rivet |
| 500 | 709201321 | Front Radiator Deflector |
| 520 | 234062670 | Stainless Steel Flat Washer |
| 530 | 207662554 | Hex. Flange Screw M6 X 25 |
| 540 | 233261494 | Hex. Flange Elastic Nut M6 |
| 600 | 709201327 | Rear Air Deflector |
| 610 | 293150230 | Tuflok Plastic Rivet |
| 620 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 2000 | 709200658 | Heater Tubing |
| 2100f | 293450275 | Insert |
| 2120 | 250000721 | Torx Truss Screw M6 X 16 |
| 3000a | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 3010a | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 3020 | 293710059 | Y-Fitting This part replaces 293710222. |
| 3030 | 293650047 | Crimp Clamp, 15.3-706R |
| 3040 | 293650042 | Oetiker Clamp |
| 3050 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 3100a | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 3110 | 293650047 | Crimp Clamp, 15.3-706R |
| 4000 | 709201305 | Radiator Hose In |
| 4010 | 293650166 | Norma Spring Clamp |
| 4020 | 293650332 | Crimp Clamp |
| 4100 | 709201306 | Radiator Hose Out |
| 4110 | 293650166 | Norma Spring Clamp |
| 4120 | 293650332 | Crimp Clamp |
| 4200 | 709201299 | Coolant Tank Hose |
| 4210 | 293650243 | Norma Spring Clamp |
| 4220 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 4300 | 709201308 | Thermostat Hose HVAC |
| 4310 | 293650284 | Gear Clamp |
| 4320 | 293650332 | Crimp Clamp |
| 4400 | 709201309 | Thermostat Hose HVAC |
| 4410 | 293650098 | Norma Gear Clamp |
| 4420 | 293650165 | Oetiker Gear Clamp |
| 4500 | 709201304 | Thermostat Hose IN |
| 4510 | 709201514 | Thermostat Hose |
| 4520 | 709201588 | Y Hose Fitting |
| 4530 | 293650332 | Crimp Clamp |
| 4600 | 709201307 | Thermostat Hose Out |
| 4610 | 293650332 | Crimp Clamp |
| 4700 | 709201298 | Engine Hose Out |
| 4710 | 293650332 | Crimp Clamp |
| 4800 | 709201301 | Engine Hose In |
| 4810 | 293650332 | Crimp Clamp |
| 4900 | 709201551 | Engine Hose |
| 4910 | 293650332 | Crimp Clamp |
| 4920 | 293650333 | Crimp Clamp |
| 5000 | 709201423 | Engine Hose |
| 5010 | 293650332 | Crimp Clamp |
