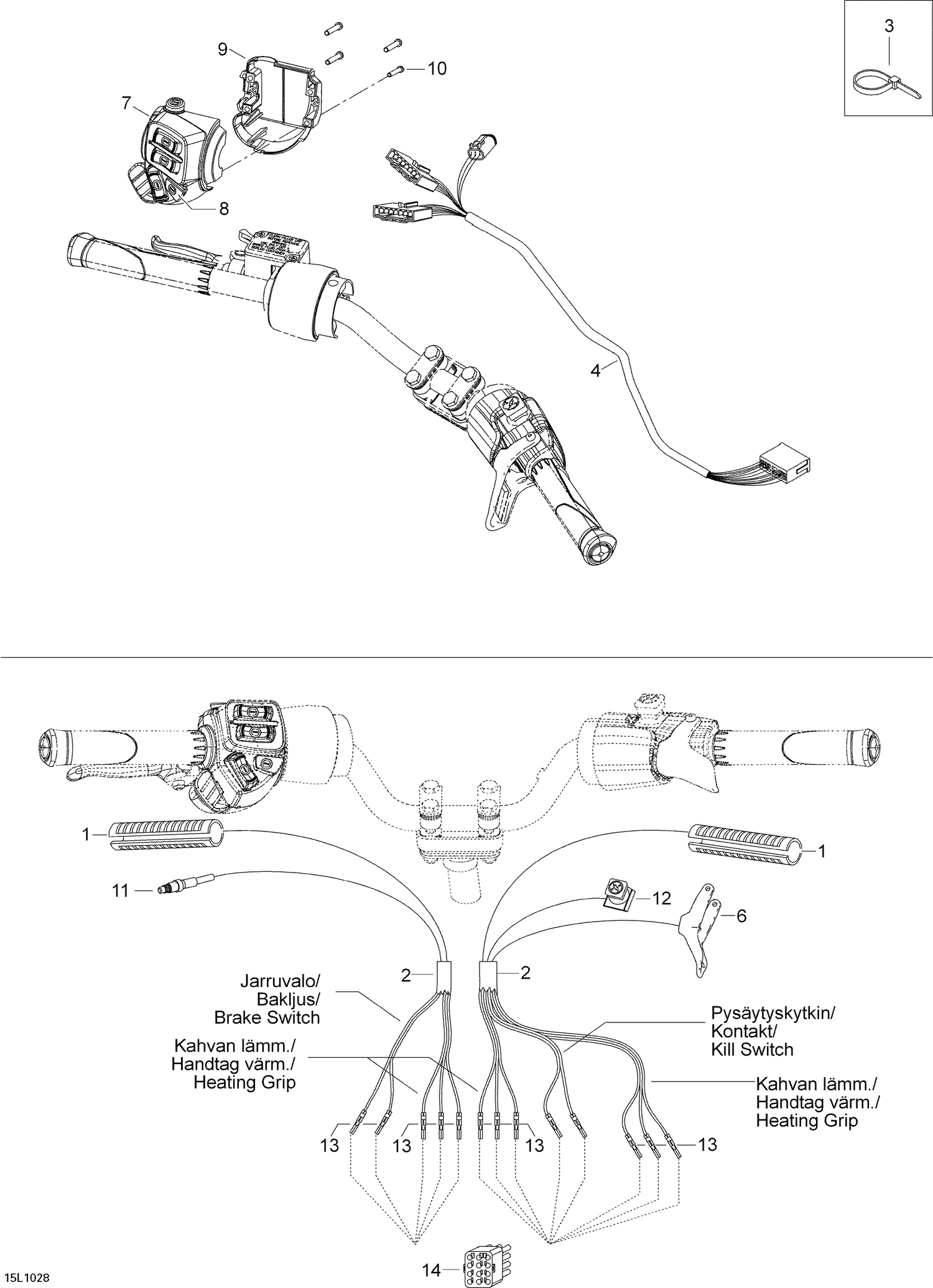

10- Steering Wiring Harness
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515176139 | HEATER ELEMENT - Call your local BRP dealership |
| 2 | M39023 | Housing |
| 3 | M27100 | Tie Rap 290 Mm |
| 4 | 605353266 | STEERING HARNESS - Call your local BRP dealership |
| 6 | 512059348 | Handle Ass'y |
| 7 | 515176062 | LH Switch Housing |
| 8 | 515176088 | Start/RER Button |
| 9 | 515175926 | Switch Housing Plate |
| 10 | Not | Available As Spare Part - Screw 3.5X25 |
| 11 | 507032366 | Microswitch |
| 12 | 515177362 | Emergency Stop Switch This part replaces 515176725. |
| 13 | 605642628 | CONNECTOR - Call your local BRP dealership |
