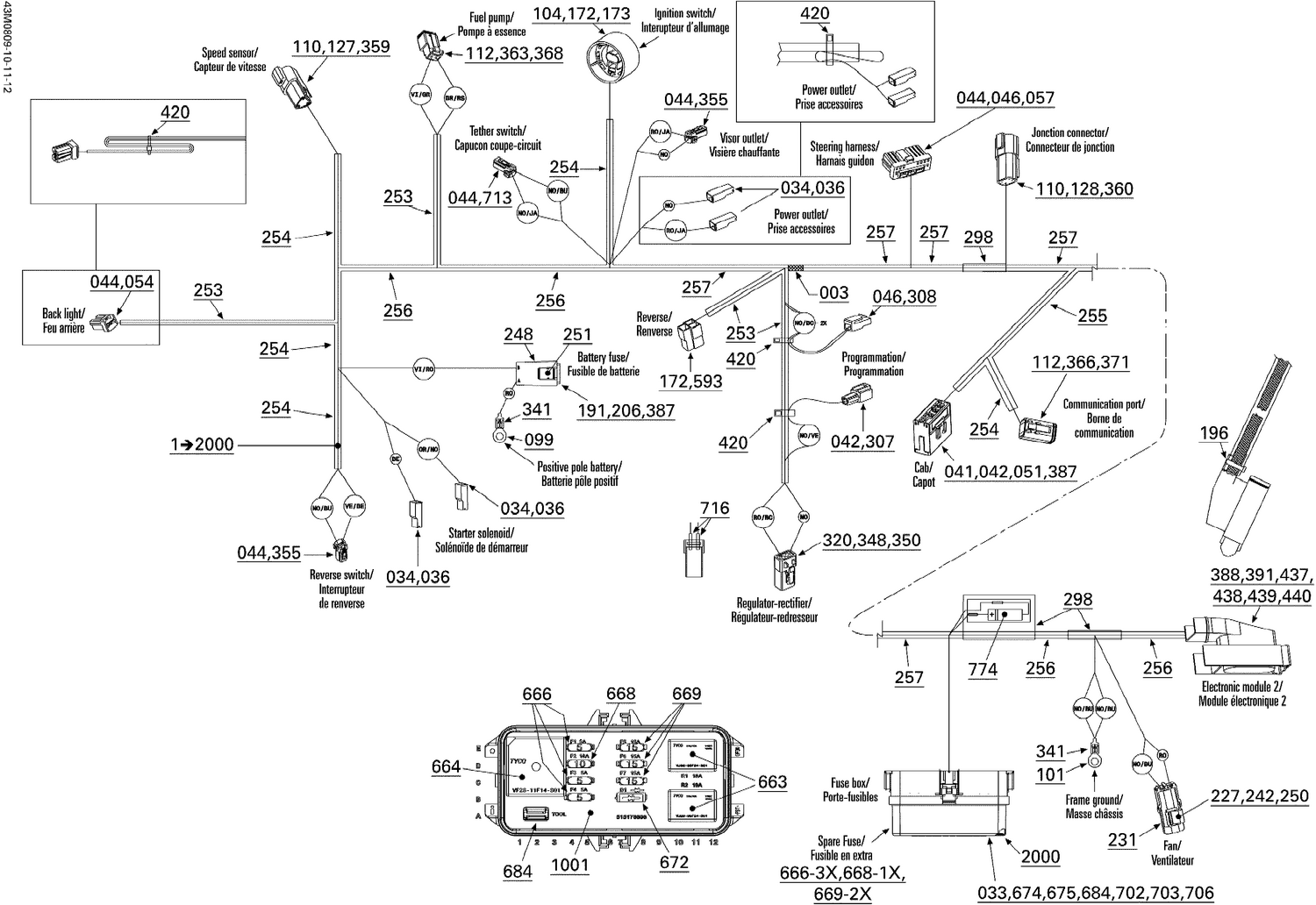

| Ref | Part Number | Description |
|---|
| 3 |
Not |
Available As Spare Part - Blue, Vinyl Tape Coding |
| 33 |
278000999 |
Wire Seal |
| 34 |
409010100 |
Female Terminal |
| 36 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 41 |
515175232 |
Male Terminal |
| 42 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 44 |
515175231 |
Female Terminal |
| 46 |
515175282 |
Female Terminal |
| 51 |
515175352 |
MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 54 |
515175495 |
Female Housing, 3 Circuits |
| 57 |
515175350 |
Female Terminal Housing, 13 Circuits |
| 99 |
278000992 |
Open Barrel |
| 100 |
409012500 |
Open Barrel |
| 104 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 110 |
278000631 |
Male Terminal |
| 112 |
278000632 |
Female Terminal |
| 127 |
409207600 |
Male Lock, 3 Circuits |
| 128 |
278000636 |
Female Wedge, 4 Circuits |
| 172 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 173 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 191 |
410917200 |
Fuse, 30 Amperes |
| 196 |
293750002 |
Tie Wrap 142 mm |
| 206 |
409004200 |
Female Terminal |
| 227 |
409004300 |
Male Terminal |
| 231 |
278000217 |
Female Housing, 2 Circuits |
| 242 |
278000218 |
Wire Seal |
| 248 |
409004000 |
Fuse Holder |
| 250 |
409205600 |
CLIP - Call your local BRP dealership |
| 251 |
409014200 |
CLIP - Call your local BRP dealership |
| 253 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 254 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 255 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 256 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 257 |
219704398 |
Was 409901600 Tubing 19mm |
| 258 |
219704407 |
Tubing 10 MM 1000MM Long |
| 298 |
Not |
Available As Spare Part - Vinyl Tape 3/4" |
| 307 |
515175509 |
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 308 |
515175510 |
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 320 |
515175567 |
Female Terminal |
| 341 |
Not |
Available As Spare Part - Shrink Tubing |
| 348 |
278001673 |
Female Terminal Housing, 2 Circuits |
| 350 |
278001671 |
Female Lock, 2 Circuits |
| 355 |
515175658 |
Female Housing, 2 Circuits |
| 359 |
515175666 |
Male Housing |
| 360 |
Not |
Available As Spare Part - Female Housing, 4 Circuits |
| 363 |
515175670 |
Female Terminal Housing, 2 Circuits |
| 366 |
515175673 |
Male Housing, 6 Circuits |
| 368 |
515175675 |
Female Lock, 2 Circuits |
| 371 |
515175678 |
Male Wedge, 6 Circuits |
| 387 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 388 |
278001750 |
FEMALE TERMINAL - Call your local BRP dealership |
| 391 |
278001751 |
MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership |
| 420 |
414115200 |
Tie-Rap 180 mm |
| 437 |
515175886 |
SEAL - Call your local BRP dealership |
| 438 |
515175883 |
Latch |
| 439 |
515175884 |
LOCK - Call your local BRP dealership |
| 440 |
515175885 |
COVER - Call your local BRP dealership |
| 593 |
515176069 |
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 663 |
515176774 |
Relay, 30 AMP This part replaces 710000739. |
| 664 |
515176775 |
Relay, 50 AMP This part replaces 710000740. |
| 666 |
710000742 |
Little Fuse, 5 Amperes |
| 668 |
710000744 |
Little Fuse, 10 Amperes |
| 669 |
710000745 |
Little Fuse, 15 Ampere |
| 672 |
710000748 |
Diode |
| 674 |
710001026 |
Fuse Cover This part replaces 710000659. |
| 675 |
415129856 |
Fuse Box Base Ass´y This part replaces 710000660. |
| 684 |
710000781 |
Fuse Puller |
| 702 |
710000836 |
Female Terminal |
| 703 |
710000837 |
Female Terminal |
| 706 |
710000840 |
Cap |
| 713 |
515176296 |
Female Terminal Housing, 2 Circuits |
| 774 |
515176483 |
CAPACITOR - Call your local BRP dealership |
| 1001 |
515176606 |
FUSE BOX DECAL - Call your local BRP dealership |
