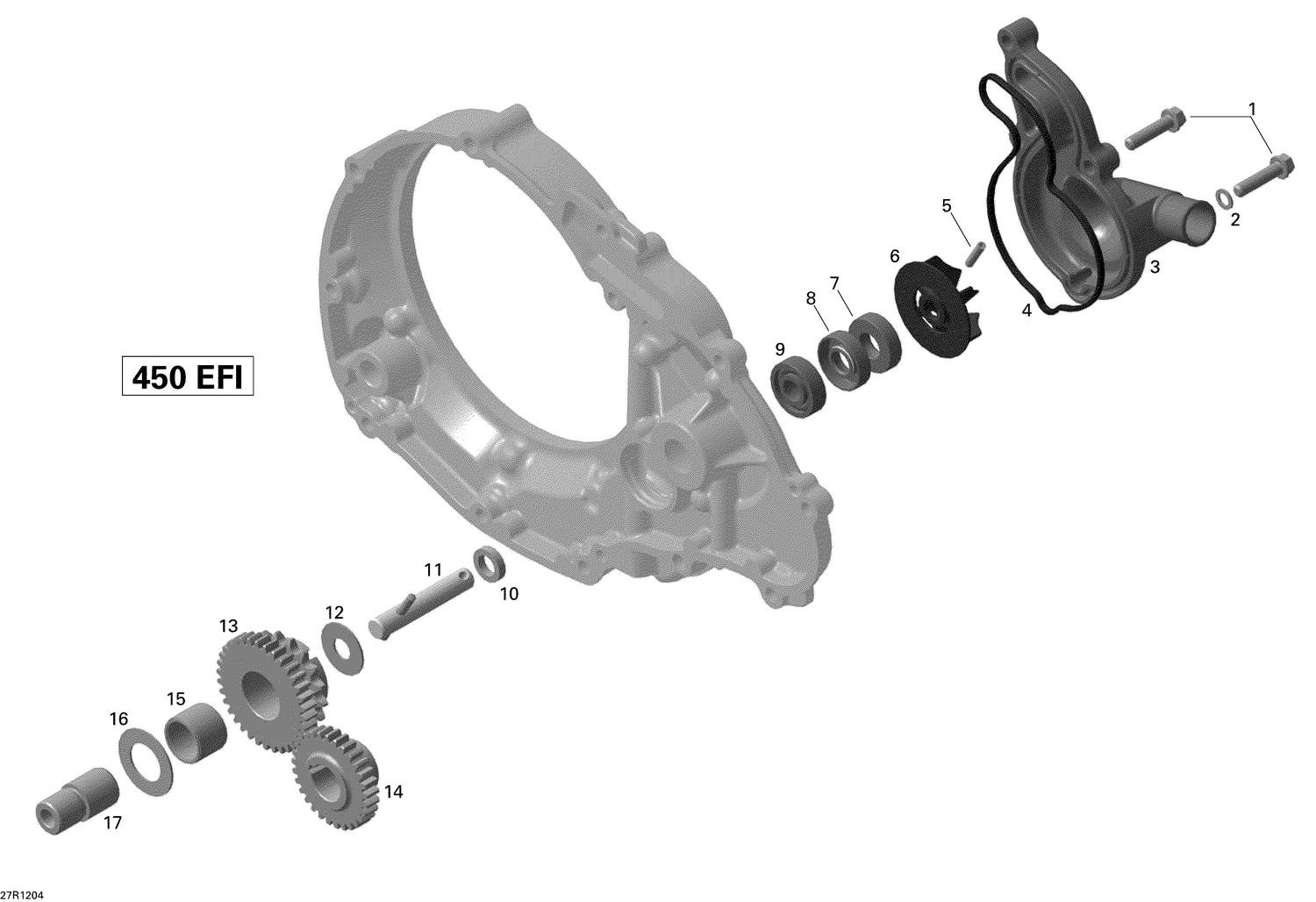

01- Engine Cooling
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420641238 | Torx Flange Screw M6 X 25 |
| 2 | 420230415 | Seal Washer |
| 3 | 420611670 | Water Pump Cover |
| 4 | 420431030 | Gasket |
| 5 | 420229280 | Spring Pin |
| 6 | 420222272 | Water Pump Impeller |
| 7 | 420230197 | Oil Seal |
| 8 | 420230195 | Oil Seal This part replaces 420230196. |
| 9 | 420232100 | Ball Bearing |
| 10 | 420229880 | Distance Sleeve |
| 11 | 420220171 | Waterpump Shaft |
| 12 | 420227680 | Thrust Washer |
| 13 | 420434705 | INTERMEDIATE GEAR - Call your local BRP dealership |
| 14 | 420434721 | CONTROL GEAR, 29 TEETH - Call your local BRP dealership |
| 15 | 420832990 | NEEDLE BEARING - Call your local BRP dealership |
| 16 | 420627292 | THRUST WASHER - Call your local BRP dealership |
| 17 | 420229135 | BEARING PIN - Call your local BRP dealership |
