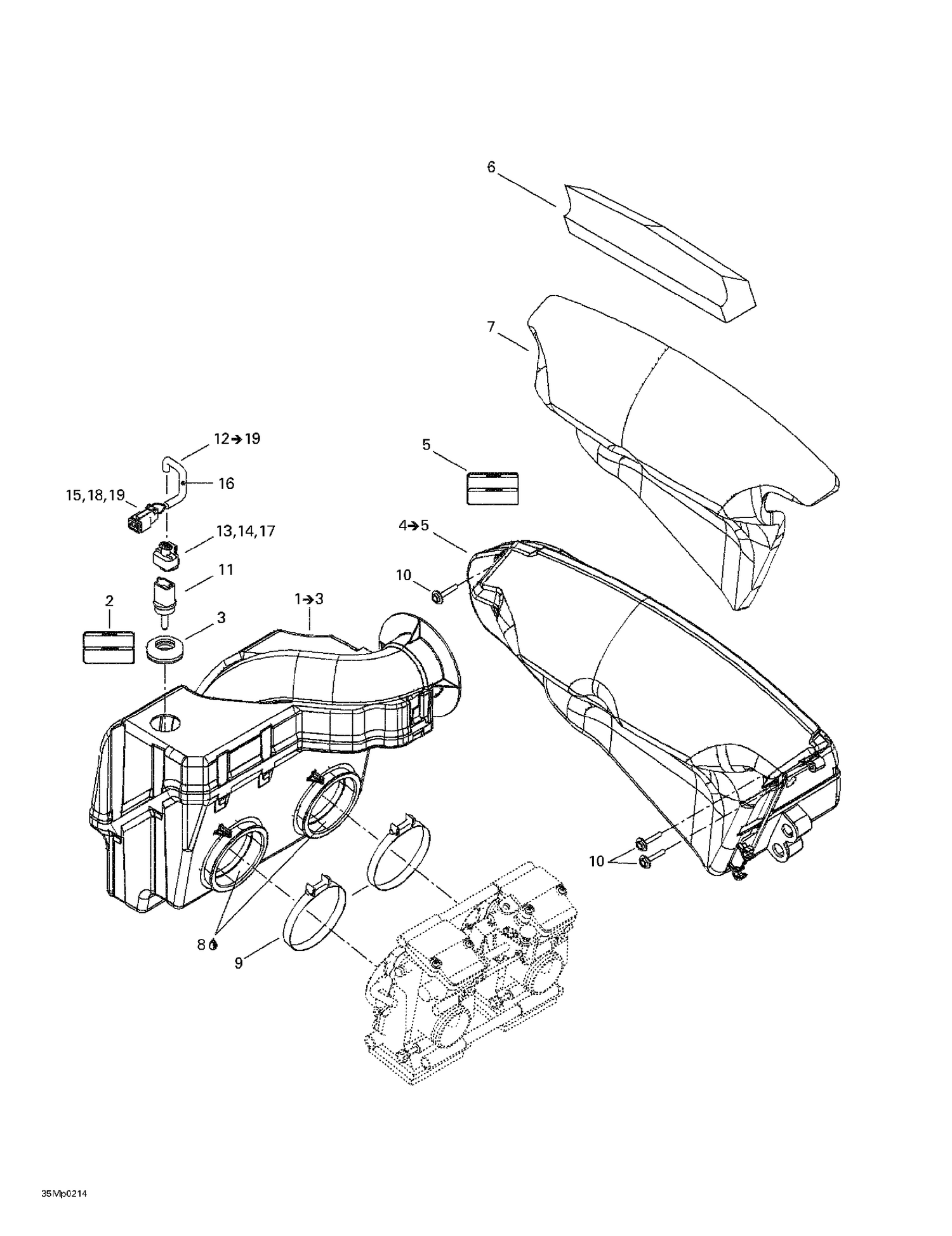

| Ref | Part Number | Description |
|---|
| 2 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191. |
| 3 |
570065500 |
GROMMET - Call your local BRP dealership |
| 5 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191. |
| 6 |
508000394 |
Air Filter This part replaces 508000147. |
| 7 |
508000282 |
Lower Foam |
| 8 |
779123 |
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200. |
| 9 |
508000346 |
Gemi Clamp This part replaces 508000162. |
| 10 |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 11 |
270600000 |
AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 13 |
278000998 |
Female Terminal |
| 14 |
278000999 |
Wire Seal |
| 15 |
278000632 |
Female Terminal |
| 16 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 17 |
515175588 |
FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership |
| 18 |
515175670 |
Female Terminal Housing, 2 Circuits |
