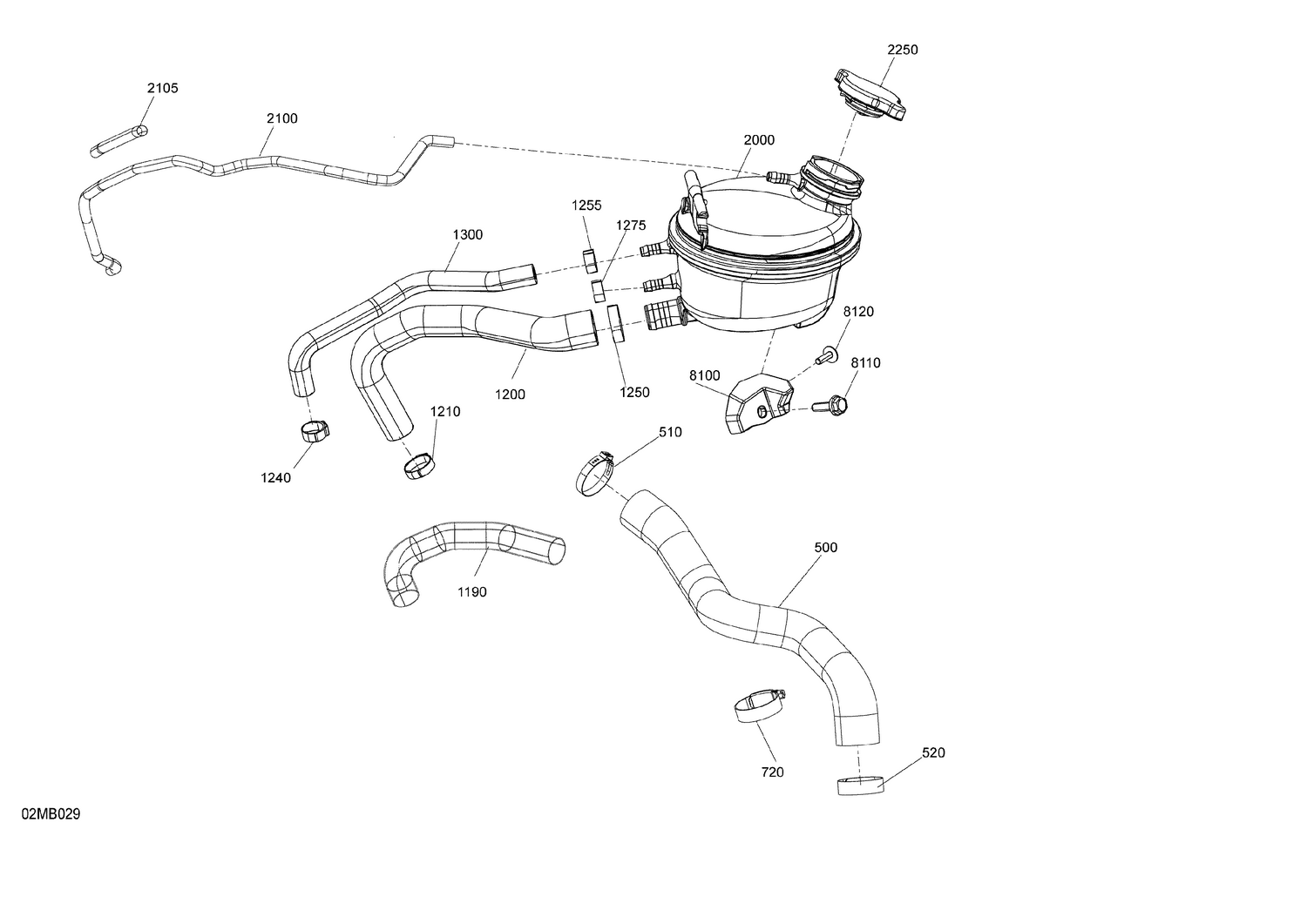

02- Engine - Cooling
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509001413 | Thermostat Hose This part replaces 509001274. |
| 510 | 293650254 | Oetiker Gear Clamp |
| 520 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 720 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1190 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 1200 | 509001164 | Hose |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1240 | 293650046 | Oetiker Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 1255 | 293650046 | Oetiker Clamp |
| 1275 | 293650046 | Oetiker Clamp |
| 1300 | 509001457 | Hose This part replaces 509001166. |
| 2000 | 509001260 | Coolant Tank |
| 2100 | 219704360 | Hose 6 Mm 15000Mm Long |
| 2105 | 503195447 | Protector Tube |
| 2250 | 509000180 | Radiator Pressure Cap |
| 8100 | 509001259 | Support |
| 8110 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
