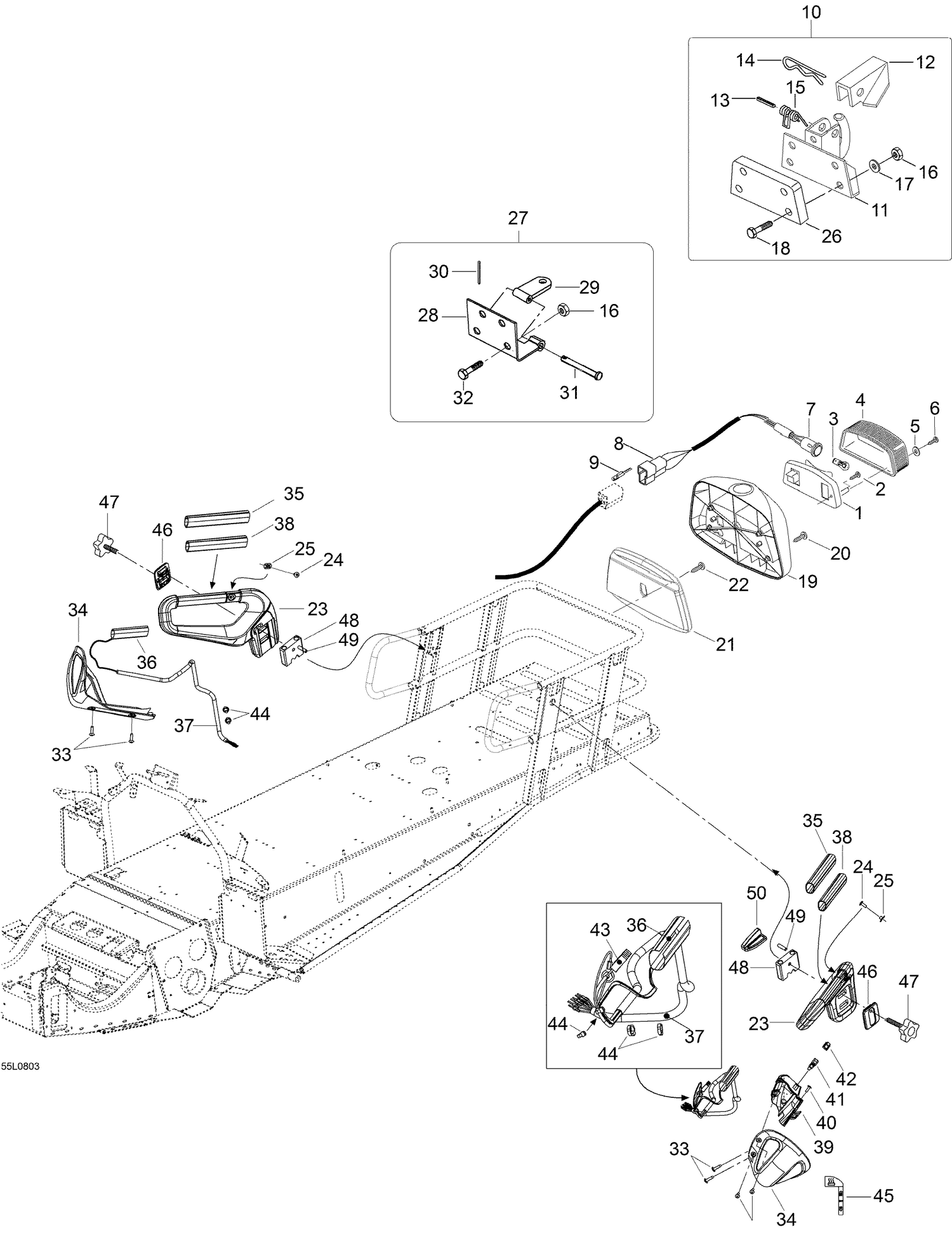

| Ref | Part Number | Description |
|---|
| 1 |
515175397 |
LAMP HOUSING - Call your local BRP dealership |
| 2 |
40207 |
Plate Screw Zn 4.8x45 DIN 7981(1=10pcs) - Call your local BRP dealership |
| 3 |
520000758 |
Bulb This part replaces 410504100. |
| 4 |
414513700 |
Lens |
| 5 |
414516400 |
Washer - Call your local BRP dealership |
| 6 |
209632540 |
Phillips Tapping Screw M3.9 X 25 |
| 7 |
515175852 |
Adapter |
| 8 |
Not |
Available As Spare Part - Female terminal housing (3-circuits) |
| 9 |
605642629 |
Connector AMP 926882-3 - Call your local BRP dealership |
| 11 |
5344156 |
HITCH ASS'Y - Call your local BRP dealership |
| 12 |
5440767 |
Lock |
| 13 |
41012 |
Pin |
| 14 |
41029 |
Hair pin |
| 15 |
545693 |
SPRING - Call your local BRP dealership |
| 16 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 17 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 18 |
40009 |
Hex. screw M8 x 50 |
| 19 |
605251392 |
MOLD TAIL LAMP - Call your local BRP dealership |
| 20 |
40206 |
Plate Screw Zn 4.8x25 DIN 7981(1=10pcs) - Call your local BRP dealership |
| 21 |
605251963 |
BASE - Call your local BRP dealership |
| 22 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 23 |
510004768 |
COURROIE DE SIEGE - Call your local BRP dealership |
| 23 |
510005865 |
RH HANDLE - Call your local BRP dealership This part replaces 510004367. |
| 24 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 25 |
293100003 |
Nut |
| 26 |
605351510 |
SPACER - Call your local BRP dealership |
| 27 |
520001398 |
Hitch Ass'Y This part replaces 5344152. |
| 28 |
5344151 |
Plate |
| 29 |
548745 |
TONGUE WELD - Call your local BRP dealership |
| 30 |
560309200 |
PIN-RETAINER - Call your local BRP dealership |
| 31 |
41031 |
Pin |
| 32 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 33 |
250000961 |
Screw 25MM This part replaces 250000199. |
| 34 |
510004415 |
RH Deflector |
| 34 |
510004416 |
LH Deflector |
| 35 |
510004449 |
Handle Grip |
| 36 |
515176393 |
Heater |
| 37 |
515175506 |
TUBING - Call your local BRP dealership |
| 38 |
510004709 |
HANDLE REINFORFORCEMENT - Call your local BRP dealership |
| 39 |
510004566 |
Switch Housing |
| 40 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 41 |
510004413 |
Rocker Switch |
| 42 |
510004414 |
Protector Switch |
| 43 |
515176241 |
LH HANDLE HARNESS - Call your local BRP dealership |
| 44 |
414115200 |
Tie-Rap 180 mm |
| 45 |
516002835 |
HANDLE HEATER DECAL - Call your local BRP dealership |
| 46 |
510006602 |
Passenger Handle Trim This part replaces 510004405. |
| 47 |
605640015 |
HANDLE M8 X 35 - Call your local BRP dealership |
| 48 |
605454565 |
Handle Support - Call your local BRP dealership |
| 49 |
41007 |
Spring Pin 5 x 24 DIN 1481(1=10pcs) - Call your local BRP dealership |
