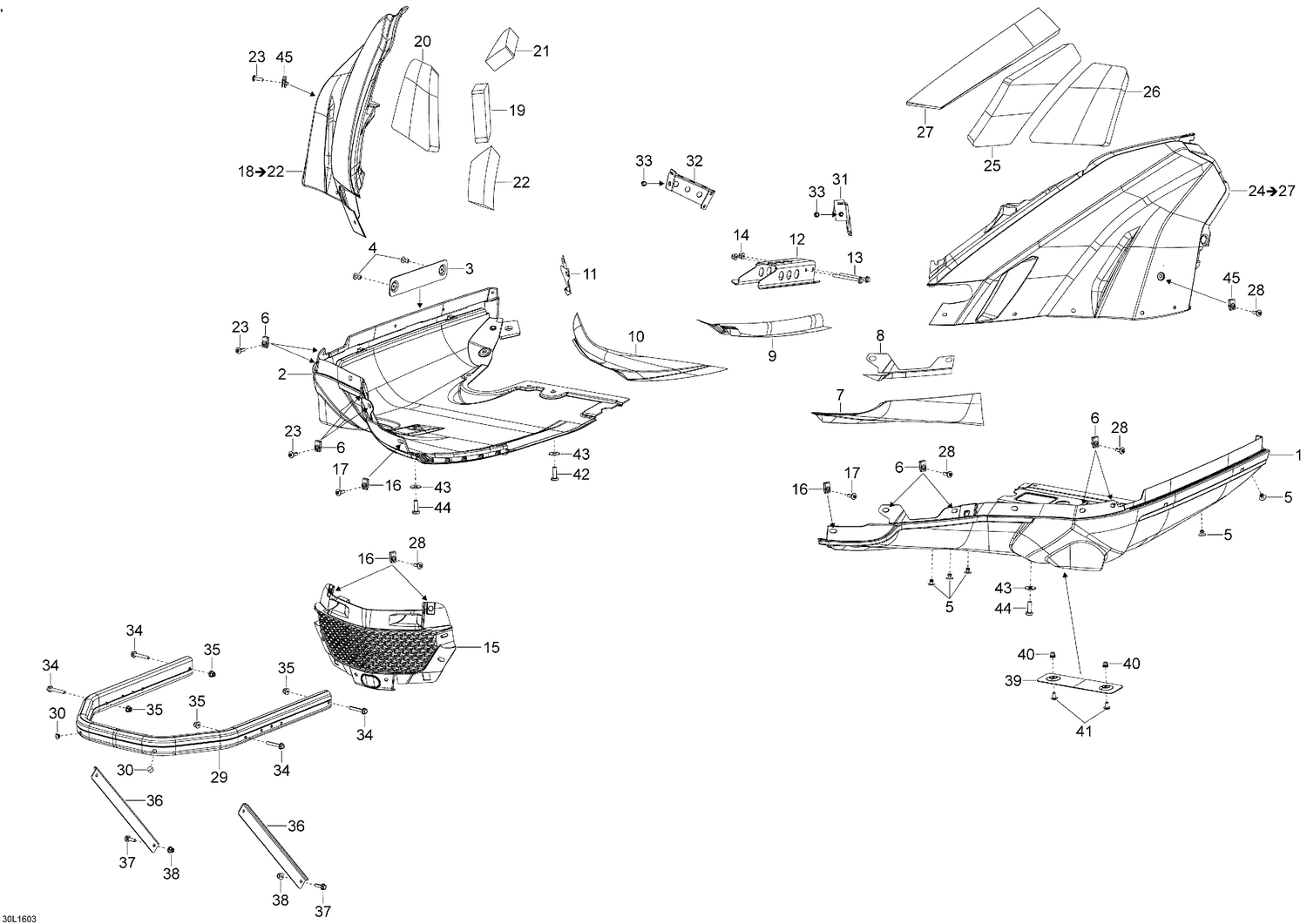

09- Bottom Pan
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502007836 | LH Lower Bottom Pan This part replaces 502007447. |
| 2 | 502007837 | RH Lower Bottom Pan This part replaces 502007446. |
| 3 | 502007255 | Heat Insulation Plate |
| 4 | 293150211 | Rivet |
| 5 | 293150104 | Pop Rivet 3/16 |
| 6 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 7 | 508000918 | Heat Shield This part replaces 508000832. |
| 8 | 508000919 | Heat Shield This part replaces 508000835. |
| 9 | 508000920 | Heat Shield This part replaces 508000837. |
| 10 | 508000921 | Heat Shield This part replaces 508000833. |
| 11 | 508000922 | Heat Shield This part replaces 508000836. |
| 12 | 502007635 | SUPPORT - Call your local BRP dealership |
| 13 | 207667056 | Hex. Flange Screw M6 x 70 |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 15 | 502007140 | Front Grill |
| 16 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 17 | 250000722 | Torx Truss Screw M6 x 20 |
| 19 | 502007133 | Insulator |
| 20 | 502007132 | Insulator |
| 21 | 502007008 | INSULATOR - Call your local BRP dealership |
| 22 | 502007009 | Insulator |
| 23 | 250000722 | Torx Truss Screw M6 x 20 |
| 25 | 502007088 | Insulator |
| 26 | 502007131 | Insulator |
| 27 | 502007185 | Insulator |
| 28 | 250000722 | Torx Truss Screw M6 x 20 |
| 29 | 502007470 | Clear Anod. Bumper |
| 30 | 293730047 | Black, Dart 8 mm |
| 31 | 502007535 | LH Bottom Pan Fastener |
| 32 | 502007536 | RH Bottom Pan Fastener |
| 33 | 605636003 | Clinch Nut M6 Hexsert |
| 34 | 207664044 | Hex. Flange Screw M6 X 40 |
| 35 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 36 | 502006927 | Bumper Support |
| 37 | 207662044 | Hex. Flange Screw M6 X 20 |
| 38 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 39 | 518328879 | Oil Plate |
| 40 | 605636003 | Clinch Nut M6 Hexsert |
| 41 | 250000722 | Torx Screw M6 x 20 |
| 42 | 250000752 | Torx Screw M8 x 25 |
| 43 | 234082410 | Flat Washer |
