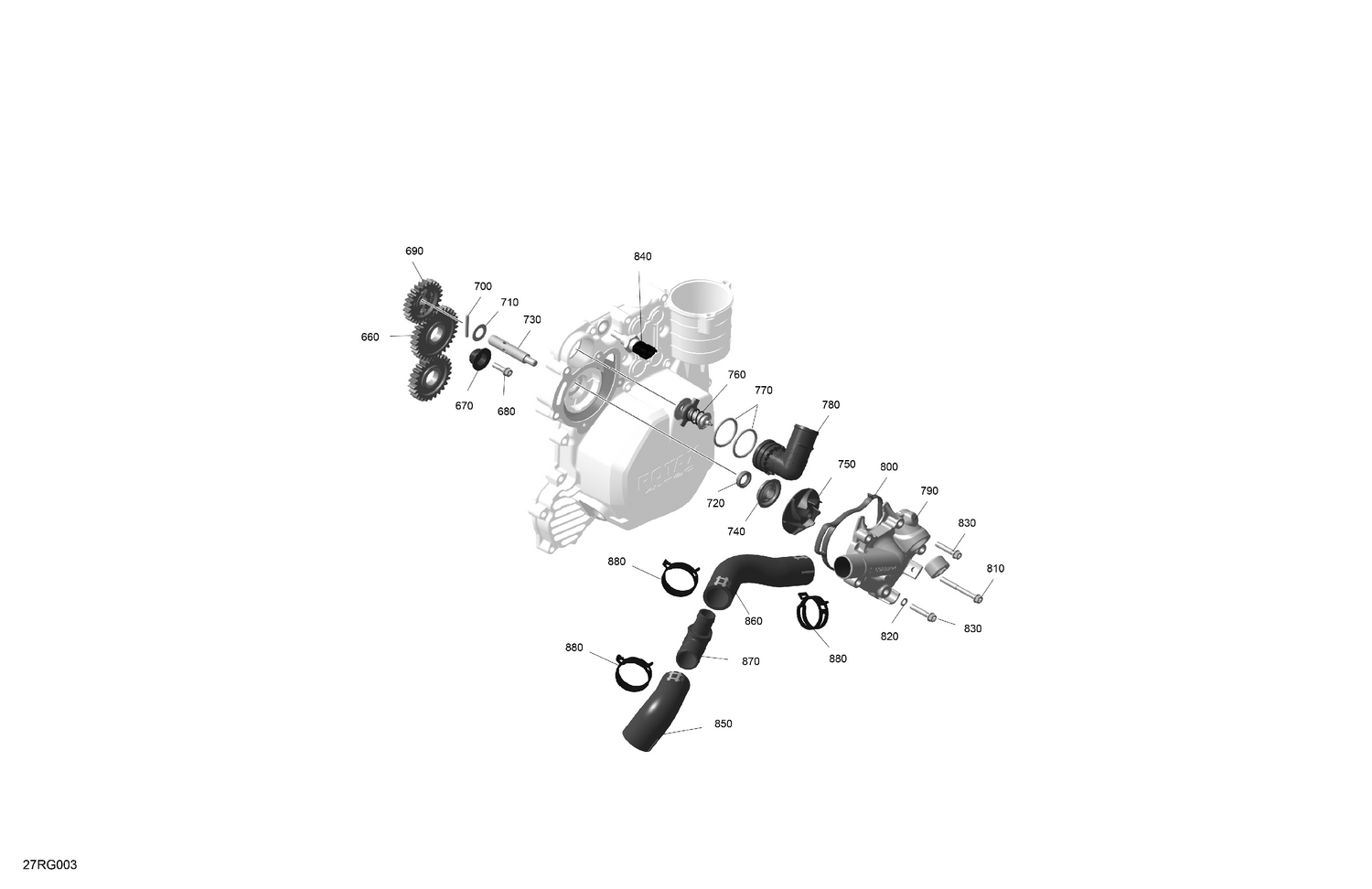

01- ROTAX - Engine Cooling
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 660 | 420835067 | Idle Gear, 31 Teeth |
| 670 | 420947394 | Spacer |
| 680 | 420440207 | Torx Flange Screw M6 X 20 |
| 690 | 420835230 | Water Pump Gear |
| 700 | 420232431 | Needle Pin |
| 710 | 420827261 | Thrust Washer |
| 720 | 420931802 | Oil Seal |
| 730 | 420820150 | Waterpump Shaft |
| 740 | 420850948 | Seal |
| 750 | 420822750 | Water Impeller |
| 760 | 420822657 | Thermostat |
| 770 | 420950896 | Water Pump Housing O-Ring |
| 780 | 420922158 | Thermostat cover |
| 790 | 420922307 | Water Pump Housing |
| 800 | 420431682 | Water Pump Housing Gasket |
| 810 | 420440702 | Torx Flange Screw M6 X 55 |
| 820 | 404146600 | Sealing Washer This part replaces 420227500. |
| 830 | 420440647 | Torx Flange Screw M6 X 30 |
| 840 | 278002895 | Temperature Sensor |
| 850 | 420201507 | Molded Hose |
| 860 | 420201504 | Molded Hose |
| 870 | 420660551 | T Fitting |
