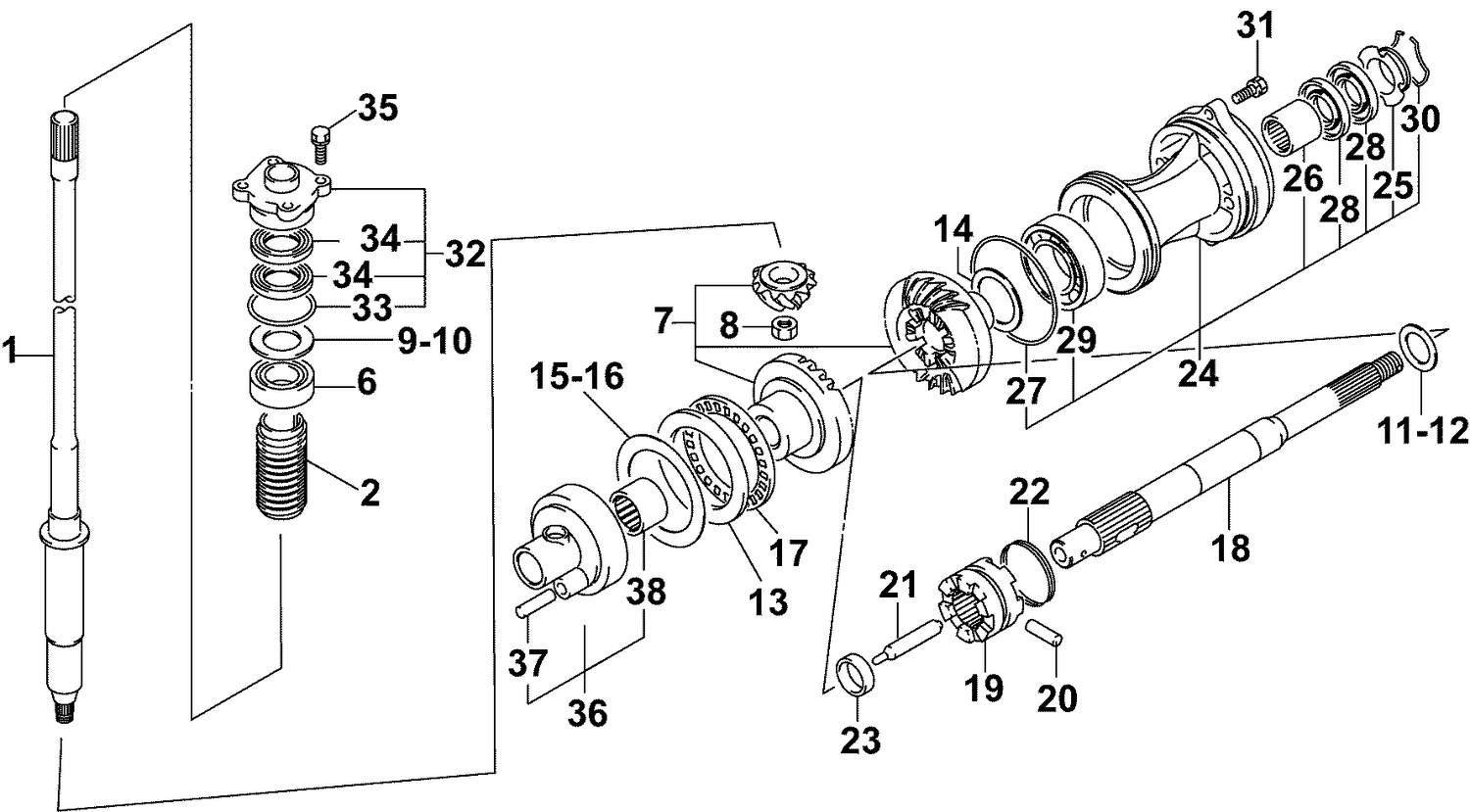

GEARS, STANDARD
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5032553 | COLLAR, DRIVE SHAFT |
| 8 | 5033966 | NUT |
| 9 | 5030975 | SHIM KIT, Driveshaft |
| 11 | 5033990 | SHIM SET, PROP SHAFT REV |
| 13 | 5033973 | WASHER, FWD (70X95X5.25mm) |
| 15 | 5033991 | SHIM SET |
| 17 | 5033986 | BEARING (70X95X4.0mm) Forward |
| 18 | 5033951 | SHAFT Assy, PROPELLER |
| 19 | 5033953 | SHIFTER, CLUTCH DOG |
| 20 | 5032584 | PIN |
| 21 | 5033855 | PIN, CONNECTOR |
| 22 | 5034145 | SPRING |
| 23 | 5033952 | SPACER |
| 24 | 5033946 | HOUSING, PROP SFT BRG |
| 31 | 5031216 | BOLT |
| 32 | 5033846 | HOUSING |
| 35 | 5030398 | BOLT |
| 36 | 5033948 | HOUSING, FWD GEAR BRG |
