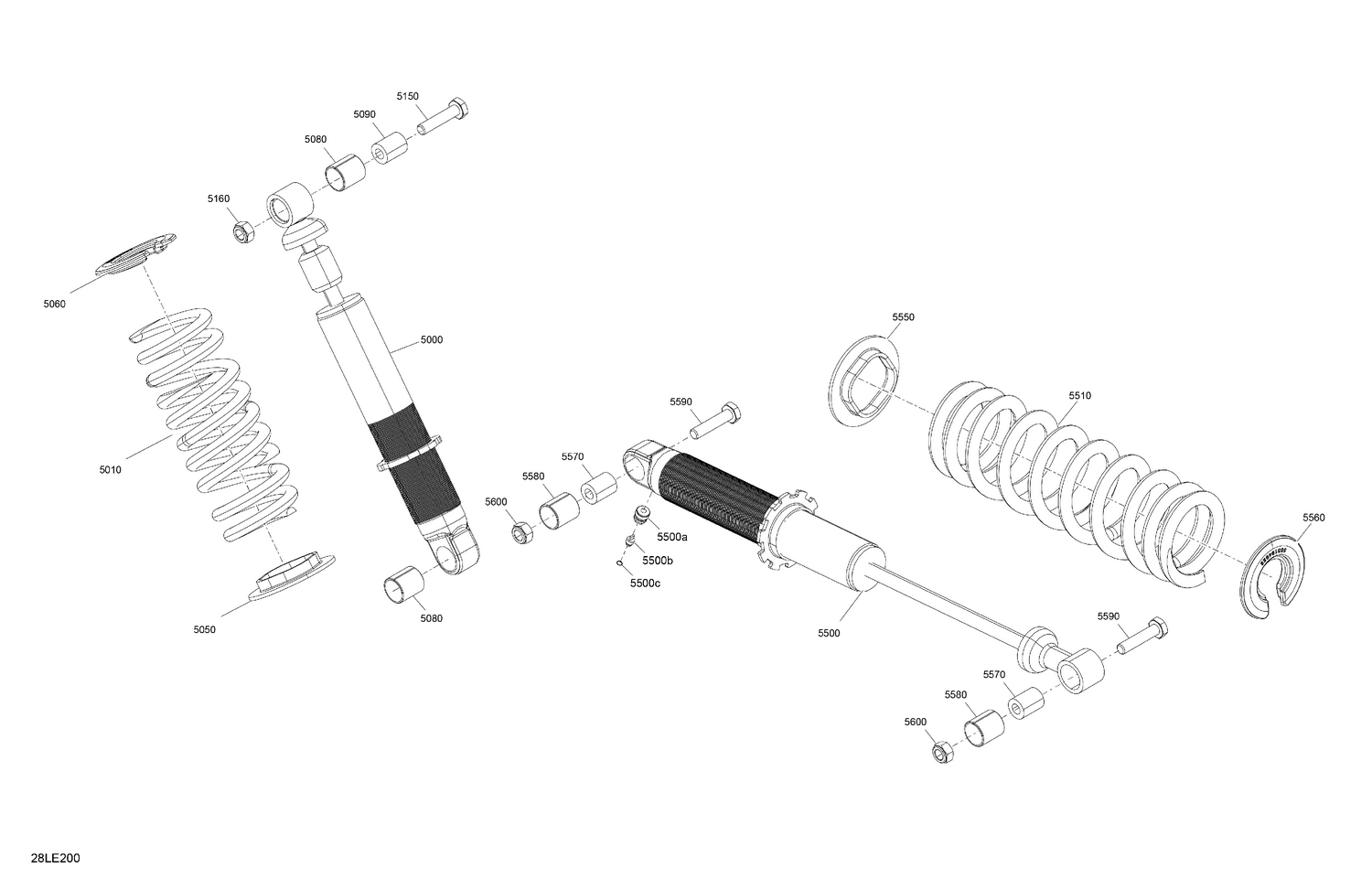

05- Suspension - Rear Shocks
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 5000 | 503196565 | Central Shock Absorber |
| 5010 | 503196420 | Spring 185 MM-40 N/MM |
| 5050 | 503195685 | Spacer |
| 5060 | 503196528 | Stopper Spring |
| 5080 | 503195134 | Glide Bearing |
| 5090 | 5446652 | Bushing |
| 5150 | 207004544 | Hex. Screw M10 X 45 |
| 5160 | 232500416 | Elastic Stop Nut M10 |
| 5500a | 505070398 | Air Valve |
| 5500b | 505070399 | Screw |
| 5500c | 505070400 | O-Ring |
| 5510 | 503196422 | Spring 280 MM-45 N/MM |
| 5550 | 503195685 | Spacer |
| 5560 | 503196528 | Stopper Spring |
| 5570 | 5446652 | Bushing |
| 5580 | 503195134 | Glide Bearing |
| 5590 | 207004544 | Hex. Screw M10 X 45 |
