Parts Catalog

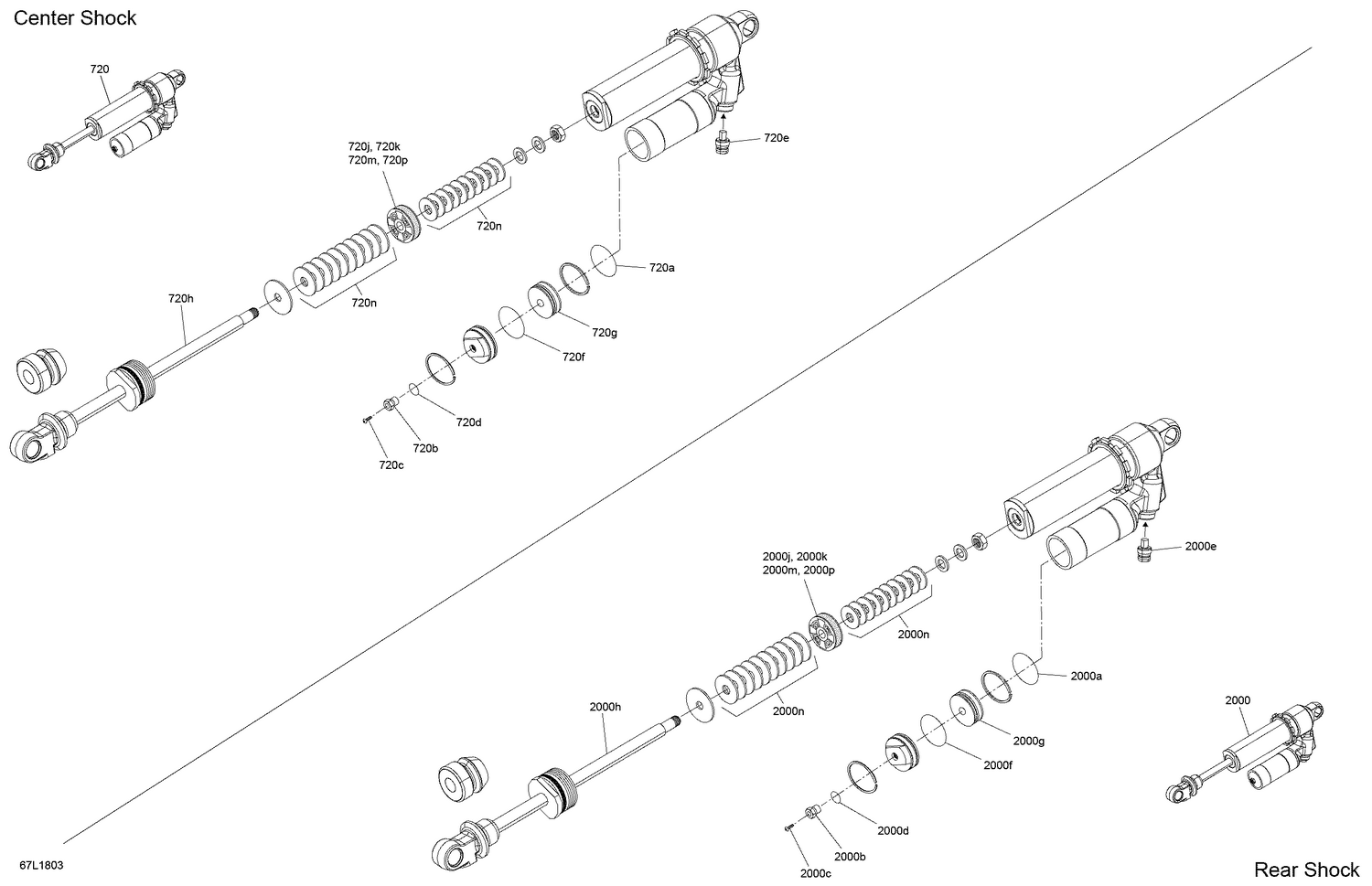

08- Rear Shocks Rave - 600 RS

Parts (133)

Ref	Part Number	Description
720a	415093807	O-Ring
720aa	619300144	Shim 40/46 mm. 22 X 0,305
720aaa	619300138	Shim 40 mm. Shim 40 mm. 32 X 0,203
720b	505070398	Air Valve
720bb	619300145	Shim 40/46 mm. 24 X 0,114
720bbb	619300059	Shim 40 mm. Shim 40 mm. 32 X 0,254
720c	505070399	Screw
720cc	619300146	Shim 40/46 mm. 24 X 0,152
720ccc	619300022	Shim 40/46 mm. 32 X 0,305
720d	505070400	O-Ring
720dd	619300147	Shim 40/46 mm. 24 X 0,203
720ddd	230033	Shim 40 mm. Shim 40 mm. 34 X 0,114
720e	619300015	Compression Valve Ass'y
720ee	619300095	Shim 40 mm. Shim 40 mm. 24 X 0,254
720eee	230034	Shim 40 mm. Shim 40 mm. 34 X 0,152
720f	415093804	O-Ring
720ff	619300148	Shim 40/46 mm. 24 X 0,305
720fff	230035	Shim 40 mm. Shim 40 mm. 34 X 0,203
720g	619300159	Piston 1.2 mm (front arm)
720gg	619300149	Shim 40/46 mm. 26 X 0,114
720ggg	230036	Shim 40 mm. Shim 40 mm. 34 X 0,254
720h	619300160	Piston 1.7 mm (rear arm)
720hh	619300141	Shim 40 mm. Shim 40 mm. 26 X 0,152
720hhh	619300070	Shim 40 mm. Shim 40 mm. 34 X 0,305
720j	230039	Piston 40 mm. 2.0 mm
720jj	619300150	Shim 40/46 mm. 26 X 0,203
720jjj	230037	Shim 40 mm. Shim 40 mm. 36 X 0,114
720k	230043	Piston 40 mm. 0 mm.
720kk	619300099	Shim 40 mm. Shim 40 mm. 26 X 0,254
720kkk	619300155	Shim 40/46 mm. 36 X 0,152
720m	619300060	Shim 40 mm. Shim 40 mm. 17 X 0,114
720mm	619300100	Shim 40 mm. Shim 40 mm. 26 X 0,305
720mmm	619300142	Shim 40 mm. Shim 40 mm. 36 X 0,203
720n	619300069	Shim 40 mm. Shim 40 mm. 17 X 0,203
720nn	619300101	Shim 40 mm. Shim 40 mm. 28 X 0,114
720nnn	503189038	Leaf Valve Ø36 X 0.254 (C46)
720p	619300068	Shim 40 mm. Shim 40 mm. 18 X 0,114
720pp	619300151	Shim 40/46 mm. 28 X 0,152
720ppp	619300105	Shim 40 mm. Shim 40 mm. 36 X 0,305
720q	619300067	Shim 40 mm. Shim 40 mm. 18 X 0,152
720qq	619300102	Shim 40 mm. Shim 40 mm. 28 X 0,203
720qqq	230040	Shim 40 mm. Shim 40 mm. 38 X 0,152
720r	230029	Shim 40 mm. Shim 40 mm. 20 X 0,114
720rr	619300103	Shim 40 mm. Shim 40 mm. 28 X 0,254
720rrr	230041	Shim 40 mm. Shim 40 mm. 38 X 0,203
720s	230030	Shim 40 mm. Shim 40 mm. 20 X 0,152
720ss	619300152	Shim 40/46 mm. 28 X 0,305
720sss	230042	Shim 40 mm. Shim 40 mm. 38 X 0,254
720t	230031	Shim 40 mm. Shim 40 mm. 20 X 0,203
720tt	619300135	Shim 40 mm. Shim 40 mm. 30 X 0,114
720ttt	619300106	Shim 40 mm. Shim 40 mm. 38 X 0,305
720u	230032	Shim 40 mm. Shim 40 mm. 20 X 0,254
720uu	619300104	Shim 40 mm. Shim 40 mm. 30 X 0,152
720uuu	619300157	Shim 40/46 mm. 40 X 0,152
720v	619300097	Shim 40 mm. Shim 40 mm. 20 X 0,305
720vv	619300154	Shim 40/46 mm. 30 X 0,203
720vvv	619300112	Shim 40 mm. Shim 40 mm. 40 X 0,203
720w	619300133	Shim 40 mm. Shim 40 mm. 22 X 0,114
720ww	619300113	Shim 40 mm. Shim 40 mm. 30 X 0,254
720www	619300136	Shim 40 mm. Shim 40 mm. 40 X 0,254
720x	619300140	Shim 40 mm. Shim 40 mm. 22 X 0,152
720xx	619300056	Shim 40/46 mm. 30 X 0,305
720xxx	619300107	Shim 40 mm. Shim 40 mm. 40 X 0,305
720y	619300098	Shim 40 mm. Shim 40 mm. 22 X 0,203
720yy	230082	Shim 40 mm. Shim 40 mm. 32 X 0,114
720z	619300134	Shim 40 mm. Shim 40 mm. 22 X 0,254
720zz	619300137	Shim 40 mm. Shim 40 mm. 32 X 0,152
2000a	415093807	O-Ring
2000aa	619300144	Shim 40/46 mm. 22 X 0,305
2000aaa	619300138	Shim 40 mm. Shim 40 mm. 32 X 0,203
2000b	505070398	Air Valve
2000bb	619300145	Shim 40/46 mm. 24 X 0,114
2000bbb	619300059	Shim 40 mm. Shim 40 mm. 32 X 0,254
2000c	505070399	Screw
2000cc	619300146	Shim 40/46 mm. 24 X 0,152
2000ccc	619300022	Shim 40/46 mm. 32 X 0,305
2000d	505070400	O-Ring
2000dd	619300147	Shim 40/46 mm. 24 X 0,203
2000ddd	230033	Shim 40 mm. Shim 40 mm. 34 X 0,114
2000e	619300015	Compression Valve Ass'y
2000ee	619300095	Shim 40 mm. Shim 40 mm. 24 X 0,254
2000eee	230034	Shim 40 mm. Shim 40 mm. 34 X 0,152
2000f	415093804	O-Ring
2000ff	619300148	Shim 40/46 mm. 24 X 0,305
2000fff	230035	Shim 40 mm. Shim 40 mm. 34 X 0,203
2000g	619300159	Piston 1.2 mm (front arm)
2000gg	619300149	Shim 40/46 mm. 26 X 0,114
2000ggg	230036	Shim 40 mm. Shim 40 mm. 34 X 0,254
2000h	619300160	Piston 1.7 mm (rear arm)
2000hh	619300141	Shim 40 mm. Shim 40 mm. 26 X 0,152
2000hhh	619300070	Shim 40 mm. Shim 40 mm. 34 X 0,305
2000j	230039	Piston 40 mm. 2.0 mm
2000jj	619300150	Shim 40/46 mm. 26 X 0,203
2000jjj	230037	Shim 40 mm. Shim 40 mm. 36 X 0,114
2000k	230043	Piston 40 mm. 0 mm.
2000kk	619300099	Shim 40 mm. Shim 40 mm. 26 X 0,254
2000kkk	619300155	Shim 40/46 mm. 36 X 0,152
2000m	619300060	Shim 40 mm. Shim 40 mm. 17 X 0,114
2000mm	619300100	Shim 40 mm. Shim 40 mm. 26 X 0,305
2000mmm	619300142	Shim 40 mm. Shim 40 mm. 36 X 0,203
2000n	619300069	Shim 40 mm. Shim 40 mm. 17 X 0,203
2000nn	619300101	Shim 40 mm. Shim 40 mm. 28 X 0,114
2000nnn	503189038	Leaf Valve Ø36 X 0.254 (C46)
2000p	619300068	Shim 40 mm. Shim 40 mm. 18 X 0,114
2000pp	619300151	Shim 40/46 mm. 28 X 0,152
2000ppp	619300105	Shim 40 mm. Shim 40 mm. 36 X 0,305
2000q	619300067	Shim 40 mm. Shim 40 mm. 18 X 0,152
2000qq	619300102	Shim 40 mm. Shim 40 mm. 28 X 0,203
2000qqq	230040	Shim 40 mm. Shim 40 mm. 38 X 0,152
2000r	230029	Shim 40 mm. Shim 40 mm. 20 X 0,114
2000rr	619300103	Shim 40 mm. Shim 40 mm. 28 X 0,254
2000rrr	230041	Shim 40 mm. Shim 40 mm. 38 X 0,203
2000s	230030	Shim 40 mm. Shim 40 mm. 20 X 0,152
2000ss	619300152	Shim 40/46 mm. 28 X 0,305
2000sss	230042	Shim 40 mm. Shim 40 mm. 38 X 0,254
2000t	230031	Shim 40 mm. Shim 40 mm. 20 X 0,203
2000tt	619300135	Shim 40 mm. Shim 40 mm. 30 X 0,114
2000ttt	619300106	Shim 40 mm. Shim 40 mm. 38 X 0,305
2000u	230032	Shim 40 mm. Shim 40 mm. 20 X 0,254
2000uu	619300104	Shim 40 mm. Shim 40 mm. 30 X 0,152
2000uuu	619300157	Shim 40/46 mm. 40 X 0,152
2000v	619300097	Shim 40 mm. Shim 40 mm. 20 X 0,305
2000vv	619300154	Shim 40/46 mm. 30 X 0,203
2000vvv	619300112	Shim 40 mm. Shim 40 mm. 40 X 0,203
2000w	619300133	Shim 40 mm. Shim 40 mm. 22 X 0,114
2000ww	619300113	Shim 40 mm. Shim 40 mm. 30 X 0,254
2000www	619300136	Shim 40 mm. Shim 40 mm. 40 X 0,254
2000x	619300140	Shim 40 mm. Shim 40 mm. 22 X 0,152
2000xx	619300056	Shim 40/46 mm. 30 X 0,305
2000y	619300098	Shim 40 mm. Shim 40 mm. 22 X 0,203
2000yy	230082	Shim 40 mm. Shim 40 mm. 32 X 0,114
2000z	619300134	Shim 40 mm. Shim 40 mm. 22 X 0,254
2000zz	619300137	Shim 40 mm. Shim 40 mm. 32 X 0,152
