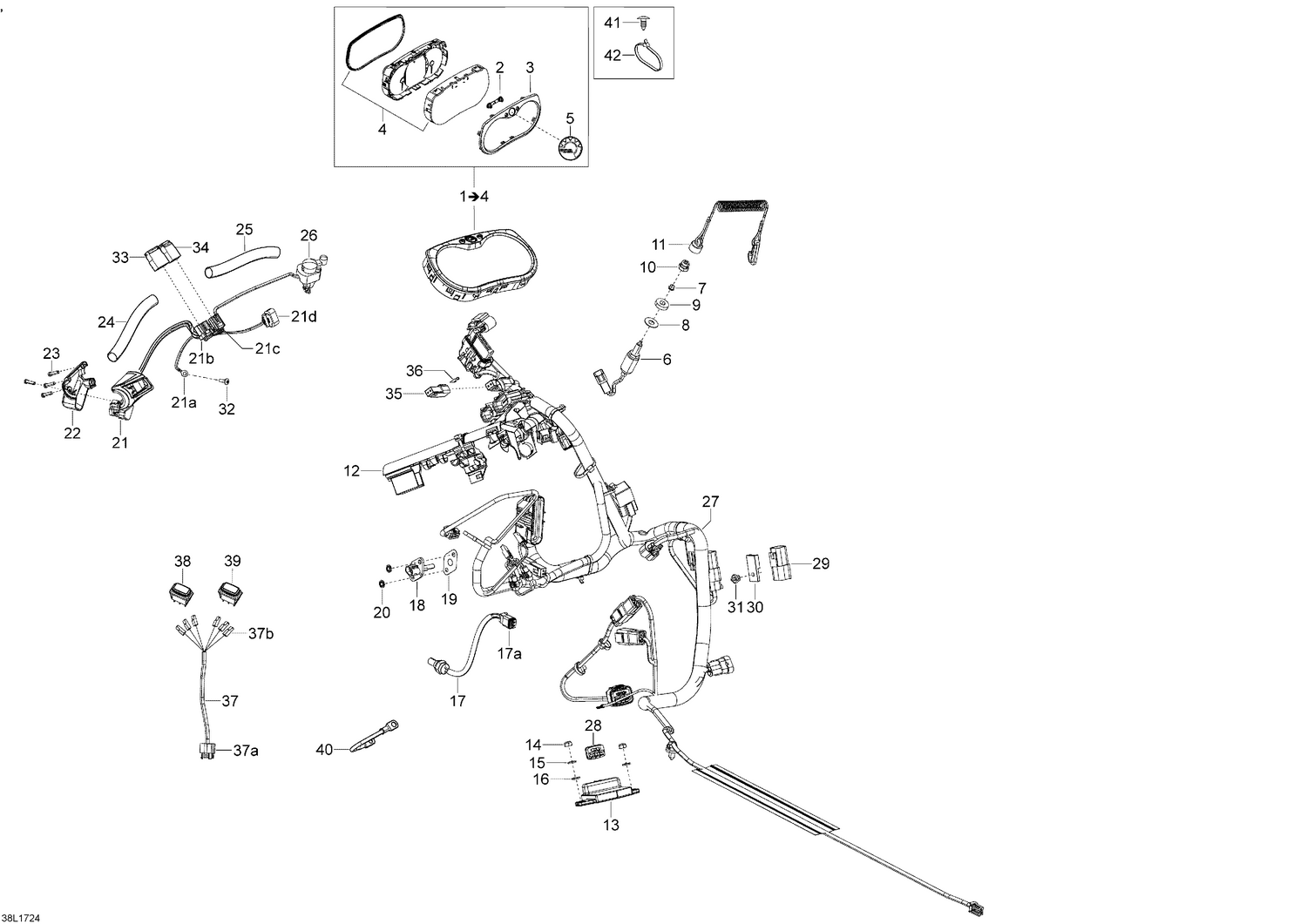

| Ref | Part Number | Description |
|---|
| 2 |
415129355 |
Speedometer Button |
| 3 |
415129348 |
Ring Gauge |
| 4 |
415129349 |
Lens And Seal |
| 5 |
516006224 |
BRP Logo |
| 6 |
515175653 |
Brake Switch |
| 7 |
570151100 |
Plunger Cap |
| 8 |
250200032 |
Washer |
| 9 |
510004418 |
WASHER - Call your local BRP dealership |
| 10 |
515145900 |
Switch Nut |
| 11 |
515178292 |
Cap Ass'y |
| 12 |
515177134 |
Connector Plate |
| 13 |
515176364 |
Voltage Regulator |
| 14 |
232561414 |
Elastic Stop Nut M6 |
| 15 |
234061410 |
Flat Washer 6 mm |
| 16 |
234461608 |
External Serrated Lock Washer 6 mm |
| 17a |
278000632 |
Female Terminal |
| 17a |
515175670 |
Female Terminal Housing, 2 Circuits |
| 18 |
515176366 |
Air Temperature Sensor |
| 19 |
508000769 |
Ring |
| 20 |
389804300 |
Push Nut |
| 21 |
515178305 |
LH Switch Hosuing |
| 21a |
515175504 |
Ring Terminal |
| 21b |
515175231 |
Female Terminal |
| 21b |
515175543 |
Female Housing, 6 Circuits |
| 21c |
515175231 |
Female Terminal |
| 21c |
515175845 |
Female Housing, 4 Circuits |
| 21d |
710001930 |
Female Housing, 12 Circuits |
| 22 |
515177149 |
LH Switch Housing Plate |
| 23 |
250000671 |
Torx Screw |
| 24 |
415129879 |
Protector Tube |
| 25 |
415129879 |
Protector Tube |
| 26 |
515177454 |
KILL SWITCH - Call your local BRP dealership |
| 27 |
515177994 |
WIRING HARNESS ASSY - Call your local BRP dealership |
| 28 |
515176681 |
Lock |
| 29 |
710003006 |
Housing |
| 30 |
270000141 |
Clip |
| 31 |
293150037 |
Avdel Rivet 3/16" |
| 32 |
250000690 |
Forming Screw M5 x 10 |
| 33 |
515175232 |
Male Terminal |
| 33 |
515175662 |
Male Housing, 6 Cirsuits |
| 34 |
515175232 |
Male Terminal |
| 34 |
515175846 |
Male Housing, 4 Circuits |
| 35 |
515175665 |
Male Housing, 2 Circuits |
| 35 |
515175823 |
Male Terminal |
| 36 |
409207500 |
Lock, 2 Circuits |
| 37 |
515177495 |
Warmer Harness |
| 37a |
710001928 |
Female Housing, 8 Circuits |
| 37b |
710002398 |
Female Housing, 1 Circuit |
| 37b |
710002399 |
Female Terminal |
| 38 |
515177497 |
Hand Warmer Rocker Switch |
| 39 |
515177498 |
Thumb Warmer Rocker Switch |
| 40 |
515177289 |
Ground Wire |
| 41 |
414644300 |
Black, Dart |
| 42 |
293750001 |
Tie-Rap 94 mm |
| 42 |
293750008 |
Tie-Rap 368 mm |
| 42 |
414115200 |
Tie-Rap 180 mm |
