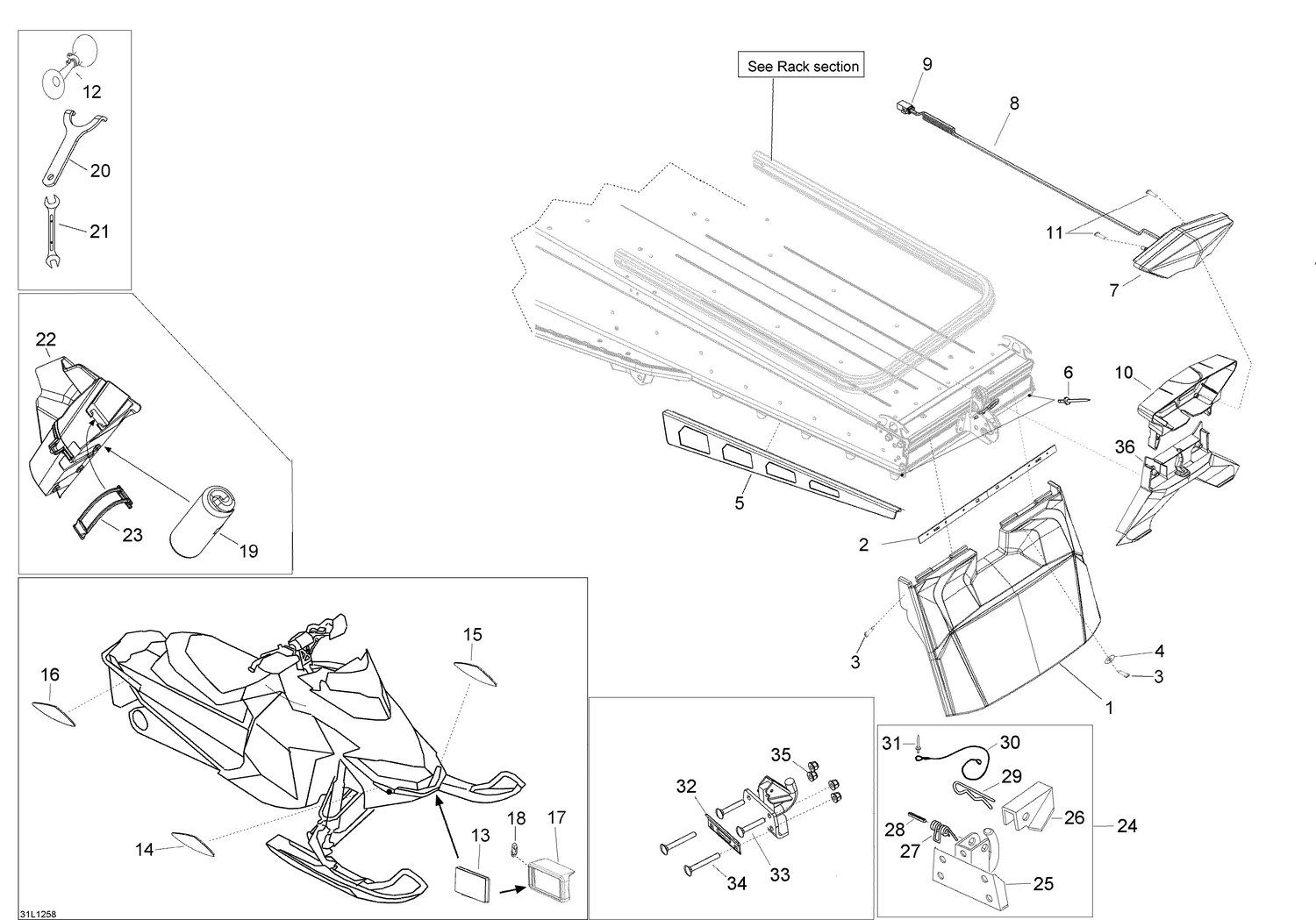

09- Utilities
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000989 | Snow Guard |
| 2 | 520001021 | Plate |
| 3 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 4 | 250200025 | Washer M5 |
| 5 | 520000693 | RH Protector |
| 5 | 520000694 | LH Protector |
| 6 | 293150163 | Rivet Hucklok |
| 7 | 520000848 | Rear Light |
| 8 | 520000849 | Rear Wiring Harness |
| 9 | 515175494 | Male Housing, 3 Circuits |
| 10 | 511000764 | Rear Light Cover |
| 11 | 705014429 | Stopper_Rubber This part replaces 705003666. |
| 12 | 549011291 | Horn |
| 13 | 21118 | Reflector (Bright) |
| 14 | 520001600 | Yellow RH Reflector This part replaces 520000843. |
| 15 | 520001601 | Yellow LH Reflector This part replaces 520000844. |
| 16 | 705002423 | Front Lateral Reflector, Amber |
| 17 | 520000871 | Reflector Support |
| 18 | 27120 | TIE RAP - Call your local BRP dealership |
| 19 | 529000065 | Tool Kit This part replaces 529000054. |
| 20 | 529035582 | ADJUSTMENT WRENCH - Call your local BRP dealership |
| 21 | 34017 | Wrench |
| 22 | 520000894 | Tool Kit Rack |
| 23 | 520000528 | Latch |
| 24 | 520001774 | Hitch Ass'y This part replaces 520001039. |
| 25 | 520001040 | Hook Hitch |
| 26 | 520001041 | LOCKING PLATE - Call your local BRP dealership |
| 27 | 545693 | SPRING - Call your local BRP dealership |
| 28 | 41012 | Pin |
| 29 | 41029 | Hair pin |
| 30 | 293750069 | Retainer Cable This part replaces 5446839. |
| 31 | 390909100 | Avex Rivet |
| 32 | 520000727 | Plate |
| 33 | 207782544 | Carriage Bolt, M8 X 25 |
| 34 | 207784044 | Bolt Carriage M8 X 40 |
| 35 | 233281414 | Hex. Flange Elastic Nut M8 |
