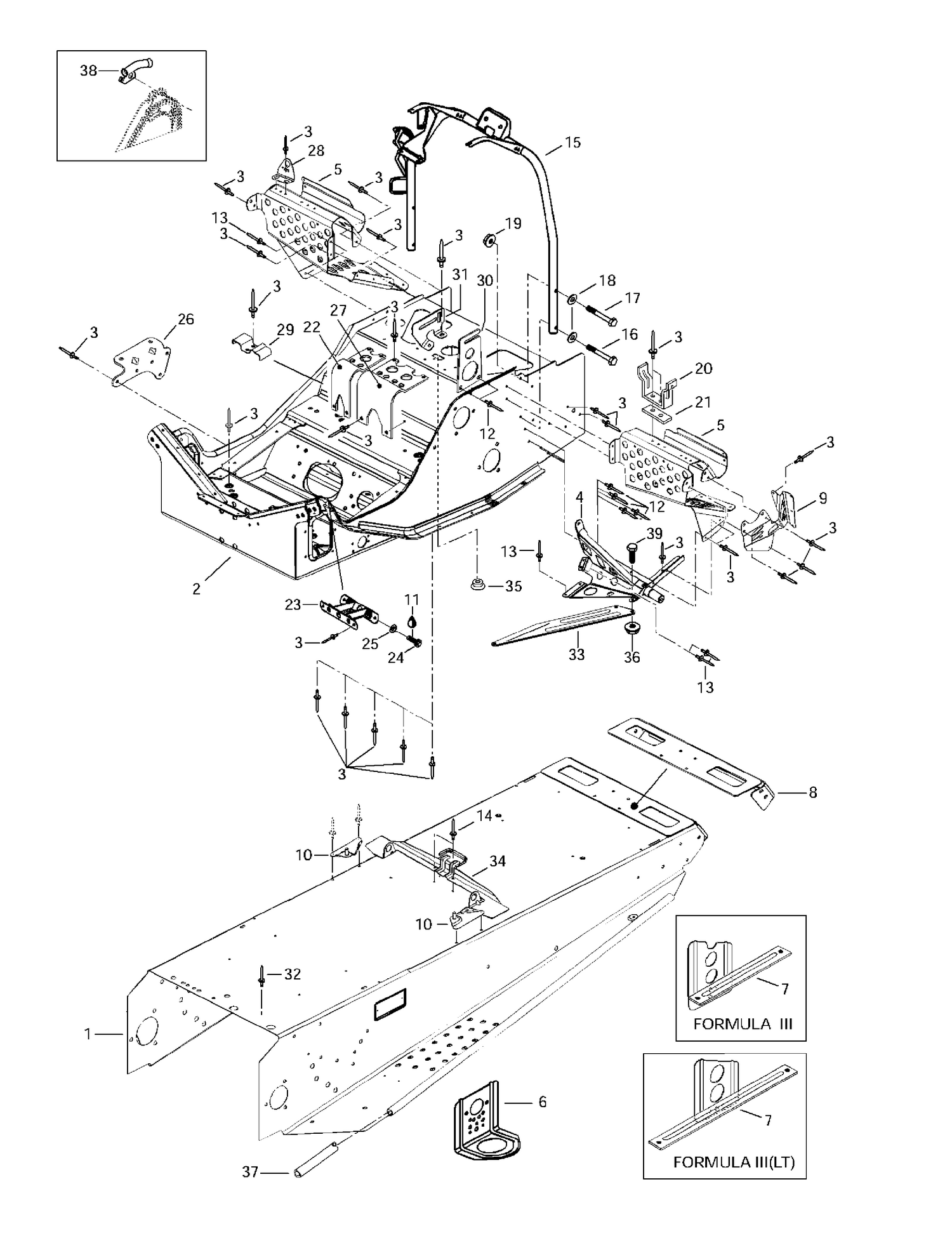

09- Frame And Accessories
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 390402200 | Pop Rivet 3/16" |
| 4 | 518316702 | LH Support |
| 5 | 518312906 | RH Front Footrest |
| 6 | 518312910 | Front Bracket |
| 8 | 518310211 | Cap-End |
| 9 | 518312908 | Side Plate L.H |
| 10 | 518304735 | RH Tank Bracket |
| 11 | 293800005 | Loctite 271, 10 ml This part replaces 413707400. |
| 12 | 390909200 | Avex Rivet |
| 13 | 390909100 | Avex Rivet |
| 14 | 390402400 | Pop Rivet 3/16" |
| 15 | 518304743 | Handle Steering Support |
| 16 | 207064044 | Hex. Screw M6 X 40 This part replaces 222064065. |
| 17 | 207063544 | Hex. Flange Screw M6 X 35 This part replaces 222063565. |
| 18 | 234061410 | Flat Washer 6 mm This part replaces 224061151. |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 20 | 518202100 | Belt Guard Bracket |
| 21 | 518207500 | REINFORCEMENT - Call your local BRP dealership |
| 22 | 518310800 | Air Silencer Support |
| 23 | 518304741 | Reinf. Plate |
| 24 | 207182044 | Hex. Screw M8 X 20 This part replaces 222082065. |
| 25 | 234181401 | Lock Washer 8 mm This part replaces 224781140. |
| 26 | 518206300 | Muffler Support |
| 27 | 518310400 | AIR INTAKE SUPPORT - Call your local BRP dealership |
| 28 | 518310206 | Valve Bracket |
| 29 | 518207800 | Protector |
| 30 | 517252000 | External Bracket |
| 31 | 518313900 | Internal Bracket |
| 32 | 390402300 | Pop Rivet 3/16" |
| 33 | 518316709 | RH Reinforcement Plate |
| 34 | 518310208 | Seat Bracket |
| 35 | 414859400 | CAP - Call your local BRP dealership |
| 36 | 233251434 | Flange Elastic Nut M5 This part replaces 228751045. |
| 37 | 518304746 | FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 38 | 517276000 | Rope Guide |
| 518304736 | LH | Tank Bracket 518304736 |
| 518308717 | Capuchon, | Extrémité 518308717 |
| 518312907 | LH | Front Footrest 518312907 |
| 518312907 | Repose-Pied | Avant GA 518312907 |
| 518312909 | Side | Plate R.H 518312909 |
| 518316703 | Attache | DR 518316703 |
| 518316703 | RH | Support 518316703 |
| 518316710 | LH | Reinforcement. Plate 518316710 |
