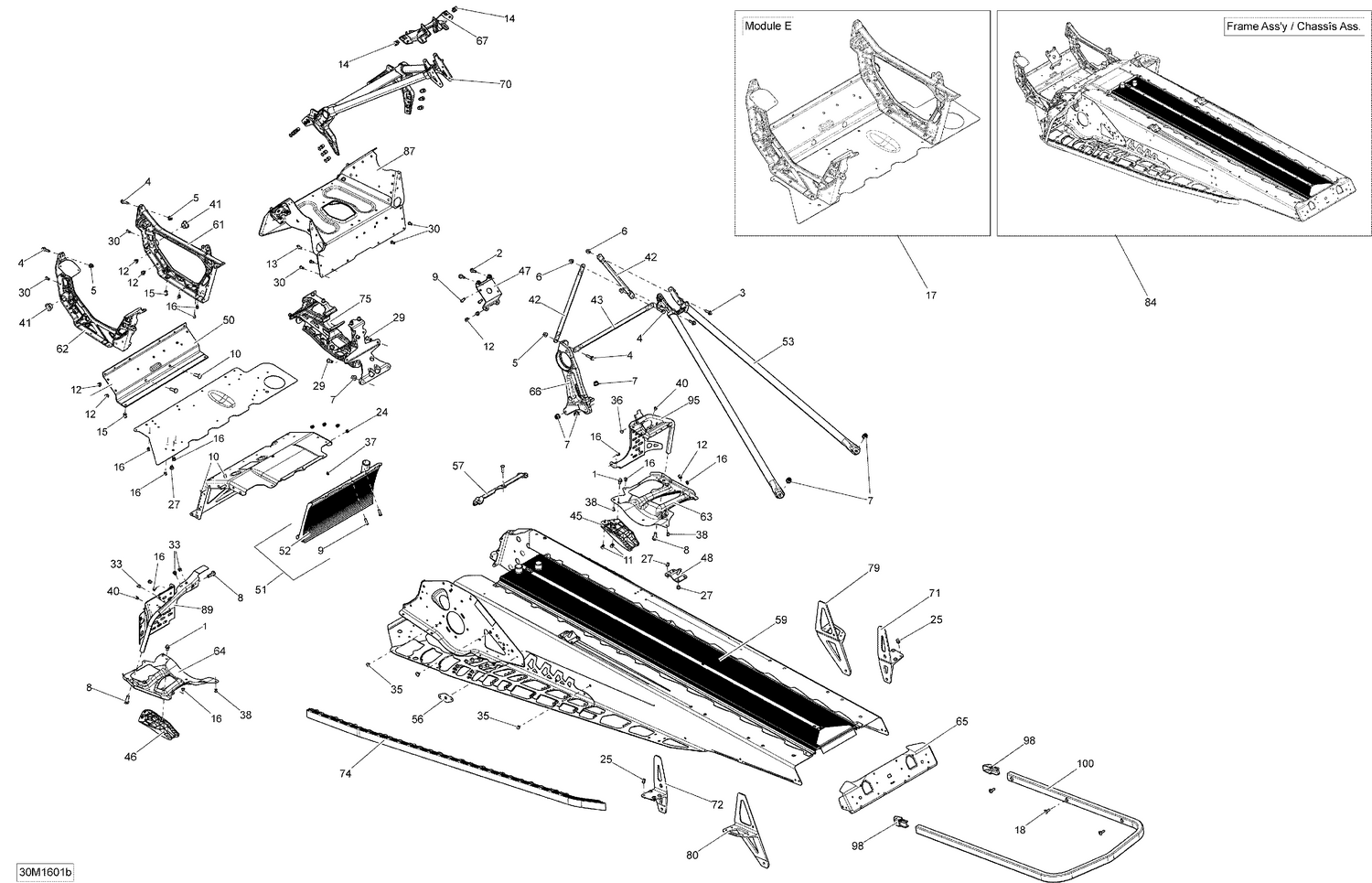

09- Frame - Except Package Sport
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207661644 | Hex. Flange Screw M6 X 16 |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4 | 207662544 | Hex. Flange Screw M6 X 25 |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 6 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 |
| 8 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 9 | 250300027 | Clinch Stud M6 X 20 |
| 10 | 250300038 | Clinch Stud |
| 12 | 293150119 | Hemlock Rivet, 6.5 mm |
| 13 | 210261650 | Hex. Flange Screw M6 X 16 |
| 14 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 15 | 293150120 | Hemlock Rivet 6.5 mm |
| 16 | 293150144 | Stavex Rivet |
| 17 | 518327567 | E Module |
| 18 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 24 | 293150146 | Henrob Rivet |
| 25 | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 27 | 293150174 | Hemlock Rivet, 6.4 mm |
| 29 | 293150182 | Monobolt Rivet 6.4 |
| 30 | 293150191 | Monobolt Rivet, 4.8 mm |
| 33 | 293450268 | Insert M5 X 0.8 |
| 35 | 293730053 | Black Dart 5 mm |
| 35 | 293730060 | Black, Dart 10 mm |
| 36 | 293730042 | Full Moon Dart 5 mm |
| 37 | 390402400 | Pop Rivet 3/16" |
| 38 | 390909100 | Avex Rivet |
| 40 | 390909200 | Avex Rivet |
| 41 | 505073317 | Leg Cushion |
| 42 | 518325114 | Upper Lateral Column Support |
| 43 | 518325115 | Center Column Support |
| 47 | 518325943 | MAG Engine Support |
| 48 | 518325973 | RH Rear Base |
| 48 | 518325974 | LH Rear Base |
| 50 | 518326198 | Front Member |
| 51 | 518326485 | Front Radiator |
| 52 | 518326485 | Front Radiator This part replaces 518326486. |
| 53 | 518326559 | Rear Member |
| 57 | 518326656 | Seal |
| 61 | 518326795 | RH Member |
| 62 | 518326796 | LH Member |
| 65 | 518327105 | Rear Cap |
| 66 | 518327460 | Driven Pulley Support |
| 67 | 518327145 | Sub A Support |
| 70 | 518327565 | Front Member |
| 74 | 518327472 | RH Roller |
| 74 | 518327473 | LH Roller |
| 75 | 518327487 | Front Suspension Support |
| 87 | 518328320 | Cross Member S Module |
| 89 | 518328528 | LH Stirup |
| 95 | 518328940 | RH Stirup |
