Parts Catalog

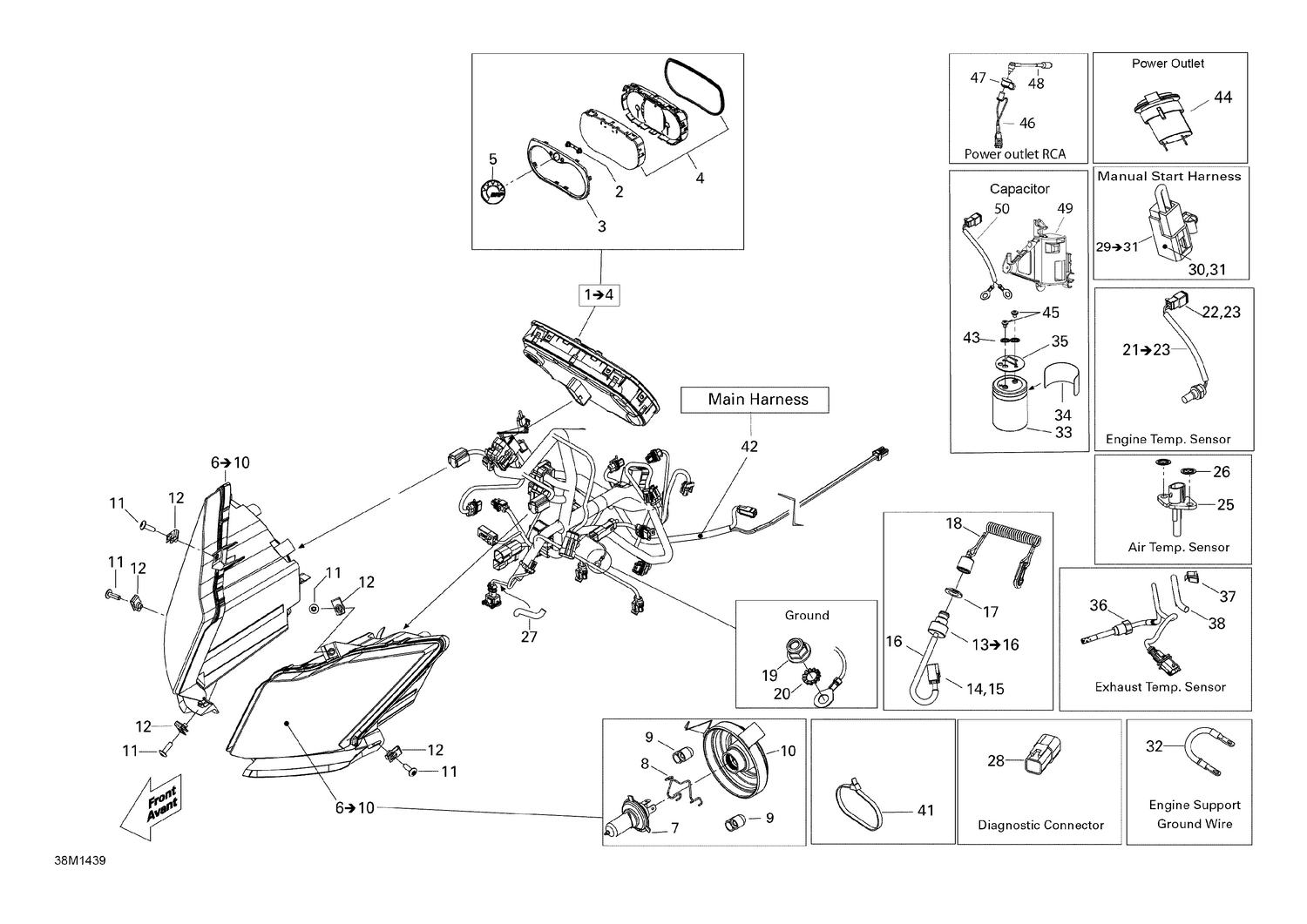

10- Electrical System

Parts (44)

Ref	Part Number	Description
2	415129355	Speedometer Button
3	415129370	Gauge Ring
4	415129349	Lens
5	516006224	BRP Logo 20MM x 2MM This part replaces 219902677.
7	515176274	Halogen Bulb, 60/55 W, 12 V ( H4 )
8	Not	Available As Spare Part - Bulb Holder
9	515176498	Cap
10	219800280	Rubber Cap Protector This part replaces 515176499.
11	250000722	Torx Screw M6 X 20 This part replaces 250000128.
12	250100198	Panel Nut M6 X 1.0 This part replaces 250100113.
14	515175232	Male Terminal
15	515175494	Male Housing, 3 Circuits
16	409902000	Tubing 12 mm
17	278002963	Safety Nut (DESS Switch)
18	515178284	DESS This part replaces 515177057.
19	233261414	Hex. Flange Elastic Nut M6 x 1.0
20	234461608	External Serrated Lock Washer 6 mm
22	515175670	Female Terminal Housing, 2 Circuits
23	278000632	Female Terminal
25	515176366	Air Temperature Sensor
26	389804300	Push Nut
27	219704425	Tubing 6 Mm 3000Mm Long
28	278002704	Diagnostic Connector This part replaces 278002148.
30	515175232	Male Terminal
31	710000667	Male Housing, 2 Circuits
32	515177289	Ground Wire This part replaces 515176861.
33	515177272	Capacitor
34	516005515	CAPACITOR DECAL (ENGLISH) - Call your local BRP dealership
35	515177193	Cap
36	514054856	Temperature Sensor
37	414227300	Clip
38	219704425	Tubing 6 Mm 3000Mm Long
41	293750001	Tie Wrap 94 mm
41	293750002	Tie Wrap 142 mm
41	293750008	Tie Wrap 368 mm
41	414115200	Tie-Rap 180 mm
42	515177502	WIRING HARNESS MAIN - Call your local BRP dealership
43	250200026	Lock washer
44	710001248	DC Outlet
45	250000462	Socket Head Screw M10 X 32
46	515177837	Visor Harness This part replaces 515177187.
47	572103300	Cap
48	515175851	Extension
49	515176607	Capacitor Support
