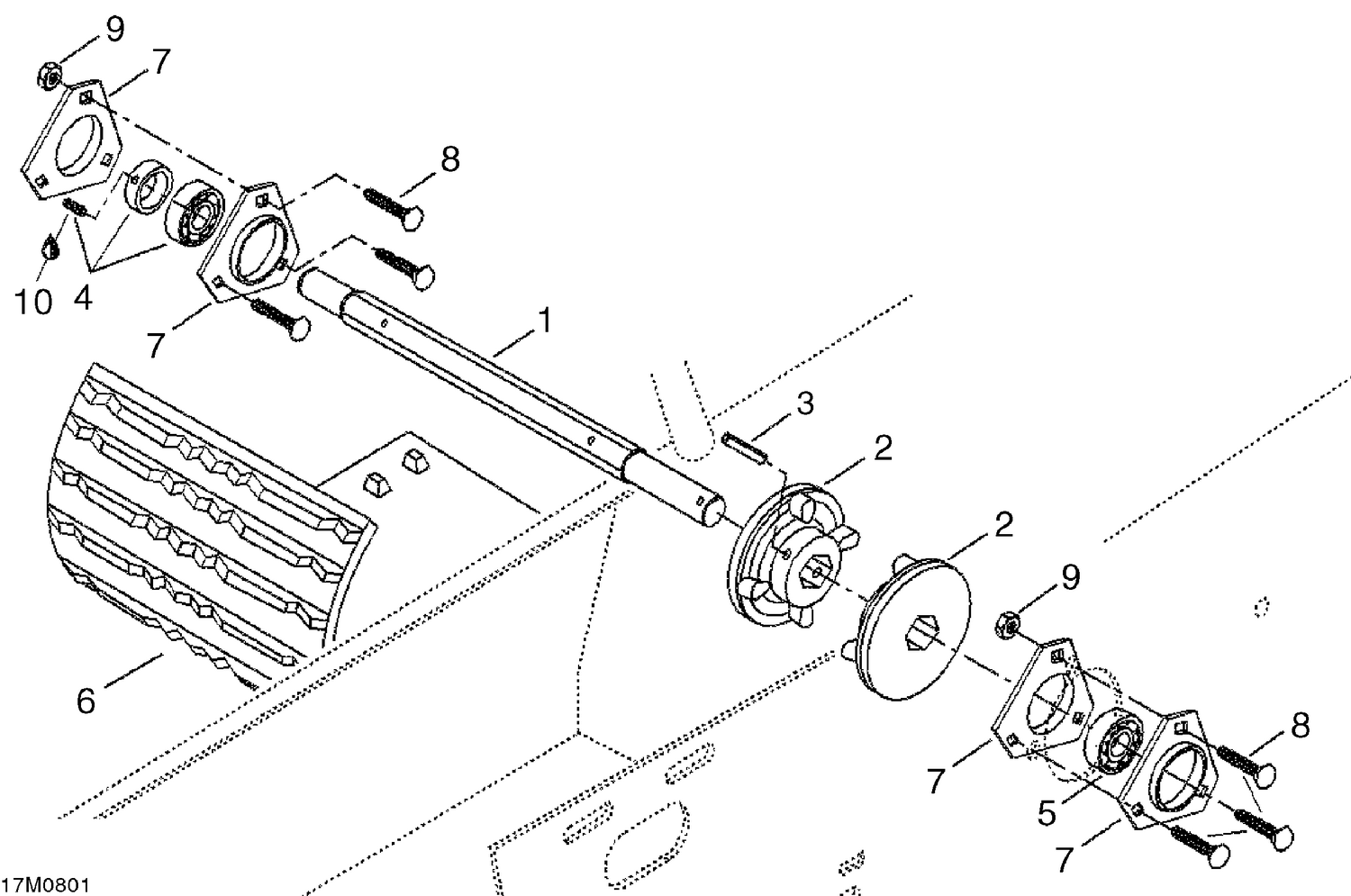

| Ref | Part Number | Description |
|---|
| 1 |
504152025 |
Drive Axle |
| 2 |
504151794 |
Barbotin 4 dents - Appelez votre concessionnaire BRP local |
| 3 |
211400016 |
ROLLED PIN M6 X 40 - Call your local BRP dealership |
| 4 |
415129552 |
BALL BEARING - Call your local BRP dealership This part replaces 504152072. |
| 5 |
415129552 |
BALL BEARING - Call your local BRP dealership This part replaces 504152072. |
| 6 |
504152172 |
Track |
| 7 |
501025000 |
FLANGE - Call your local BRP dealership |
| 8 |
207781644 |
CARRIAGE BOLT M8 X 16 - Call your local BRP dealership |
| 9 |
232581414 |
Hex. Elastic Stop Nut M8 |
