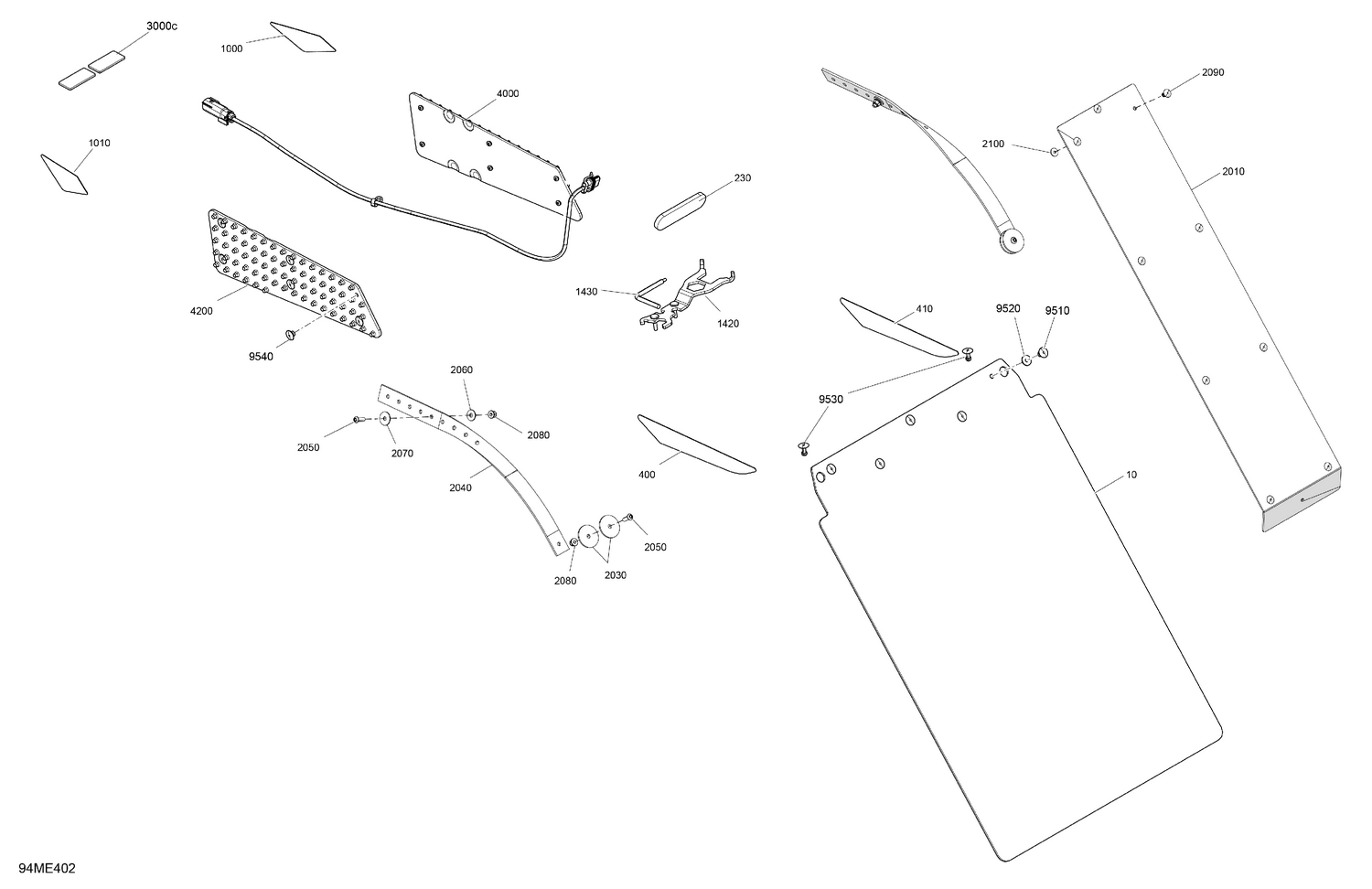

09- Miscellaneous - Utilities
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002715 | Snow Guard |
| 230 | 705015551 | Red, Reflector |
| 400 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 410 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1420 | 520001499 | Wrench |
| 1430 | 417127579 | Belt Installation Tool |
| 2010 | 520003222 | Snow Guard Reinforcement |
| 2030 | 520003221 | Washer |
| 2040 | 503192360 | Stopper Strap |
| 2050 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr |
| 2060 | 234082670 | Stainless Steel Flat Washer |
| 2070 | 234082670 | Stainless Steel Flat Washer |
| 2080 | 233281466 | Elastic Flange Nut M8 |
| 2090 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 2100 | 517124300 | Washer |
| 3000c | 520002680 | Amber, Reflector |
| 4000 | 860200164 | Grip Plate Kit |
| 4200 | 860200164 | Grip Plate Kit |
| 9510 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 9520 | 517124300 | Washer |
| 9530 | 293150306 | Black, Ornit Rivet 3/16 X ,800 |
