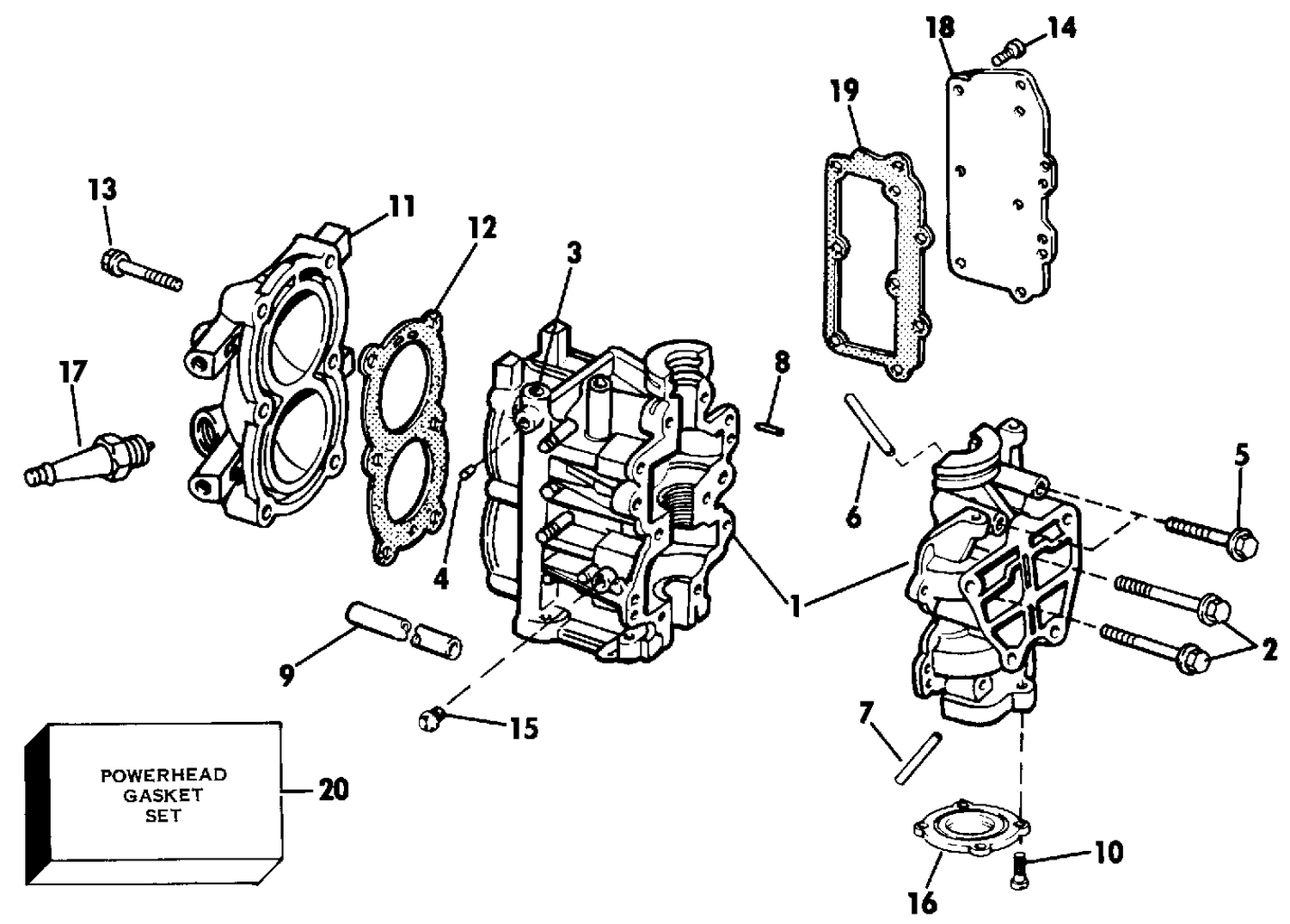

CYLINDER & CRANKCASE
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0389680 | CYLINDER & C'CASE ASSY |
| 2 | 0314951 | SCREEN, Mfld. to c'case |
| 5 | 0322831 | SCREW |
| 6 | 0328158 | TUBE, Crankcase drain |
| 7 | 0328159 | TUBE, Crankcase drain |
| 11 | 0398131 | CYLINDER HEAD This part replaces 0395711. |
| 12 | 0332010 | GASKET, Cylinder head |
| 13 | 0314951 | SCREEN, Mfld. to c'case |
| 16 | 0327960 | HOUSING, Lower cyl. & c'case assy. |
| 17 | 0392403 | SPARK PLUG, Champion RL86 |
| 17 | 0392405 | SPARK PLUG, Champion L86 |
| 18 | 0323263 | PLATE, EXH COVER |
| 19 | 0323445 | GASKET, Cover plate |
