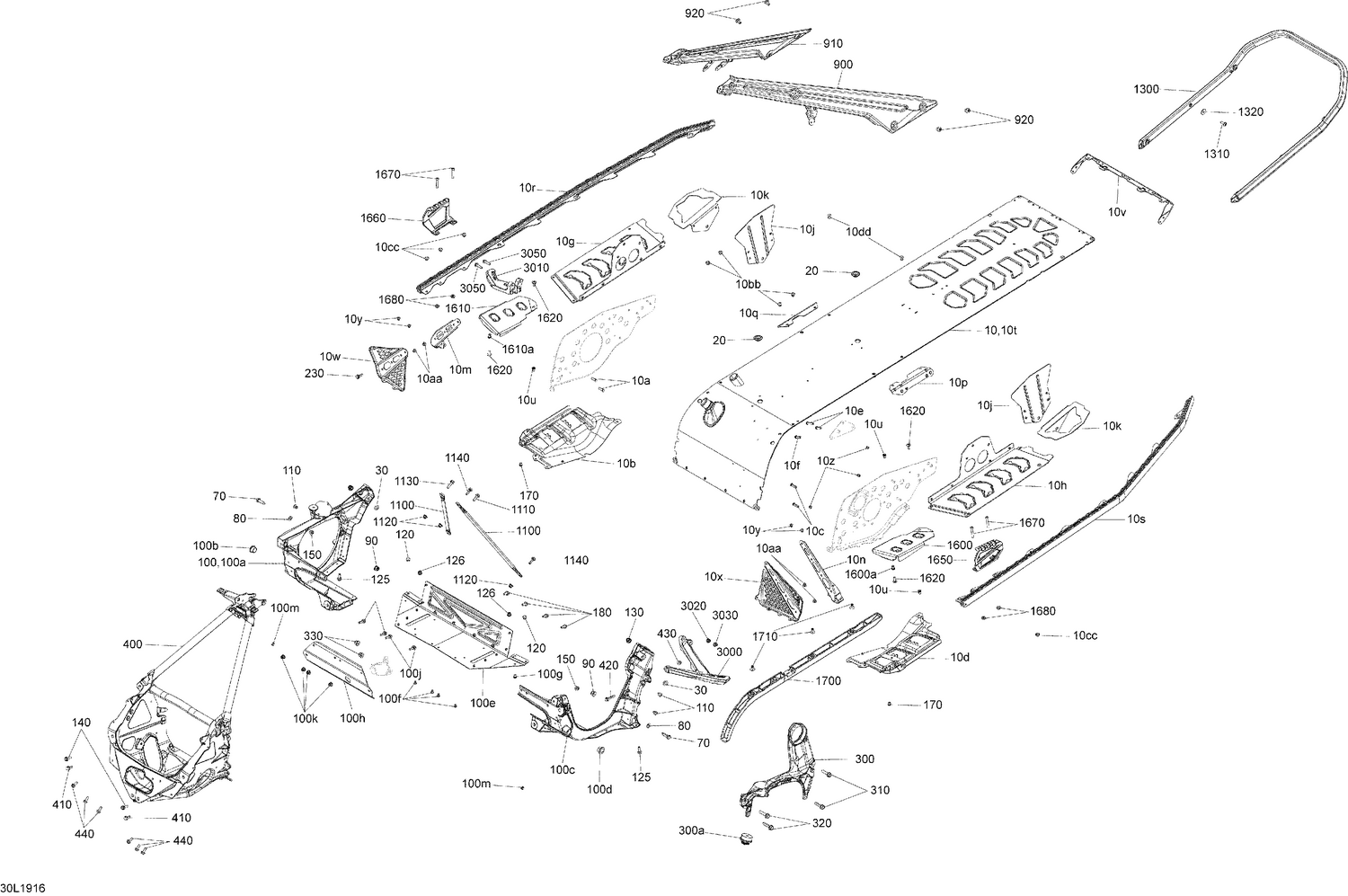

| Ref | Part Number | Description |
|---|
| 10a |
250300027 |
Clinch Stud M6 X 20 |
| 10aa |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10bb |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10c |
250300027 |
Clinch Stud M6 X 20 |
| 10cc |
293150174 |
Hemlock Rivet, 6.5 mm |
| 10dd |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 10e |
250300027 |
Clinch Stud M6 X 20 |
| 10f |
250300031 |
Clinch Stud M6 X 30 |
| 10g |
518329310 |
Angle Reinforcement Rh |
| 10h |
518329309 |
Angle Reinforcement Lh |
| 10j |
518329303 |
Rear Arm Support |
| 10k |
518329304 |
Rear Support |
| 10m |
518329305 |
RH Reinforcement Footrest |
| 10n |
518329306 |
LH Reinforcement Footrest |
| 10p |
518330262 |
Member Fixation Plate Lh. |
| 10q |
518330263 |
Member Fixation Plate Rh. |
| 10r |
518329307 |
Right Roller |
| 10s |
518329308 |
Left Roller |
| 10t |
518334487 |
Radiator Tunnel 129 Ass'y This part replaces 415130268. |
| 10u |
605636003 |
Clinch Nut M6 Hexsert |
| 10v |
518328990 |
Rear Cap |
| 10w |
518328460 |
Appui-Pied DR |
| 10x |
518333007 |
LH Footrest This part replaces 518328463. |
| 10y |
390909100 |
Avex Rivet |
| 10z |
390909200 |
Avex Rivet |
| 20 |
293730052 |
Black, Plug |
| 30 |
506151252 |
Washer |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100b |
505073317 |
Leg Cushion |
| 100d |
505073317 |
Leg Cushion |
| 100e |
518329844 |
Bottom Plate |
| 100f |
390909100 |
Avex Rivet |
| 100g |
293450268 |
Insert M5 X 0.8 |
| 100h |
518330100 |
Front Member |
| 100j |
207662044 |
Hex. Flange Screw M6 X 20 |
| 100k |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100m |
390909100 |
Avex Rivet |
| 110 |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 120 |
293150174 |
Hemlock Rivet, 6.5 mm |
| 125 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 126 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 170 |
293450268 |
Insert M5 X 0.8 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 300a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 320 |
207683544 |
Hex. Flange Screw M8 X 35 |
| 330 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 400 |
518334549 |
Chassis Suspension Module Ass'y This part replaces 518330573. |
| 410 |
250001051 |
Hex. Forming Screw HD.FL. M6 X 16 This part replaces 250000822. |
| 420 |
207663544 |
Hex. Flange Screw M6 X 35 |
| 430 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 440 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 900 |
518330142 |
Rs Left Member Viper Red |
| 910 |
518330143 |
Rs Right Member Viper Red |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329974 |
Upper Colomn Support |
| 1110 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 1120 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1130 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 1300a |
520001612 |
Cap |
| 1310 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1320 |
224061201 |
Flat Washer |
| 1600a |
605636003 |
Clinch Nut M6 Hexsert |
| 1610a |
605636003 |
Clinch Nut M6 Hexsert |
| 1620 |
250000755 |
Torx Screw M6 X 16 |
| 1650 |
518330797 |
LH Side Foot Support |
| 1660 |
518330798 |
RH Side Foot Support |
| 1670 |
207664554 |
Hex, Flange Screw |
| 1680 |
233161414 |
Hex. Flange Nut M6 |
| 3000 |
518330358 |
Black Toe-hold |
| 3010 |
518329134 |
Toe Hold |
| 3020 |
233261494 |
Nut flanged elastic black zink |
| 3030 |
233261494 |
Nut flanged elastic black zink |
