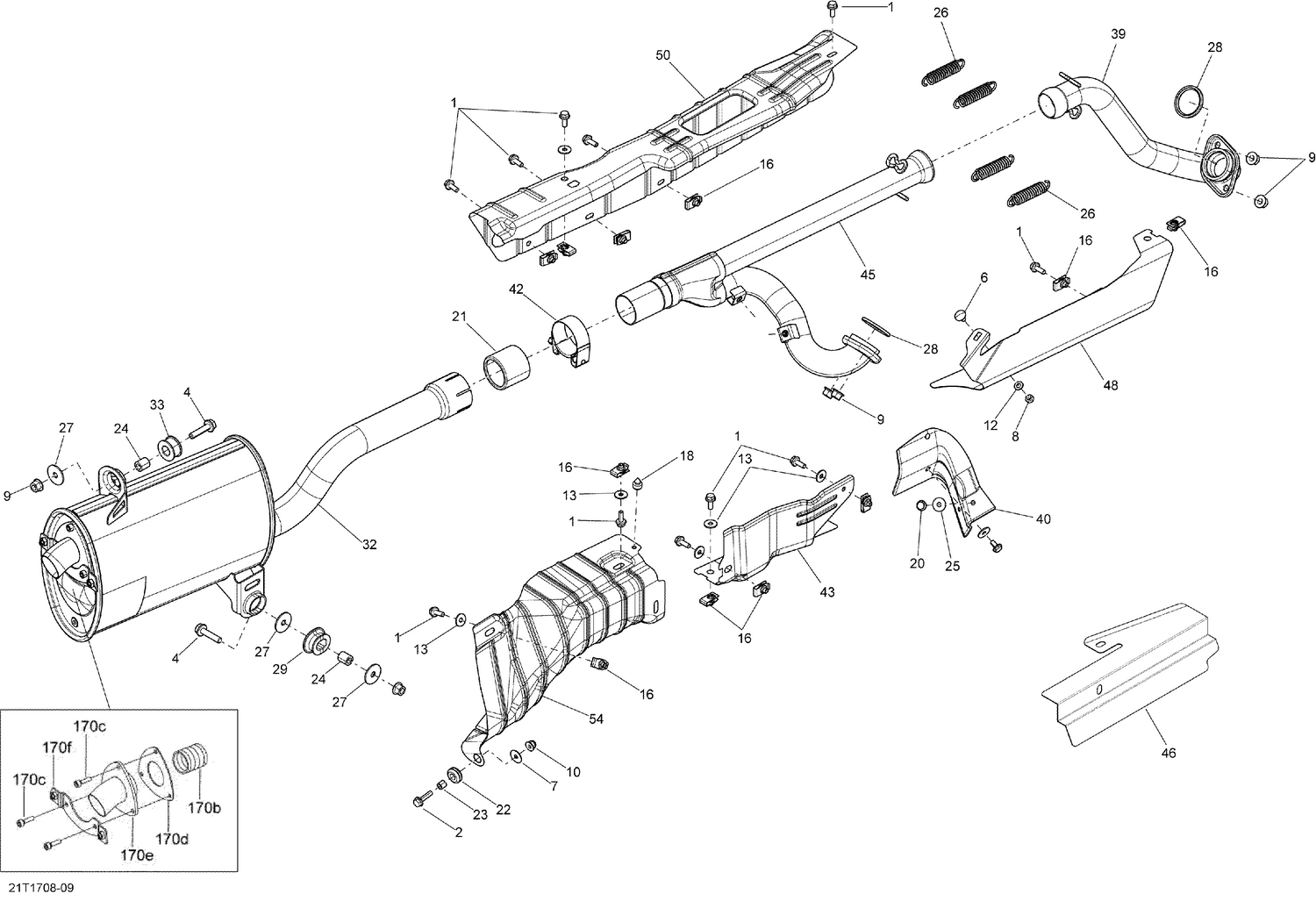

01- Exhaust System
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 1 | 207661644 | Hex. Flange Screw M6 X 16 |
| 2 | 207662534 | Hex. Flange Screw M6 X 25 |
| 4 | 207683534 | Hex. Flange Screw M8 X 35 |
| 6 | 207761244 | Carriage Bolt M6 X 12 |
| 7 | 224060201 | Flat Washer |
| 8 | 232561434 | Elastic Stop Nut M6 |
| 9 | 233081416 | Hex. Flange Nut M8 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 12 | 234061410 | Flat Washer 6 mm |
| 13 | 234062410 | Flat Washer 6 mm |
| 16 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 18 | 293830005 | Rubber Bumper |
| 20 | 250000574 | Hex. Flange Screw M6 X 12 |
| 21 | 707601544 | Pipe Gasket |
| 22 | 709000582 | Grommet This part replaces 293720053. |
| 23 | 293900105 | Bushing |
| 24 | 293900116 | Spacer Bushing |
| 25 | 250200082 | Flat Washer |
| 26 | 415107100 | Spring |
| 27 | 250200158 | Flat Washer M8 |
| 27 | 503032900 | Washer |
| 28 | 707600317 | Gasket |
| 29 | 707600448 | Rubber |
| 32 | 703501072 | Kit Muffler This part replaces 707601411. |
| 33 | 707603323 | Vibration Damper This part replaces 707600701. |
| 39 | 707600764 | Front Head Pipe |
| 40 | 707600932 | Pipe Protector |
| 42 | 293650177 | Norma Gear Clamp |
| 43 | 707601484 | Protector |
| 45 | 707601446 | Rear Head Pipe |
| 46 | 707601429 | REAR HEAT SHIELD - Call your local BRP dealership |
| 48 | 707600996 | Heat Shield |
| 50 | 707603724 | Heat Shield This part replaces 707601486. |
| 54 | 707601425 | Protector |
