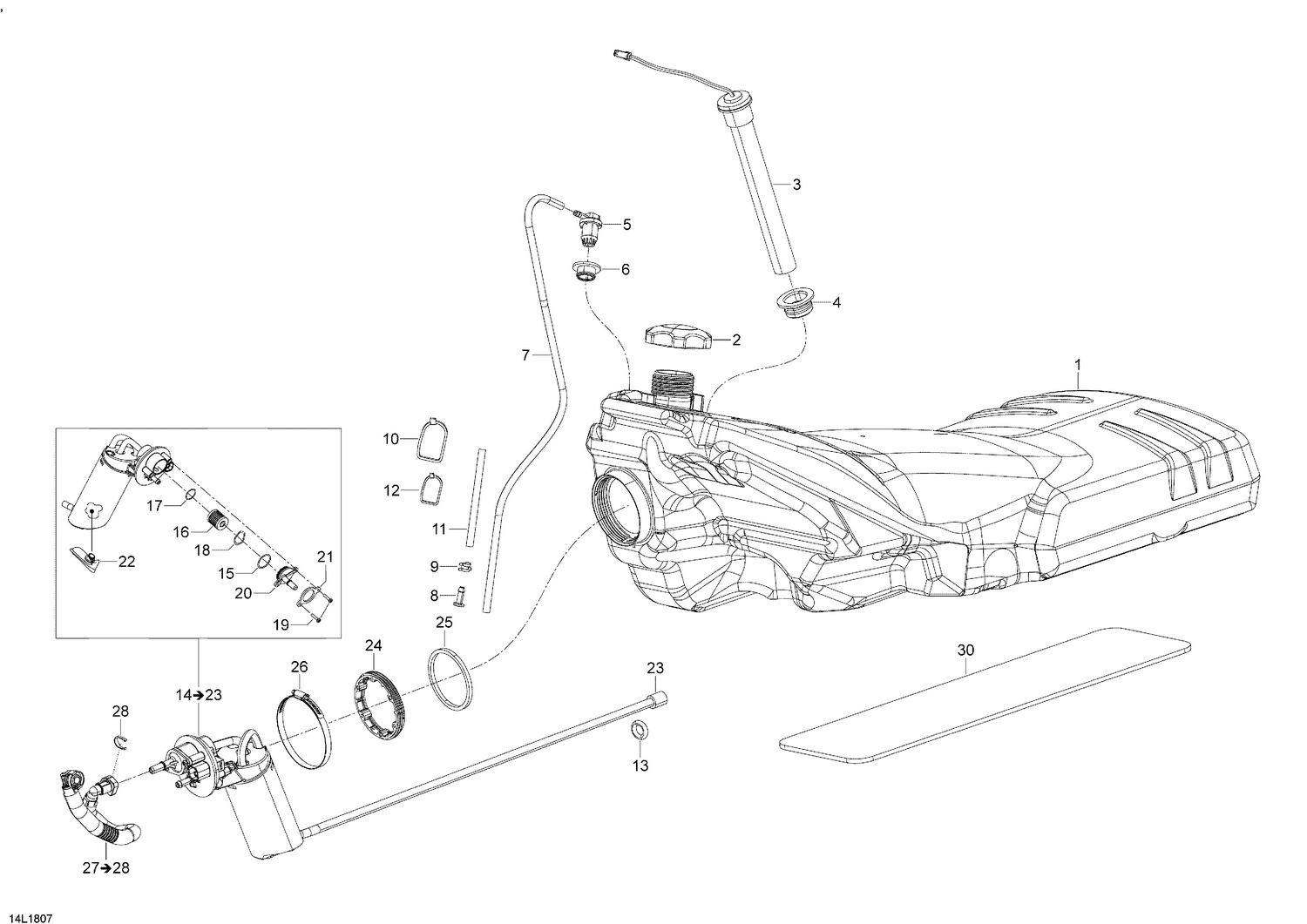

02- Fuel ACE & 4-TEC
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 513033538 | Fuel Sensor |
| 5 | 513033842 | Check Valve |
| 9 | 414554800 | Spring Clamp |
| 10 | 414115200 | Tie-Rap 180 mm |
| 11 | 504153468 | Protector Tube |
| 12 | 293750002 | Tie Wrap 142 mm |
| 13 | 293300184 | O Ring |
| 15 | 415129509 | O-Ring |
| 17 | 415129511 | O-Ring |
| 18 | 415129512 | Wave Washer |
| 19 | 415129513 | Screw |
| 20 | 415129685 | Cover |
| 21 | 415129569 | FUEL PUMP RING - Call your local BRP dealership |
| 22 | 415129451 | Fuel Filter |
| 24 | 513033180 | Ring |
