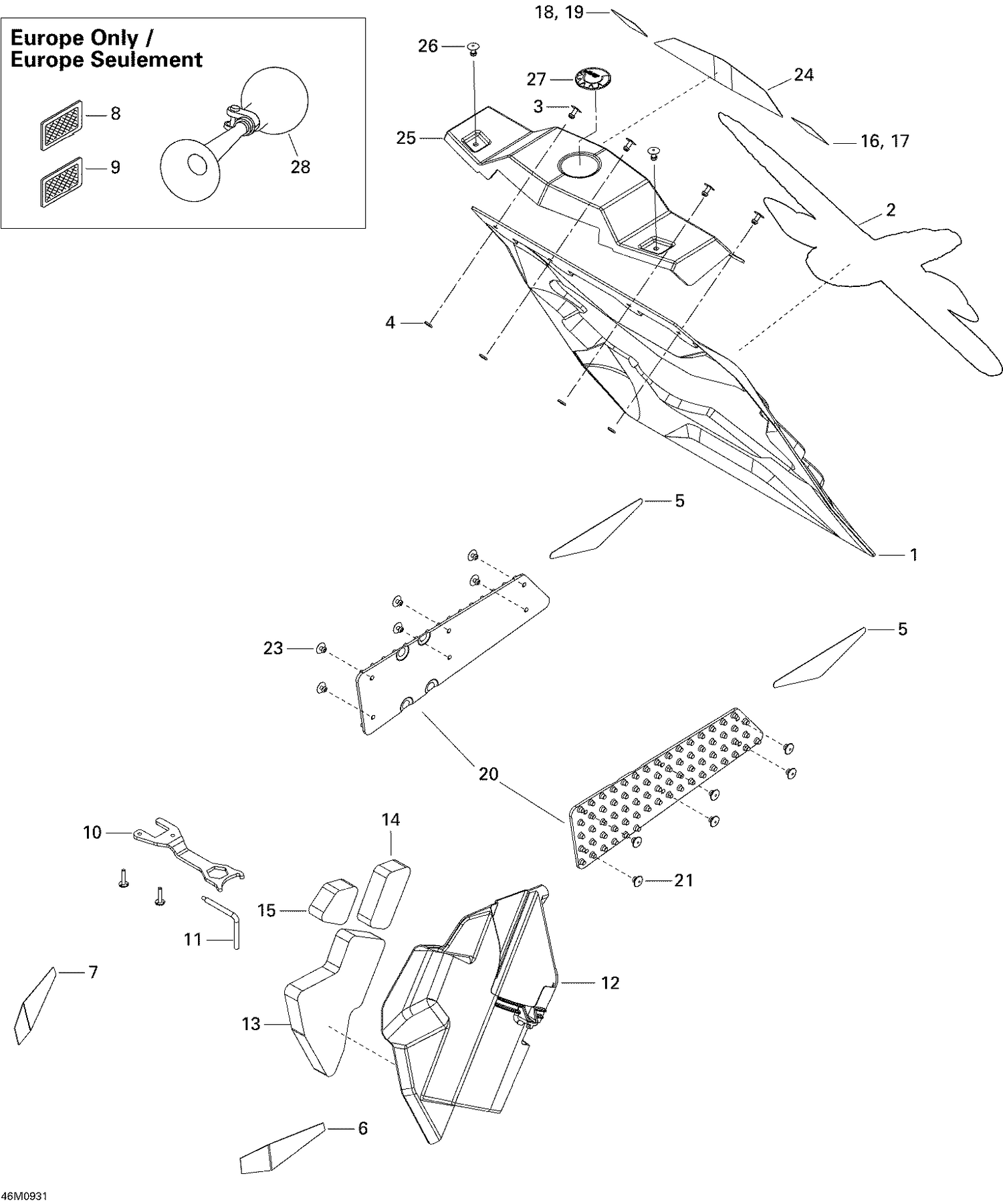

09- Utilities
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001441 | Snow Flap This part replaces 520000669. |
| 2 | 516003647 | Decal X |
| 3 | 293150104 | Pop Rivet 3/16" |
| 4 | 517225900 | Flat Washer |
| 6 | 520000718 | Yellow, RH Front Reflector |
| 7 | 520000719 | Yellow, LH Front Reflector |
| 10 | 520000721 | WRENCH - Call your local BRP dealership |
| 11 | 417127044 | Belt Installation Tool |
| 12 | 520000842 | Tool Kit Rack |
| 13 | 520001059 | Foam This part replaces 520000743. |
| 14 | 520001061 | Foam This part replaces 520000753. |
| 15 | 520001062 | Foam This part replaces 520000754. |
| 16 | 520000695 | WARNING DECAL, SECURITY - Call your local BRP dealership |
| 17 | 520000696 | WARNING DECAL-SECURITY-FRENCH - Call your local BRP dealership |
| 18 | 520000697 | WARNING DECAL, LOAD - Call your local BRP dealership |
| 19 | 520000698 | Warning Decal-Load-French |
| 20 | 860200164 | Grip Plate Kit |
| 21 | 293150103 | Pop Rivet 3/16" |
| 23 | 293150103 | Pop Rivet 3/16" |
| 24 | 520000764 | REFLECTOR - Call your local BRP dealership |
| 25 | 520000750 | COVER - Call your local BRP dealership |
| 26 | 293150104 | Pop Rivet 3/16" |
| 27 | 516008738 | BRP Logo 48mm This part replaces 219902468. |
