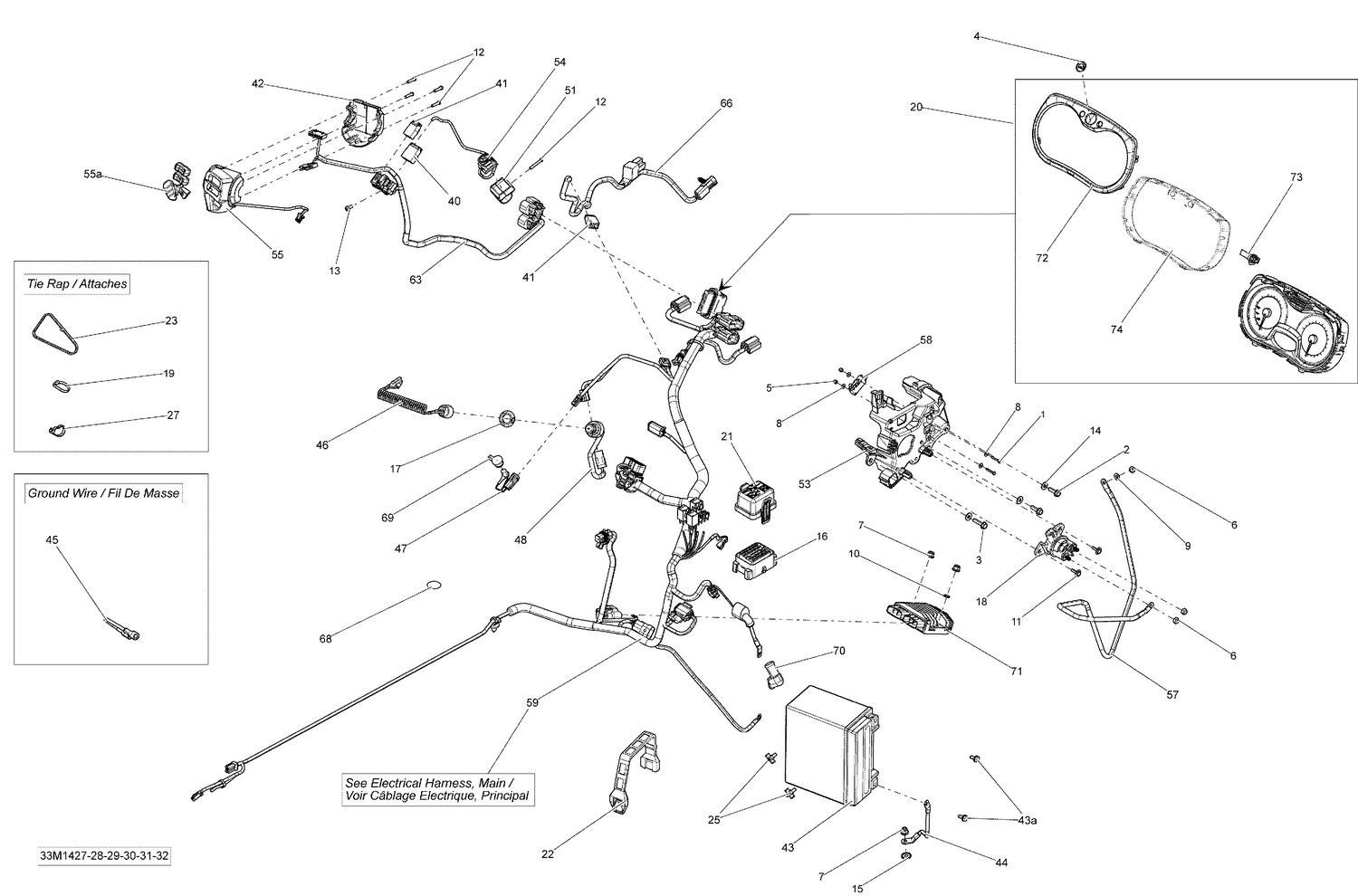

10- Electrical System
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207132044 | Hex Screw M3 X 20 |
| 2 | 210262040 | Hex. Flange Screw M6 X 20 |
| 3 | 210262550 | Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 4 | 516006224 | BRP Logo 20MM x 2MM This part replaces 219902677. |
| 5 | 232531423 | Elastic Stop Nut M3 |
| 6 | 232561414 | Elastic Stop Nut M6 |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 234032600 | Flat Washer M3, Stainless |
| 9 | 234061410 | Flat Washer 6 mm |
| 10 | 234461608 | External Serrated Lock Washer 6 mm |
| 11 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 12 | 250000263 | Torx Screw #8-18 |
| 13 | 250000690 | Pan Screw Forming, 7500C |
| 14 | 250200039 | Flat Washer |
| 15 | 250200041 | Lock Washer Serrated M6 |
| 16 | 278002824 | Case Ass'y with seal, 24 positions |
| 17 | 278002963 | Safety Nut (DESS Switch) |
| 18 | 278003012 | Starter Relay |
| 19 | 293750002 | Tie Wrap 142 mm |
| 20 | 515177911 | Indicator This part replaces 515177566. |
| 21 | 515177671 | Fuse Box Cover |
| 22 | 515176944 | Strap |
| 23 | 293750008 | Tie Wrap 368 mm |
| 25 | 293750009 | Tie-Rap 173 mm |
| 27 | 414115200 | Tie-Rap 180 mm |
| 40 | 515175662 | Male Terminal Housing, 6 Circuits |
| 41 | 515175846 | Male Terminal Housing, 4 Circuits |
| 42 | 515175926 | Switch Housing Plate |
| 43 | 415129898 | Battery YUASA YTX20HL This part replaces 296000295. |
| 43a | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 44 | 515176943 | Ground Wire |
| 45 | 515177014 | Ground Wire |
| 46 | 515178284 | DESS This part replaces 515177057. |
| 47 | XXX | Not Available As Spare Parts |
| 48 | 515177249 | DESS Switch |
| 51 | 515177310 | Emergency Stop Switch Support |
| 53 | 515177347 | Plate |
| 54 | 515177362 | Emergency Stop Switch |
| 55a | 515176088 | Start/RER Button |
| 57 | 515177427 | Battery Wire |
| 58 | 515177460 | Switch Ass'y |
| 59 | 515177512 | WIRING HARNESS MAIN - Call your local BRP dealership |
| 63 | 515177610 | COMMODO HARNESS - Call your local BRP dealership |
| 66 | 515177646 | Fan Harness |
| 68 | 518325560 | Adhesive Patch |
| 69 | XXX | Not Available As Spare Parts |
| 70 | 710000495 | Protector Cap |
| 71 | 710010539 | Voltage Regulator This part replaces 515177325. |
| 72 | 415129370 | Gauge Ring |
| 73 | 415129355 | Speedometer Button |
