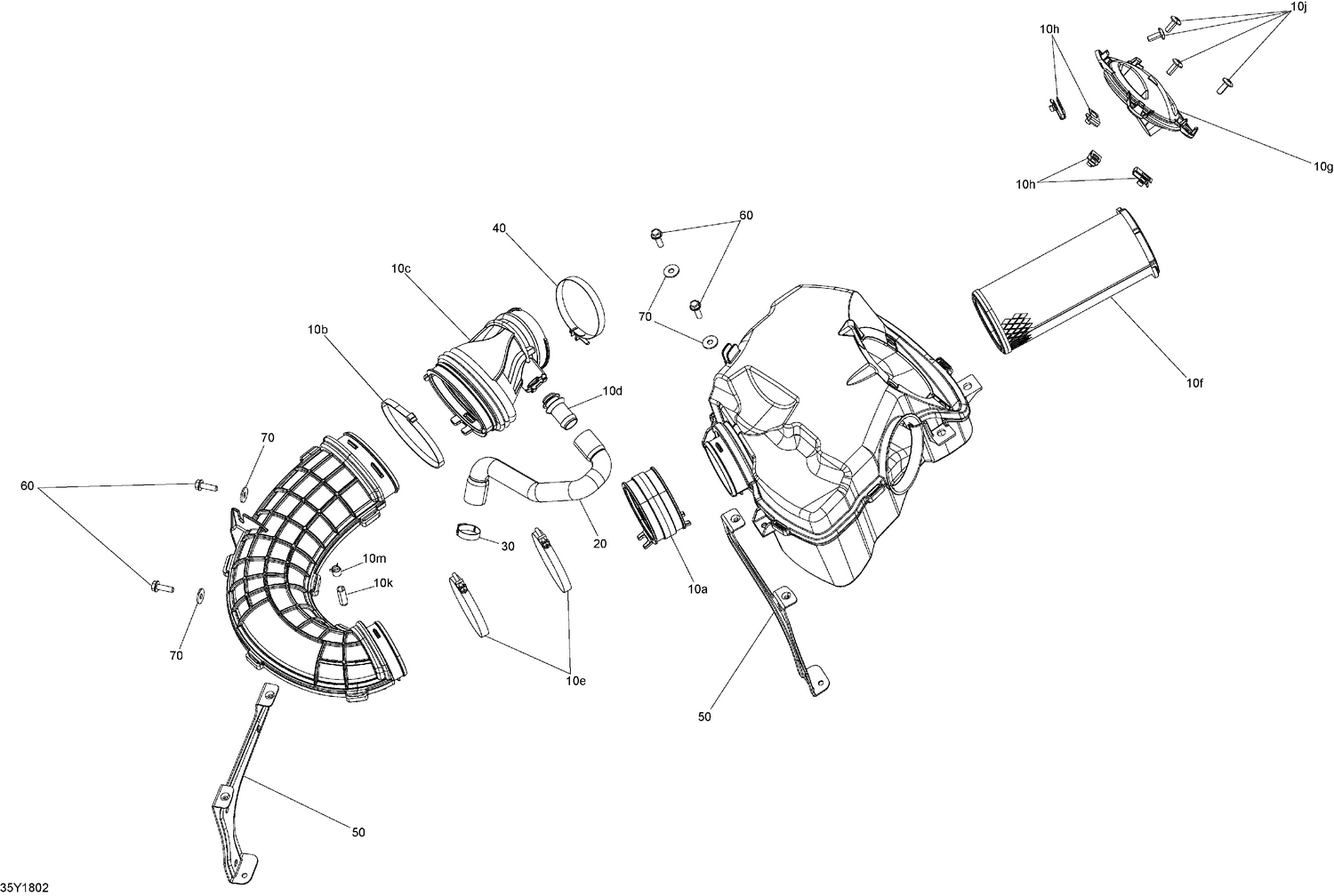

02- Air Intake
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 707800590 | Intake Adaptor |
| 10b | 509000165 | Tie Rap |
| 10c | 707800388 | Air Intake Adaptor |
| 10d | 273000234 | Breather Valve |
| 10e | 508000150 | Gemi Clamp |
| 10f | 707800483 | Air Filter |
| 10g | 707801131 | Cover This part replaces 707800596. |
| 10h | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 10j | 250000348 | Torx Truss Screw M6 X 16 |
| 10k | 293000105 | Cap Plug |
| 10m | 414554800 | Spring Clamp |
| 20 | 707800824 | Formed Hose |
| 30 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 40 | 508000346 | Gemi Clamp |
| 50 | 707800602 | Air Intake Bracket |
| 60 | 250000768 | Hex. Flange Screw M6 X 20 |
