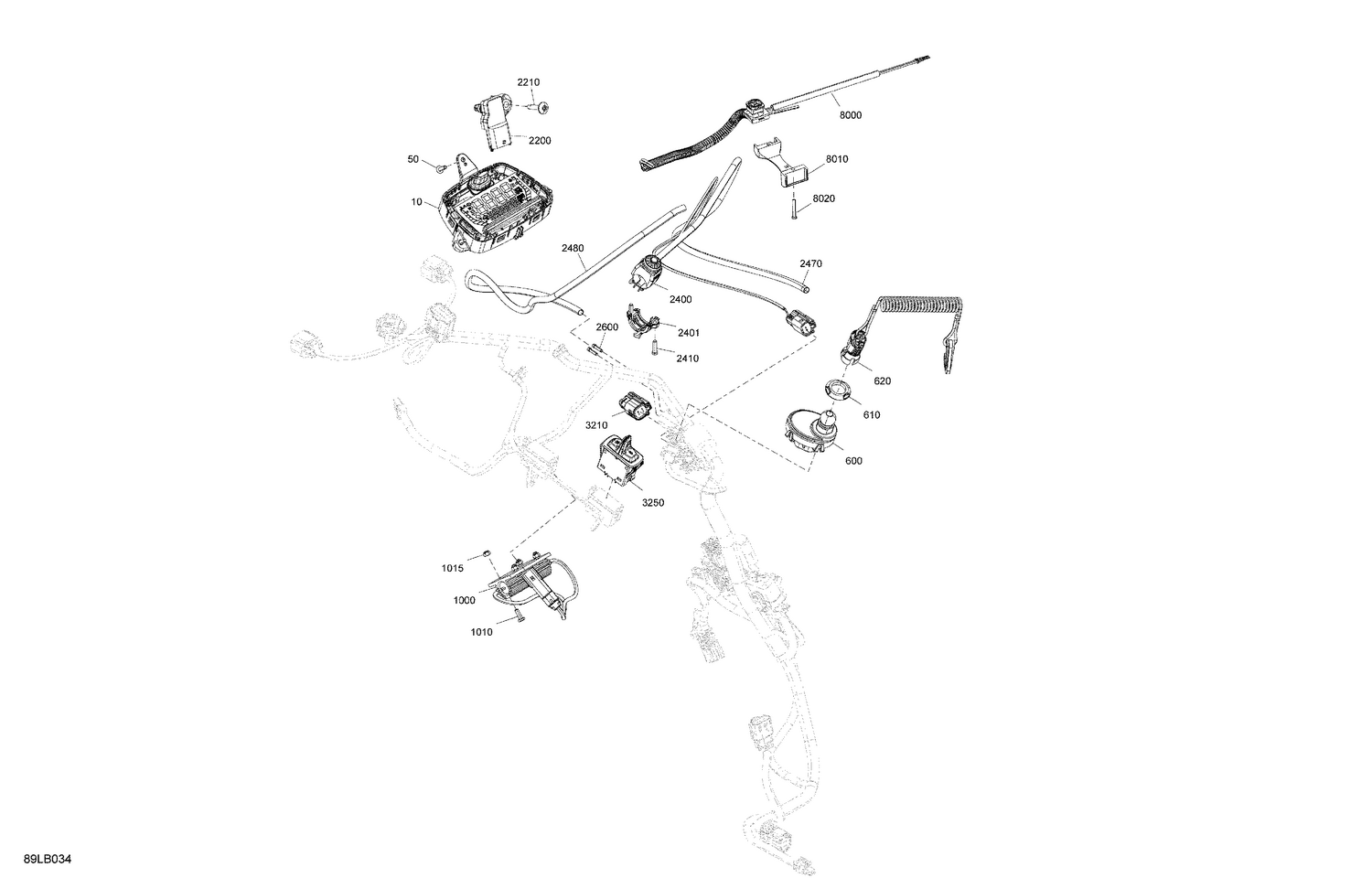

08- Electric - Upper Section
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515178835 | Indicator |
| 50 | 250001131 | Torx Truss PT K40 x 12 |
| 600 | 515178840 | Terminal Dess One-Wire This part replaces 710007242. |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178288 | Key |
| 1000 | 515178831 | Resistor Ass'y |
| 1010 | 207141260 | Screw Hex. M4 X 12 |
| 1015 | 232541484 | Elastic Stop Nut M4 |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 250000587 | Torx Screw M5 X 26 |
| 2400 | 515178857 | Ignition Switch |
| 2401 | 515177952 | Clamp |
| 2410 | 250000671 | Torx Screw |
| 2470 | 415130141 | Sleeve |
| 2480 | 415130141 | Sleeve |
| 2600 | 293000052 | Sealing Cap |
| 3250 | 515178462 | Switch Rocker Hand Warmer |
| 8000 | 515177931 | Emergency Stop Switch |
| 8010 | 515177310 | Emergency Stop Switch Support |
