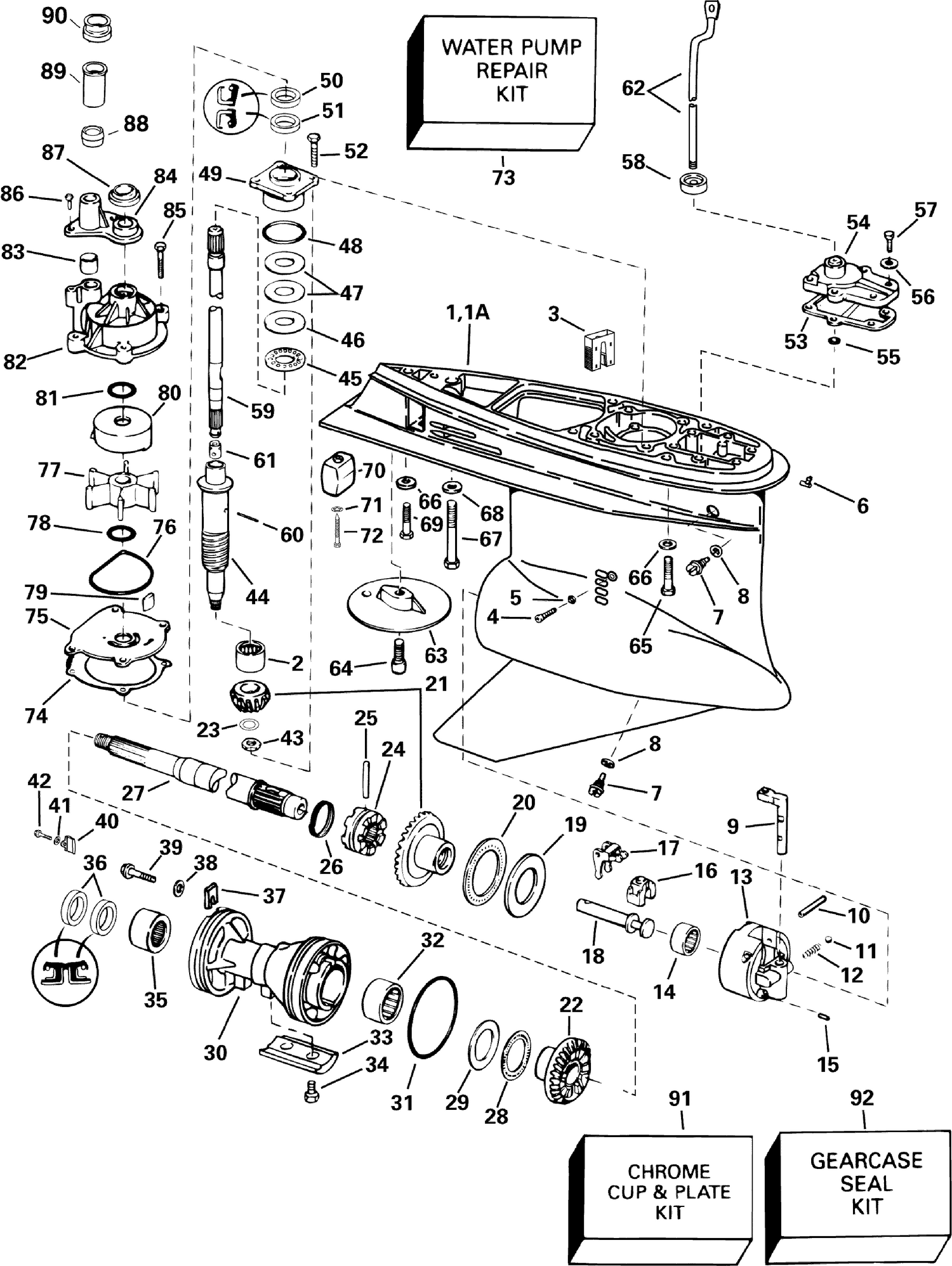

| Ref | Part Number | Description |
|---|
| 1 |
5009340 |
GEARCASE Assembly, Complete This part replaces 5006556. |
| 59 |
5007671 |
DRIVESHAFT Assembly, Upper This part replaces 5000614. |
| 59 |
5007672 |
DRIVESHAFT Assembly, Upper This part replaces 5000623. |
| 62 |
0329864 |
SHIFT ROD |
| 62 |
0329865 |
SHIFT ROD |
| 63 |
0336284 |
COVER, Trim tab opening |
| 64 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 65 |
0331999 |
SCREW, Gearcase housing |
| 67 |
0331998 |
SCREW, Gearcase to housing |
| 69 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 73 |
5001595 |
Water Pump Repair Kit |
| 76 |
0331353 |
Seal, Impeller Housing Plate. |
| 81 |
0331188 |
O-Ring |
| 91 |
0435526 |
CHROME CUP & PLATE KIT |
| 0338552 |
*PLATE, |
Impeller 0338552 |
