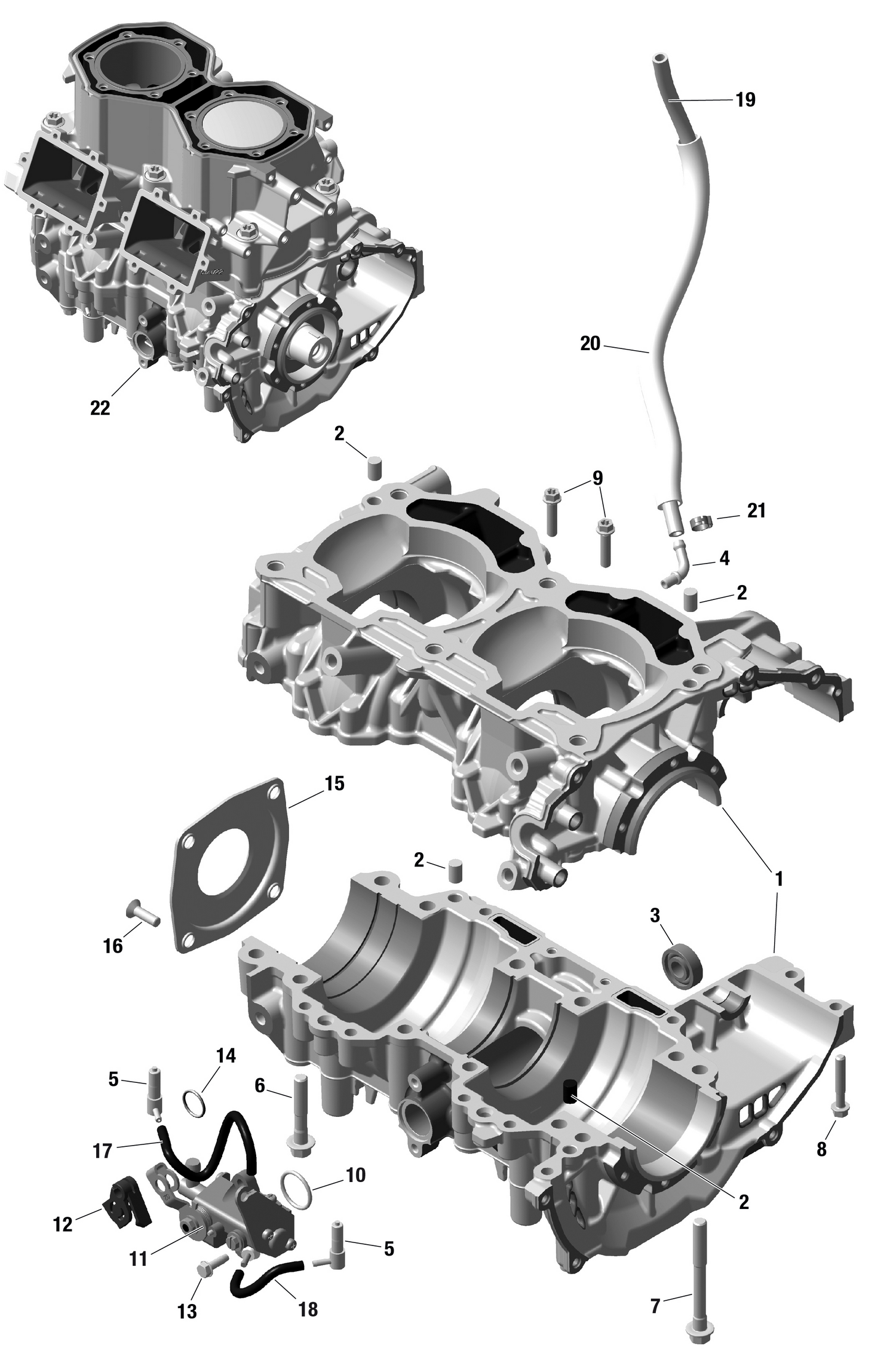

01- ROTAX - Crankcase
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420232100 | Ball Bearing |
| 4 | 420924529 | Impulse Fitting |
| 5 | 420956511 | Check Valve |
| 6 | 420640433 | Collar Hex Screw M8 X 45 |
| 7 | 420640833 | Collar Hex Screw M8 X 75 |
| 8 | 420440274 | Flanged Torx Screw M6 X 35 |
| 9 | 420440234 | Flanged Torx Screw M6 X 25 |
| 12 | 420260171 | Lever |
| 13 | 420941926 | Taptite Screw M5 X 16 |
| 14 | 420430110 | O-Ring |
| 15 | 420812422 | Oil Seal Cover |
| 16 | 420941436 | Screw M6 X 20 |
| 17 | 420960043 | Oil Line 150MM |
| 18 | 414413800 | Oil line This part replaces 420201241. |
| 19 | 420201551 | Oil Line 310MM |
| 20 | 420460047 | Protector Tube |
| 21 | 420853653 | Clamp |
