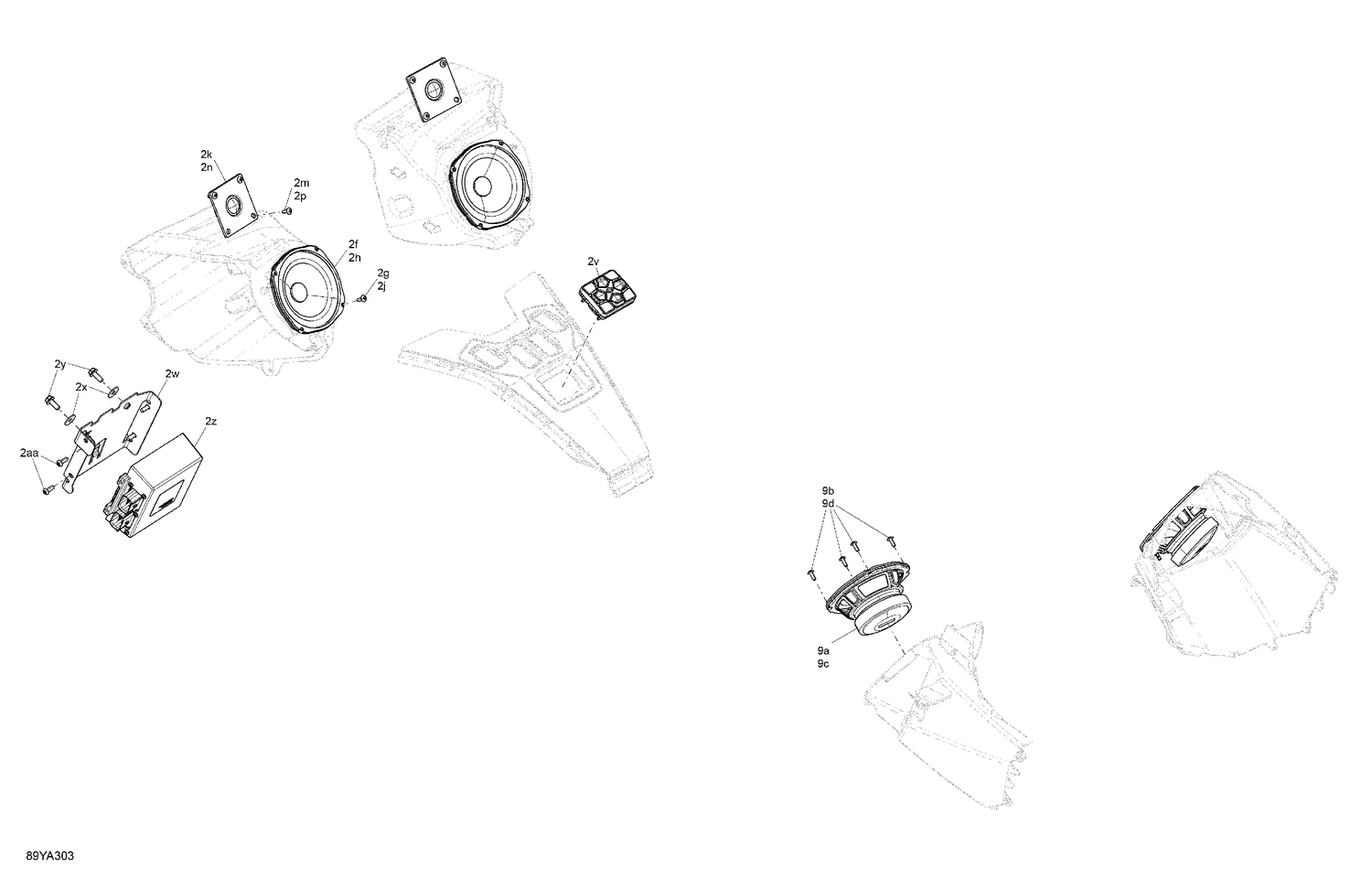

08- Electric - Audio System
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2aa | 235551454 | Screw-Torx Button Head M5 X 14 |
| 2f | 710005433 | Haut-Parleur 4.5" |
| 2g | 250001131 | Torx Truss PT K40 x 12 |
| 2h | 710005433 | Haut-Parleur 4.5" |
| 2j | 250001131 | Torx Truss PT K40 x 12 |
| 2k | 710006796 | Loudspeaker Tweeter |
| 2m | 250001131 | Torx Truss PT K40 x 12 |
| 2n | 710006796 | Loudspeaker Tweeter |
| 2p | 250001131 | Torx Truss PT K40 x 12 |
| 2v | 710006793 | Audio Keypad |
| 2w | 710005814 | Amplifier Holder |
| 2x | 234062670 | Stainless Steel Flat Washer |
| 2y | 210261650 | Hex. Flange Screw M6 X 16 |
| 2z | 710006566 | Amplifier 6 x 20 Watts |
| 9a | 710005433 | Haut-Parleur 4.5" |
| 9b | 250001131 | Torx Truss PT K40 x 12 |
| 9c | 710005433 | Haut-Parleur 4.5" |
