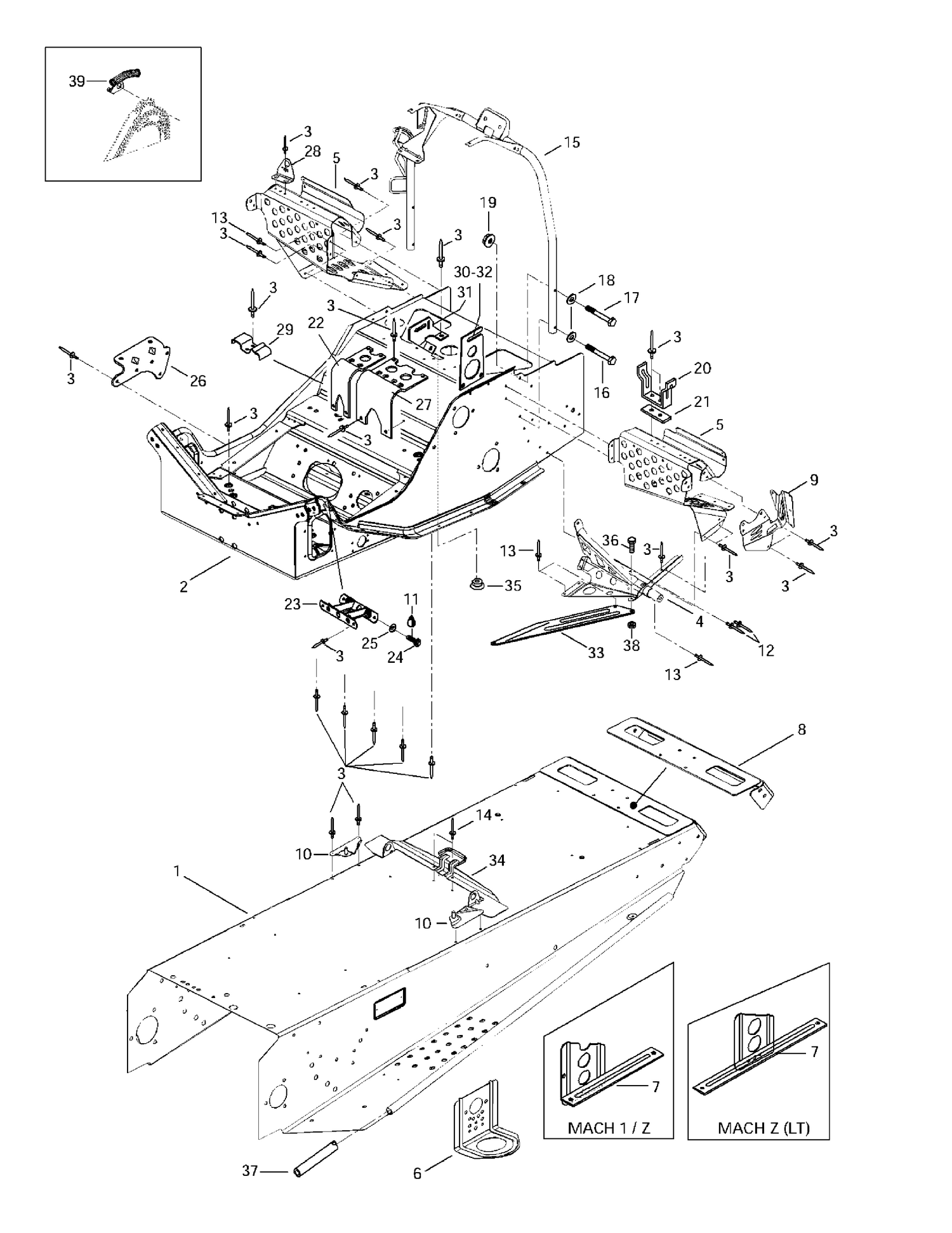

| Ref | Part Number | Description |
|---|
| 3 |
390402200 |
Pop Rivet 3/16" |
| 4 |
518316702 |
LH Support |
| 5 |
518312906 |
RH Front Footrest |
| 6 |
518312910 |
Front Bracket |
| 9 |
518312908 |
Side Plate L.H |
| 10 |
518304735 |
RH Tank Bracket |
| 11 |
293800005 |
Loctite 271, 10 ml This part replaces 413707400. |
| 12 |
390909200 |
Avex Rivet |
| 13 |
390909100 |
Avex Rivet |
| 14 |
390402400 |
Pop Rivet 3/16" |
| 15 |
518304743 |
Handle Steering Support |
| 16 |
207064044 |
Hex. Screw M6 X 40 This part replaces 222064065. |
| 17 |
207063544 |
Hex. Flange Screw M6 X 35 This part replaces 222063565. |
| 18 |
234061410 |
Flat Washer 6 mm This part replaces 224061151. |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 20 |
518202100 |
Belt Guard Bracket |
| 21 |
518207500 |
REINFORCEMENT - Call your local BRP dealership |
| 22 |
518310800 |
Air Silencer Support |
| 23 |
518304741 |
Reinf. Plate |
| 24 |
207182044 |
Hex. Screw M8 X 20 This part replaces 222082065. |
| 25 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 26 |
518206300 |
Muffler Support |
| 27 |
518310400 |
AIR INTAKE SUPPORT - Call your local BRP dealership |
| 28 |
518310206 |
Valve Bracket |
| 29 |
518207800 |
Protector |
| 30 |
517252000 |
External Bracket |
| 31 |
518313900 |
Internal Bracket |
| 32 |
390909200 |
Avex Rivet |
| 33 |
518316709 |
RH Reinforcement Plate |
| 34 |
518310208 |
Seat Bracket |
| 35 |
414859400 |
CAP - Call your local BRP dealership |
| 36 |
207151644 |
Hex. Screw M5 X 16 This part replaces 222051665. |
| 37 |
518304746 |
FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 38 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 518304736 |
LH |
Tank Bracket 518304736 |
| 518312907 |
LH |
Front Footrest 518312907 |
| 518312907 |
Repose-Pied |
Avant GA 518312907 |
| 518312909 |
Side |
Plate R.H 518312909 |
| 518316703 |
Attache |
DR 518316703 |
| 518316703 |
RH |
Support 518316703 |
| 518316710 |
LH |
Reinforcement. Plate 518316710 |
