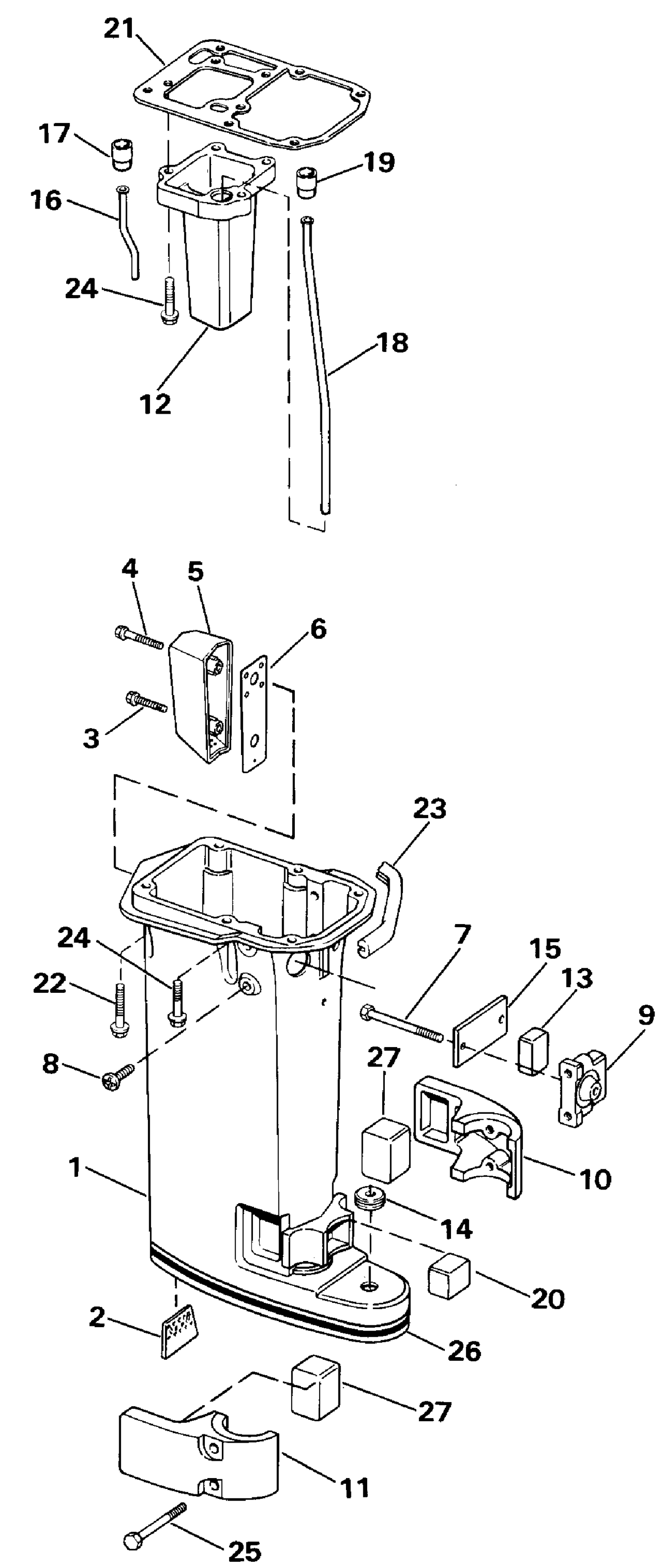

| Ref | Part Number | Description |
|---|
| 1 |
0432442 |
EXHAUST HOUSING ASSY. |
| 2 |
0322210 |
BAFFLE , Exhaust hsg. |
| 6 |
0334533 |
GASKET, Muffler |
| 7 |
0313600 |
SCREW, Upper mounts to steering bracket |
| 8 |
0319125 |
SCREW |
| 9 |
0431641 |
MOUNT ASST., Upper |
| 10 |
0329021 |
MOUNT BRACKET, Lower port |
| 11 |
0329020 |
MOUNT BRACKET, Lower, stbd |
| 12 |
0330440 |
EXHAUST TUBE, Inner |
| 13 |
0329045 |
THRUST MOUNT, Upper |
| 14 |
0319229 |
GROMMET, Exh, hsg, to shift rod |
| 15 |
0339613 |
PLATE, Upper mounts This part replaces 0329047. |
| 16 |
0395125 |
TUBE, Water outlet |
| 18 |
0395122 |
WATER TUBE & GROMMET, Inlet, std. |
| 18 |
0395123 |
EATER TUBE, Long |
| 20 |
0329046 |
THRUST MOUNT |
| 21 |
0325721 |
GASKET, Cyl. & c'case to lower engine cover |
| 23 |
0319280 |
SEA.,Exhaust housing to lower motor cover |
| 25 |
0319042 |
SCREW BRACKET AND CLAMPSCREW ASSY., Port |
| 26 |
0211387 |
DECAL Exh. hsg., Ev. |
| 26 |
0332635 |
DECAL, Exh. hsg. Jo. |
