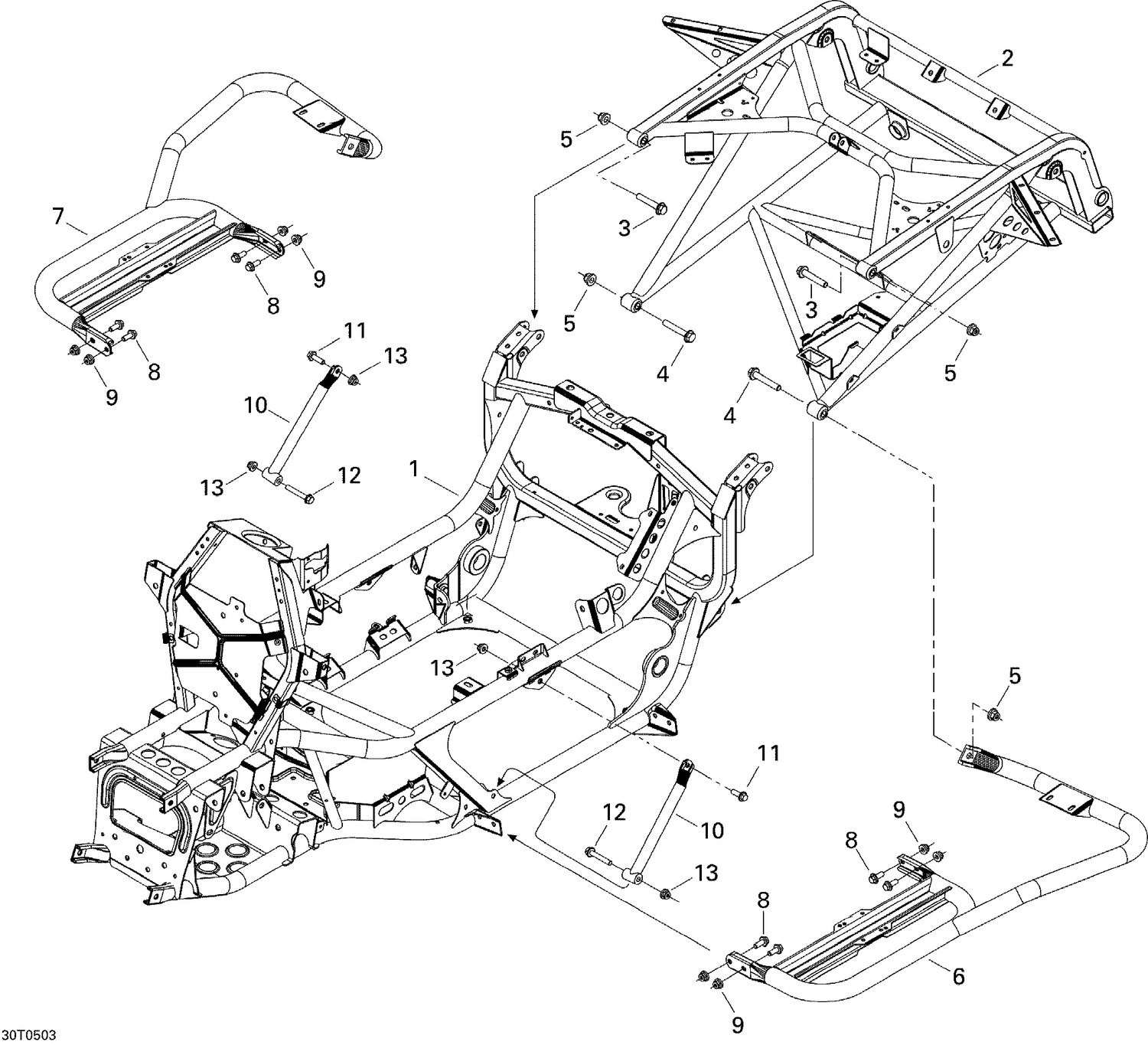

09- Frame, System
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705201037 | Frame, black |
| 2 | 705200825 | Frame Extention, black |
| 3 | 207605544 | Hex. Flange Screw M10 X 55 |
| 4 | 207606044 | Hex. Flange Screw M10 X 60 |
| 5 | 233201414 | Hex. Flange Elastic Nut M10 |
| 6 | 705200887 | LH Footrest, black |
| 7 | 705200888 | RH Footrest, black |
| 8 | 207682044 | Hex. Flange Screw M8 X 20 |
| 9 | 233281414 | Hex. Flange Elastic Nut M8 |
| 10 | 705200143 | Removable Brace, Black |
| 11 | 207682544 | Hex. Flange Screw M8 X 25 |
| 12 | 207685044 | Hex. Flange Screw M8 X 50 |
