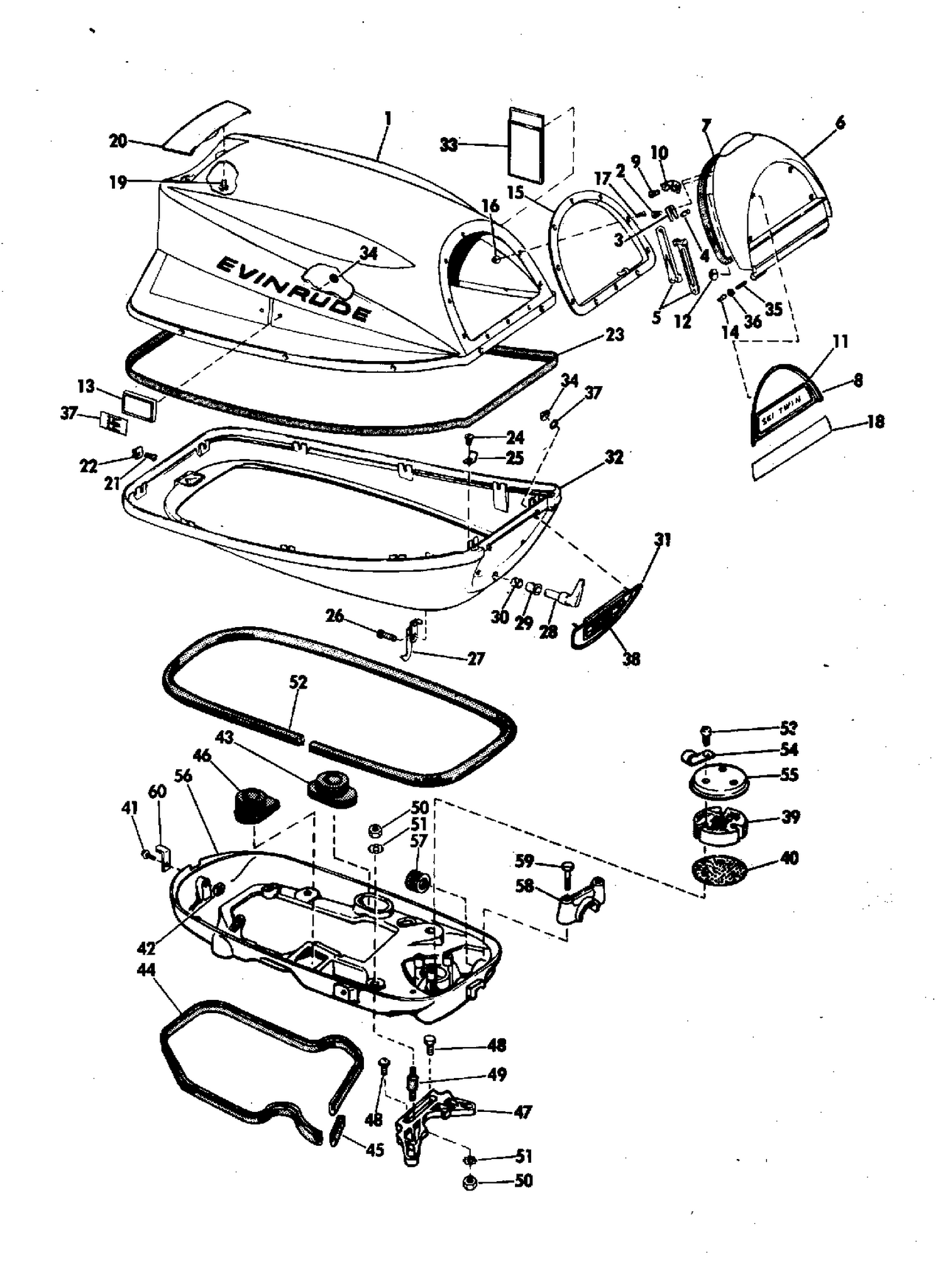

| Ref | Part Number | Description |
|---|
| 1 |
0279321 |
MOTOR COVER ASSEMBLY |
| 2 |
0307920 |
SCREW |
| 3 |
0307690 |
RETAINER, Pivot pin |
| 4 |
0204878 |
PIN, Slide pivot |
| 5 |
0204916 |
SLIDE, Door |
| 6 |
0279356 |
DOOR ASSY |
| 8 |
0206630 |
APPLIQUE, Door |
| 11 |
0206632 |
PLATE, Door |
| 13 |
0206646 |
APPLIQUE, Port & stbd |
| 14 |
0204292 |
HINGE PIN, Front door |
| 15 |
0278412 |
DOOR FRAME ASSEMBLY |
| 18 |
0206634 |
PLATE, Door |
| 19 |
0204936 |
SCREW, Tilt handle |
| 20 |
0204800 |
HANDLE, Tilting |
| 21 |
0204904 |
SCREW, Cover fastener |
| 22 |
0204903 |
FASTENER COVER SCREWS |
| 23 |
0205630 |
SEAL, Cover halves |
| 24 |
0307907 |
SCREW |
| 25 |
0307908 |
SPRING |
| 26 |
0303311 |
SCR,Clamp,eng cable |
| 27 |
0378322 |
LINK & HOOK |
| 28 |
0204877 |
HANDLE, Front latch |
| 29 |
0204888 |
SLEEVE BEARING, Cover latch |
| 30 |
0553769 |
BUSHING |
| 31 |
0206631 |
APPLIQUE |
| 32 |
0205622 |
COVER, Lower half |
| 33 |
0314595 |
CASE, Owner card |
| 35 |
0204294 |
SPRING, Hinge pin |
| 36 |
0204293 |
WASHER, Hinge pin |
| 37 |
0206664 |
PLATE, Applique |
| 38 |
0206633 |
PLATE, Applique |
| 39 |
0305375 |
PAD, Silencer |
| 40 |
0305377 |
PLATE, Silencer |
| 41 |
0307113 |
SCREW, Hook to cover |
| 43 |
0304019 |
CROMMET, CONTROL SHAFT |
| 44 |
0553784 |
SEAL, Lower cover, lalrge |
| 45 |
0553770 |
SEAL, Lower cover, small |
| 46 |
0306222 |
GROMMET |
| 47 |
0384339 |
BRACKET, Lower cover |
| 48 |
0309705 |
SCREW This part replaces 0307155. |
| 49 |
0379061 |
MOUNT, Lower cover |
| 51 |
0306799 |
L'WASHER,Bracket to hsg. |
| 52 |
0206289 |
SEAL, Motor cover |
| 53 |
0311020 |
SCREW, Clamp |
| 54 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 55 |
0305376 |
COVER, Silencer |
| 56 |
0382628 |
LOWER MOTOR COVER ASSEMBLY |
| 57 |
0313779 |
NUT, Shorting switch |
| 58 |
0325972 |
COLLIER, câbles électriques This part replaces 0313786. |
| 60 |
0307290 |
HOOK, Cover to housing |
| 0279357 |
0279357 |
DECAL SET |
