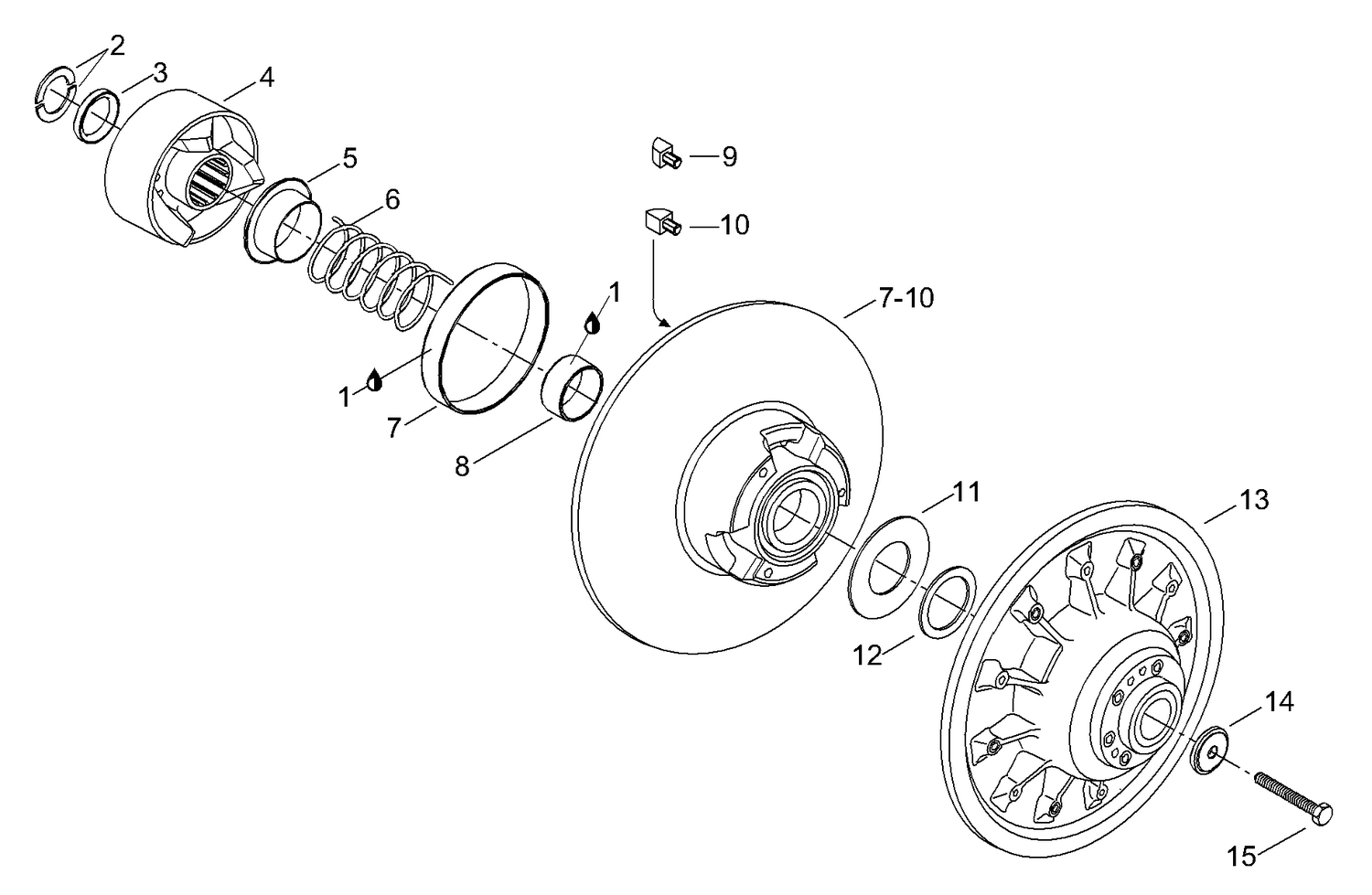

| Ref | Part Number | Description |
|---|
| 1 |
413703100 |
Loctite 609 10cc |
| 2 |
371911000 |
HALF KEY - Call your local BRP dealership |
| 3 |
417126368 |
Spacer |
| 4 |
417126445 |
CAM ASS'Y - Call your local BRP dealership This part replaces 417126574. |
| 5 |
415006000 |
GUARD - Call your local BRP dealership |
| 6 |
415092800 |
YELLOW SPRING - Call your local BRP dealership |
| 7 |
417126902 |
BUSHING - Call your local BRP dealership This part replaces 414978100. |
| 8 |
417126901 |
BUSHING - Call your local BRP dealership This part replaces 415092600. |
| 9 |
417126373 |
Cam slide shoe (rear) |
| 10 |
417126374 |
Cam slide shoe (front) |
| 11 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 12 |
504112300 |
SHIM - Call your local BRP dealership |
| 13 |
417126401 |
FIXED FLANGE ASS'Y - Call your local BRP dealership |
| 14 |
517302322 |
Washer |
