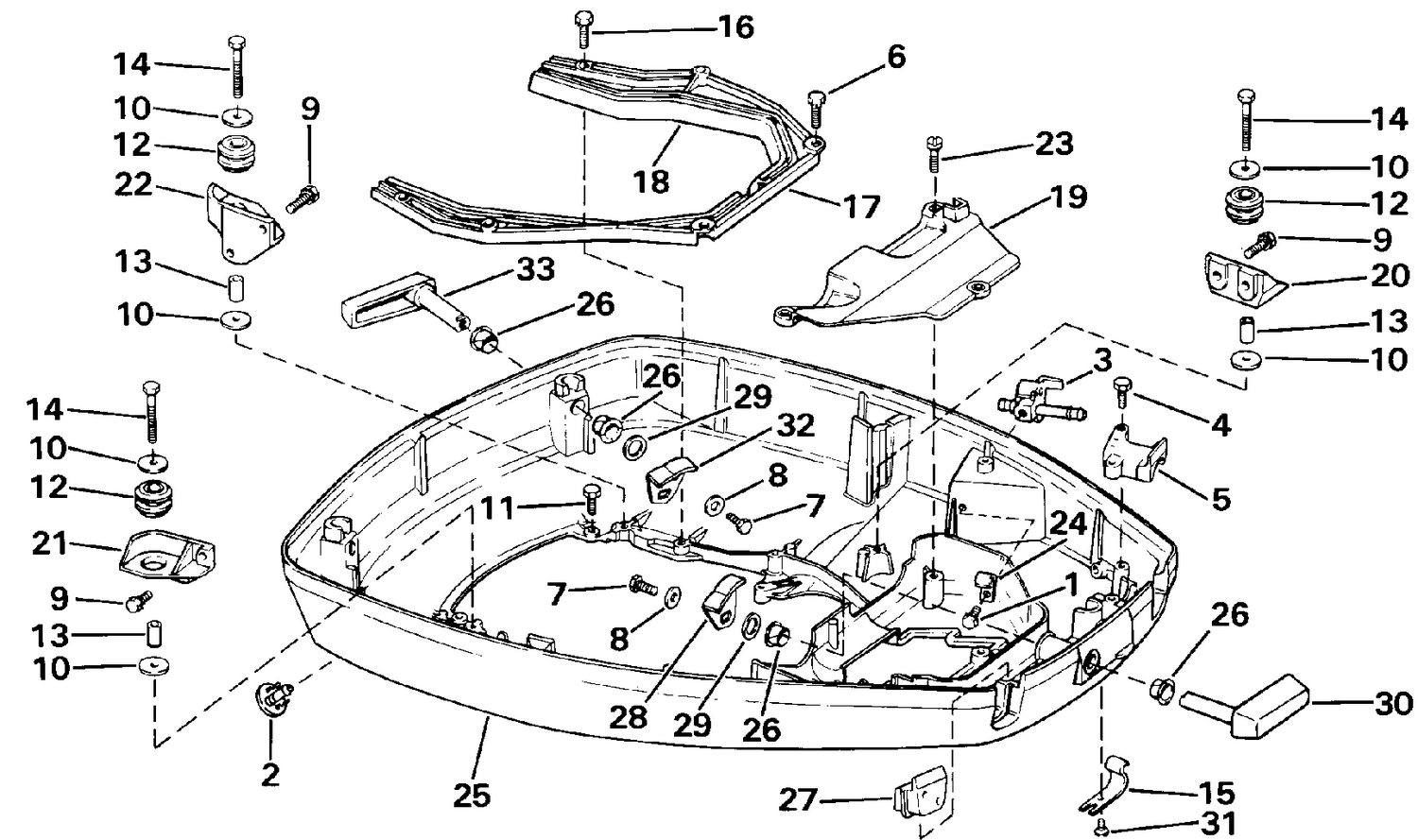

| Ref | Part Number | Description |
|---|
| 1 |
0908159 |
SCREW, Bearing clamp This part replaces 0328728. |
| 2 |
0321885 |
NIPPLE |
| 3 |
0393941 |
FUEL CONNECTOR |
| 4 |
0307151 |
SCREW |
| 5 |
0318849 |
CLAMP, Instrument cable |
| 6 |
0328695 |
CLAMP, Engine cable |
| 7 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 9 |
0328695 |
CLAMP, Engine cable |
| 11 |
0328695 |
CLAMP, Engine cable |
| 12 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 13 |
0302406 |
SLEEVE |
| 14 |
0303398 |
VIS, support |
| 15 |
0333739 |
RETAINER, Fuel hose to cover This part replaces 0329610. |
| 16 |
0307151 |
SCREW |
| 17 |
0392494 |
FRAME AND SEAL ASSY |
| 18 |
0318258 |
SEAL Cover |
| 19 |
0328358 |
COVER ASSY. Air entrance |
| 20 |
0315111 |
SUPPORT, Front |
| 21 |
0315113 |
SUPORT, Stbd, rear |
| 22 |
0315112 |
SUPPORT, Port rear |
| 23 |
0328695 |
CLAMP, Engine cable |
| 25 |
0330148 |
ENGINE COVER, Lower |
| 27 |
0320834 |
GROMMET |
| 28 |
0323170 |
HOOK Front and stbd., rear |
| 30 |
0383641 |
LATCH HANDEL ASSY., Front |
| 31 |
0310539 |
SCREW, Clamp choke solenoid |
| 32 |
0323169 |
HOOK, Lower rear port |
