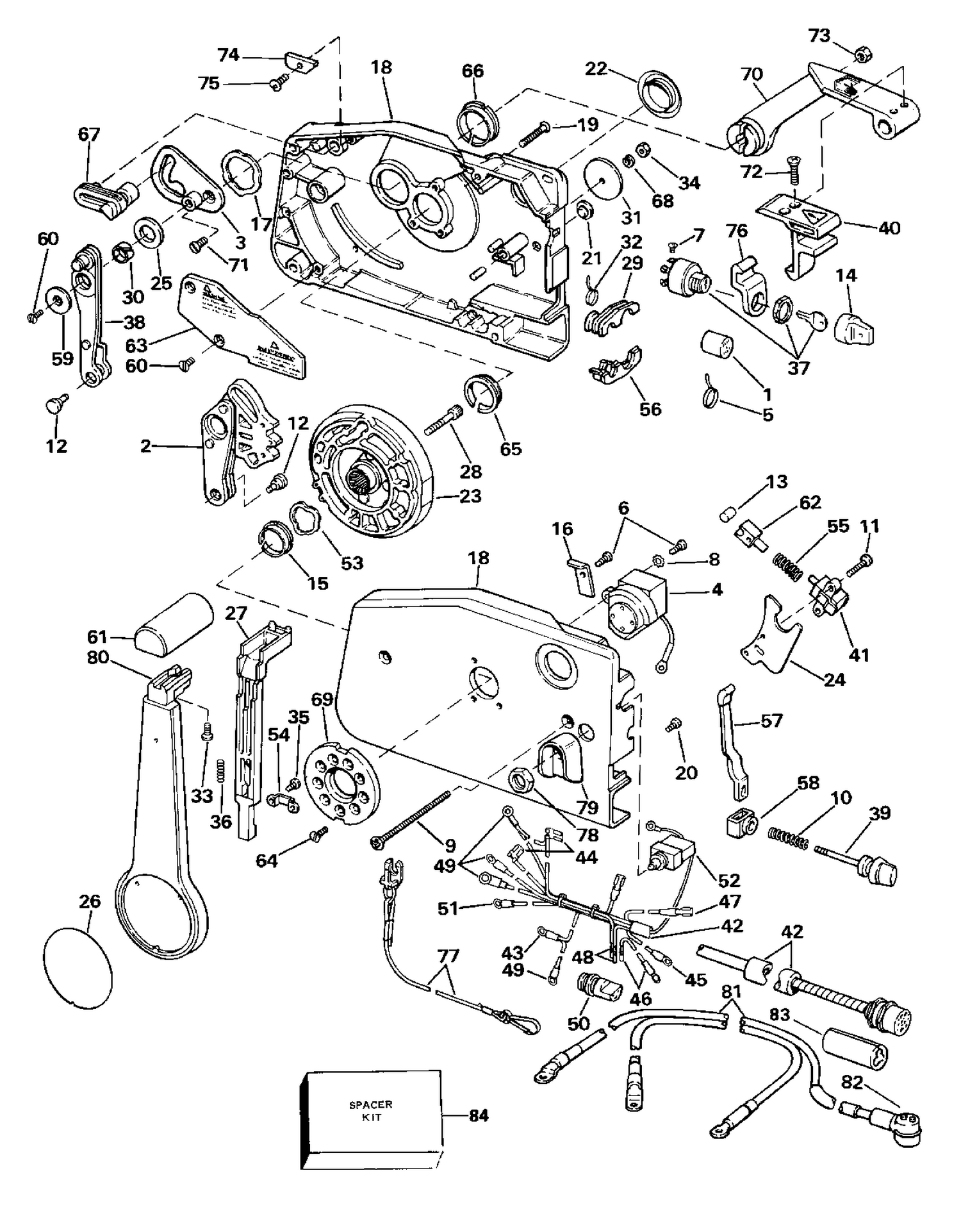

REMOTE CONTROL
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 0585992 | HORN This part replaces 0583891. |
| 5 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 10 | 520001886 | Snow Guard |
| 18 | 0175946 | HOUSING & COVER ASSY. This part replaces 0432719. |
| 20 | 0332200 | CREW,. Ground |
| 20 | 293150104 | Pop Rivet 3/16 |
| 21 | 517124300 | Washer |
| 22 | 0334762 | PLUG |
| 23 | 0389266 | SHAFT & THROTTLE PLATE ASSY. |
| 28 | 0323775 | VIS, collier |
| 29 | 0323762 | GROMMET |
| 42 | 0393129 | CABLE |
| 52 | 0393132 | EMERGECY IGNITION CUT-OFF SWITCH ASSY. |
| 56 | 0323763 | GROMMET |
| 60 | 520001701 | Light Fairing |
| 70 | 0396124 | FAST IDLE LVR KIT |
| 76 | 0331048 | LATCH |
| 79 | 0328170 | GUARD |
| 81 | 0584381 | CÂBLE DE BATTERIE This part replaces 0395390. |
| 100 | 520001773 | Rear Light Support Plate |
| 110 | 293720101 | Grommet |
| 120 | 250000805 | Plastite Screw M4 X 10 |
| 200 | 520001302 | Rear Light |
| 206 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 230 | 705015952 | Rear Reflector |
| 235 | 732610072 | Push Nut |
| 400 | 520003528 | Amber, LH/RH Rear Reflector This part replaces 705016306. |
| 405 | 520002649 | RH Support Tape |
| 410 | 705016307 | Yellow, LH Reflector |
| 415 | 520002650 | LH Support Tape |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 0432718 | 0175945 | REMOTE CONTROL ASSY. This part replaces 0432718. |
