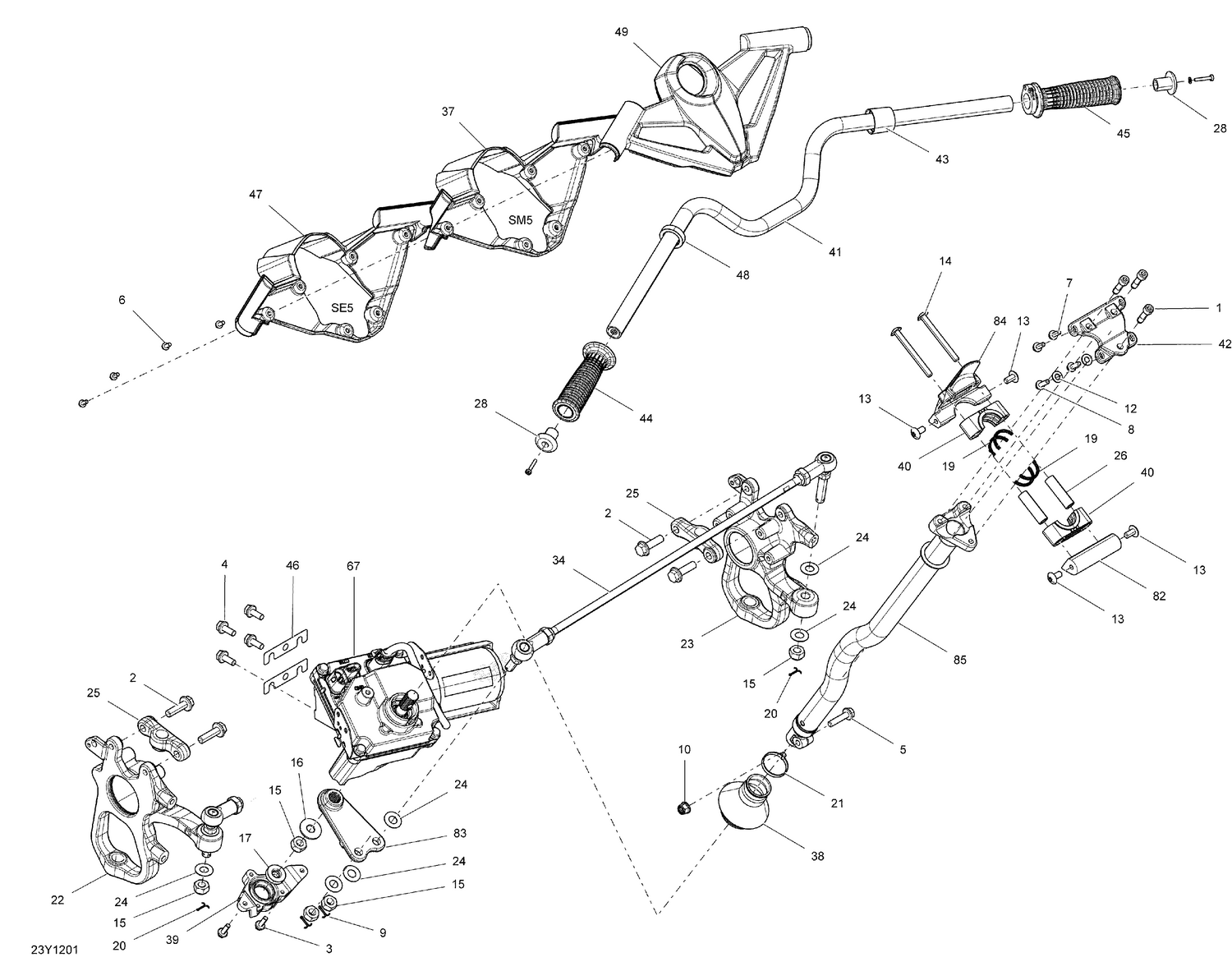

| Ref | Part Number | Description |
|---|
| 1 |
205583034 |
Socket Head Screw, Scotch Grip |
| 2 |
207503534 |
SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership |
| 3 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 4 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 6 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 7 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 8 |
210262050 |
Hexagonal Head Screw This part replaces 210262080. |
| 9 |
250400034 |
Cotter Pin |
| 10 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 12 |
234081410 |
Flat Washer 8 mm |
| 13 |
250000746 |
Torx Truss Screw M8 X 16 This part replaces 250000198. |
| 14 |
250000442 |
Torx Screw, M8 X 80 |
| 15 |
250100089 |
Hex. Elastic Hex. Nut M12 |
| 16 |
250200113 |
Flat Washer, 12 mm |
| 17 |
293200113 |
Seal Ring |
| 19 |
293300120 |
HALF-SEAL - Call your local BRP dealership |
| 20 |
371800700 |
Cotter Pin |
| 21 |
414115200 |
Tie-Rap 180 mm |
| 22 |
505071709 |
KNUCKLE LH - Call your local BRP dealership |
| 23 |
505071711 |
KNUCKLE RH - Call your local BRP dealership |
| 24 |
706200281 |
Hardened Washer This part replaces 250200086. |
| 25 |
706200528 |
UPPER SUPPORT - Call your local BRP dealership |
| 26 |
709400072 |
BUSHING - Call your local BRP dealership |
| 28 |
709400189 |
END-PIECE - Call your local BRP dealership |
| 34 |
709400557 |
TIE ROD ASS`Y - Call your local BRP dealership |
| 38 |
709400454 |
BELLOWS - Call your local BRP dealership |
| 39 |
709400455 |
SENSOR SUPPORT - Call your local BRP dealership |
| 40 |
709400471 |
Half Bushing |
| 41 |
709400483 |
HANDLE BAR - Call your local BRP dealership |
| 42 |
709400481 |
STEERING CLAMP - Call your local BRP dealership |
| 43 |
709400498 |
HANDLE RING - Call your local BRP dealership |
| 44 |
709400516 |
HANDLE GRIP - Call your local BRP dealership |
| 45 |
709400517 |
THROTTLE HANDLE - Call your local BRP dealership |
| 46 |
709400572 |
SHIM - Call your local BRP dealership |
| 82 |
709401153 |
COLOMN REAR SUPPORT - Call your local BRP dealership |
| 83 |
709401417 |
PITMAN ARM - Call your local BRP dealership This part replaces 709400922. |
| 84 |
709400953 |
STEERING COLUMN SUPPORT - Call your local BRP dealership |
