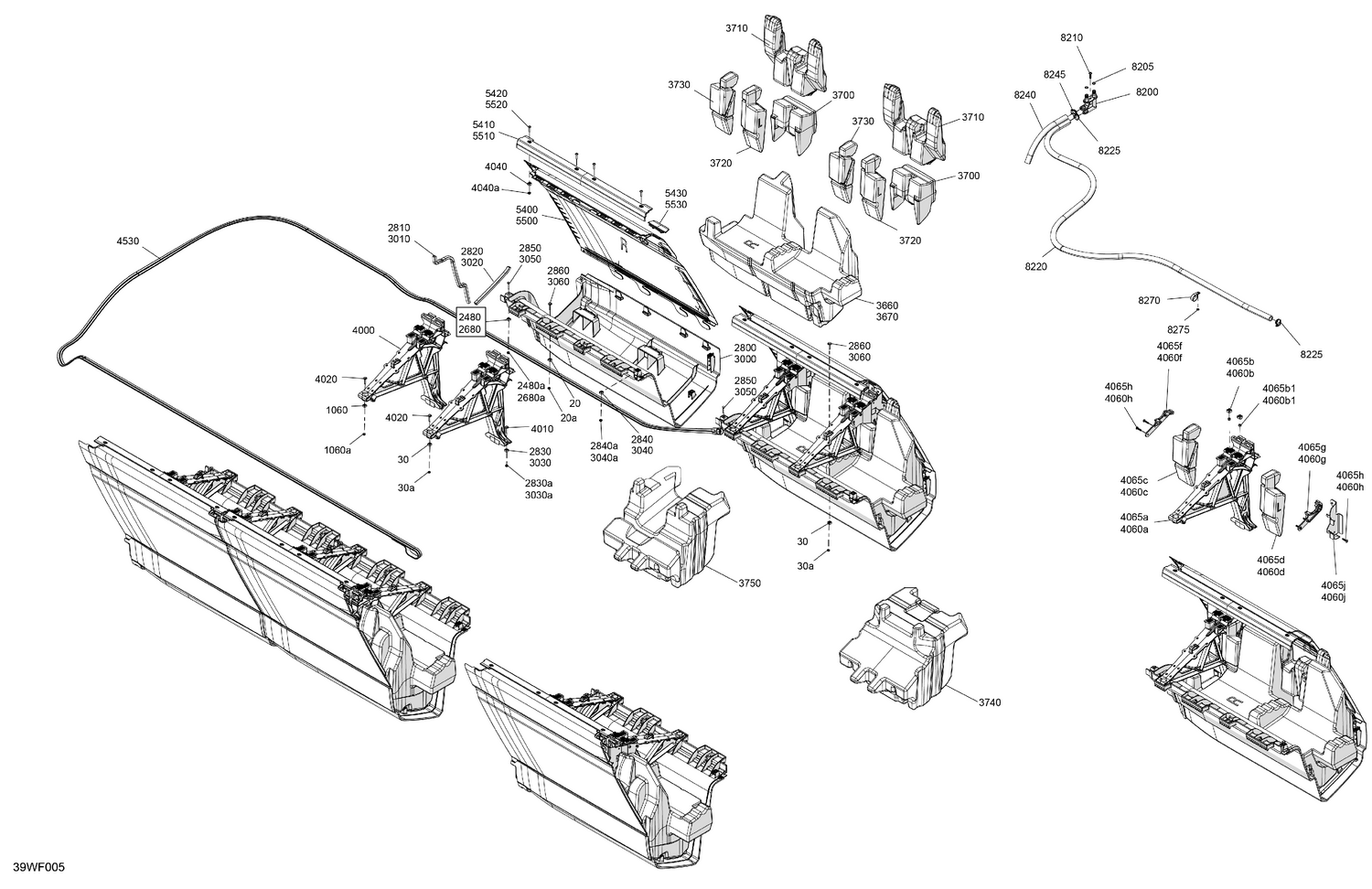

| Ref | Part Number | Description |
|---|
| 20a |
232561200 |
Brass Elastic Stop Nut M6 |
| 30a |
232561200 |
Brass Elastic Stop Nut M6 |
| 1060a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2480a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2680a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2800 |
291006185 |
LH Central Deflector Float |
| 2810 |
292002677 |
Gasket |
| 2820 |
292002677 |
Gasket |
| 2830a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2840a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2850 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 2860 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 3000 |
291006186 |
RH Central Deflector Float |
| 3010 |
292002677 |
Gasket |
| 3020 |
292002677 |
Gasket |
| 3030a |
232561200 |
Brass Elastic Stop Nut M6 |
| 3040a |
232561200 |
Brass Elastic Stop Nut M6 |
| 3050 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 3060 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 3660 |
292002787 |
LH Central Float |
| 3670 |
292002788 |
RH Central Float |
| 3700 |
291005639 |
Lower Float Support |
| 3710 |
291005845 |
Upper Float Support |
| 3720 |
291005637 |
LH Float Support |
| 3730 |
291005636 |
RH Float Support |
| 3740 |
291006073 |
Upper Float |
| 3750 |
291006059 |
Gas Float |
| 4000 |
291004895 |
Interlocking Tile Support |
| 4010 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 4020 |
250000969 |
Hex Screw SEMS M6X35, SS |
| 4040a |
232561200 |
Brass Elastic Stop Nut M6 |
| 4060a |
291004895 |
Interlocking Tile Support |
| 4060b1 |
232561200 |
Brass Elastic Stop Nut M6 |
| 4060c |
291005636 |
RH Float Support |
| 4060d |
291005637 |
LH Float Support |
| 4060f |
291006538 |
Machined Support Reinforcement |
| 4060g |
291006539 |
Machined Support Reinforcement |
| 4060h |
250000879 |
Plastite Torx Screw M6.81X30 |
| 4060j |
291006505 |
LH Rail Attachment |
| 4065a |
291004895 |
Interlocking Tile Support |
| 4065b1 |
232561200 |
Brass Elastic Stop Nut M6 |
| 4065c |
291005636 |
RH Float Support |
| 4065d |
291005637 |
LH Float Support |
| 4065f |
291006538 |
Machined Support Reinforcement |
| 4065g |
291006539 |
Machined Support Reinforcement |
| 4065h |
250000879 |
Plastite Torx Screw M6.81X30 |
| 4065j |
291006536 |
RH Rail Attachment |
| 4530 |
291005857 |
Rinsing Hose 1091 Cm |
| 5400 |
291006392 |
Lava Grey, LH Central Panel |
| 5410 |
291006553 |
Deep Black, Central Panel Trim |
| 5420 |
250001381 |
Screw Torx Truss Head M6 X 30 |
| 5430 |
291006554 |
Deep Black, Cap Trim |
| 5500 |
291006393 |
Lava Grey, RH Central Panel |
| 5510 |
291006553 |
Deep Black, Central Panel Trim |
| 5520 |
250001381 |
Screw Torx Truss Head M6 X 30 |
| 5530 |
291006554 |
Deep Black, Cap Trim |
| 8200 |
292003066 |
Livewell Fitting |
| 8205 |
293300137 |
O-RING - Call your local BRP dealership |
| 8210 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 8220 |
219704613 |
Hose 19Mm X 4000 mm Long |
| 8225 |
293650284 |
Gear Clamp |
| 8240 |
219704613 |
Hose 19Mm X 4000 mm Long |
| 8245 |
293650284 |
Gear Clamp |
| 8270 |
293750115 |
Open Clamp |
