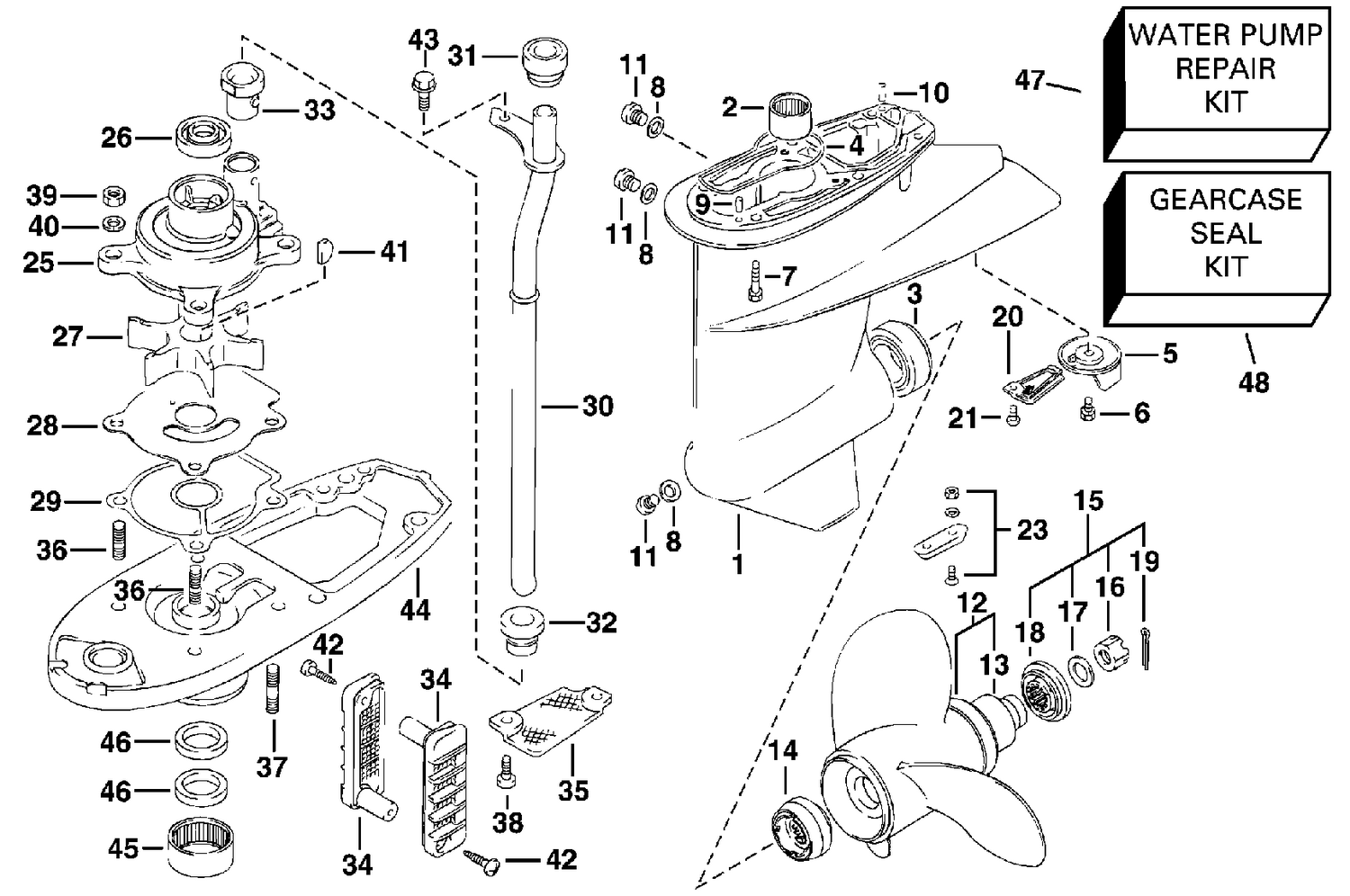

| Ref | Part Number | Description |
|---|
| 1 |
5031534 |
GEARCASE |
| 5 |
5031536 |
TAB, TRIM |
| 6 |
5031215 |
BOLT (8X16) |
| 7 |
5036712 |
BOLT (8X45mm) This part replaces 5031218. |
| 9 |
5031246 |
PIN (6X17mm) |
| 10 |
5031247 |
PIN (6X23mm) |
| 11 |
5030094 |
BOLT (10X7.5mm) |
| 14 |
5031551 |
STOP, PROPELLER BUSHING |
| 15 |
5031548 |
PROPELLER HARDWARE KIT |
| 21 |
5031692 |
SCREW, Cover |
| 23 |
5031538 |
ANODE ASSY. |
| 25 |
5031416 |
CASE, WATER PUMP |
| 30 |
5031420 |
TUBE, WATER |
| 31 |
5031422 |
GROMMET, WATER TUBE UPPER |
| 32 |
5031423 |
GROMMET, WATER TUBE MIDDLE |
| 34 |
5031428 |
FILTER, WATER |
| 35 |
5030739 |
FILTER, SUB WATER |
| 36 |
5031208 |
BOLT, STUD (6X18mm) |
| 37 |
5031209 |
BOLT, STUD (6X35mm) |
| 38 |
5030406 |
SCREW |
| 42 |
5031693 |
SCREW |
| 44 |
5031540 |
HOUSING, Driveshaft bearing |
| 47 |
5031744 |
WATER PUMP REPAIR KIT |
