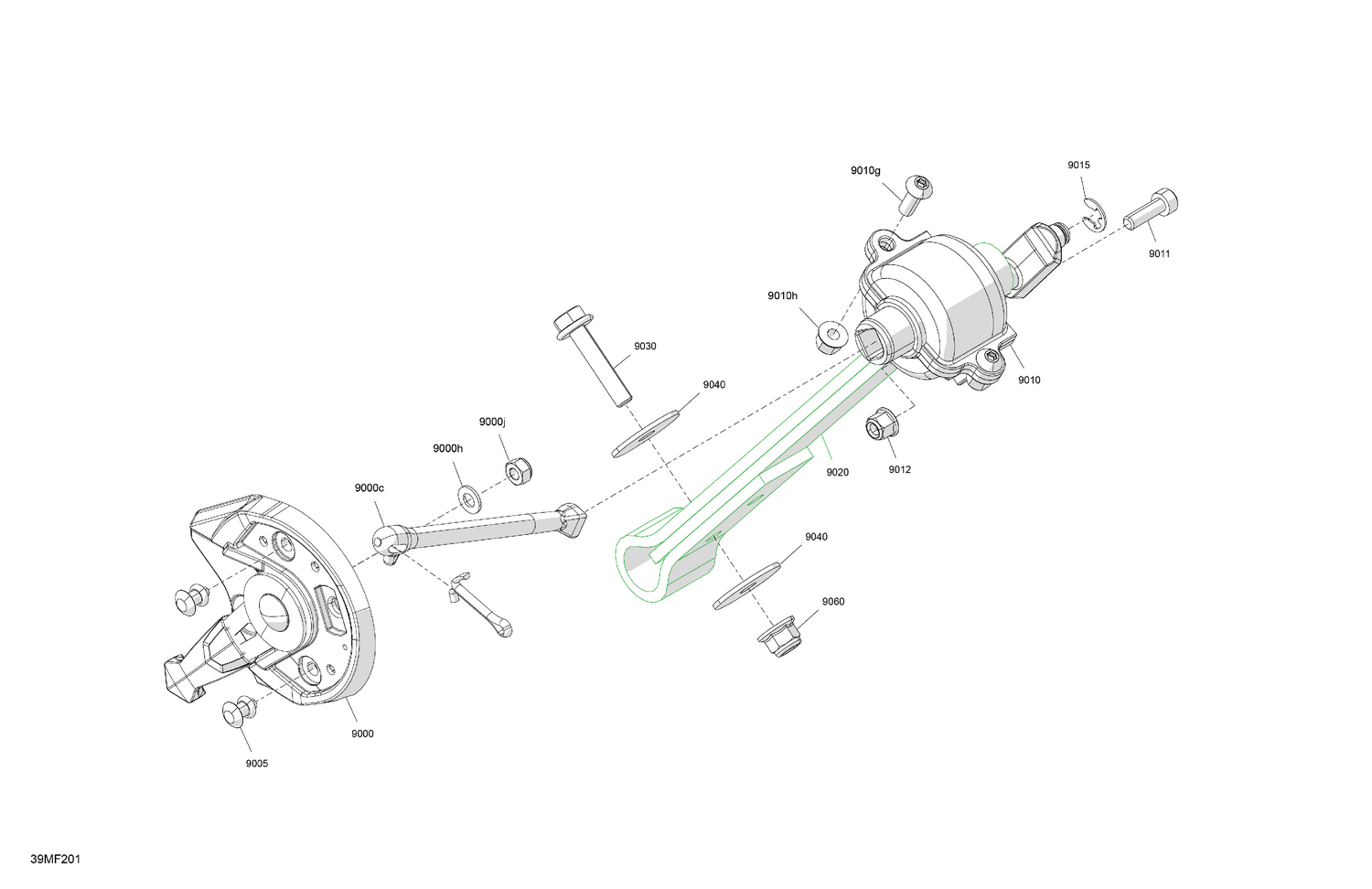

05- Suspension - Strap Limiter
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 9000c | 503196744 | Connecting Shaft |
| 9000h | 234051410 | Flat Washer M5 |
| 9000j | 232551414 | Elastic Stop Nut M5 |
| 9005 | 293150289 | Rivet Ornit 4.8 X 14 |
| 9010g | 235551454 | Screw-Torx Button Head M5 X 14 |
| 9010h | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 9011 | 205051644 | Socket Screw M5 X 16 |
| 9012 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 9015 | 705601030 | Circlip |
| 9020 | 503196372 | Strap Stopper |
| 9030 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 9040 | 503193995 | Washer |
