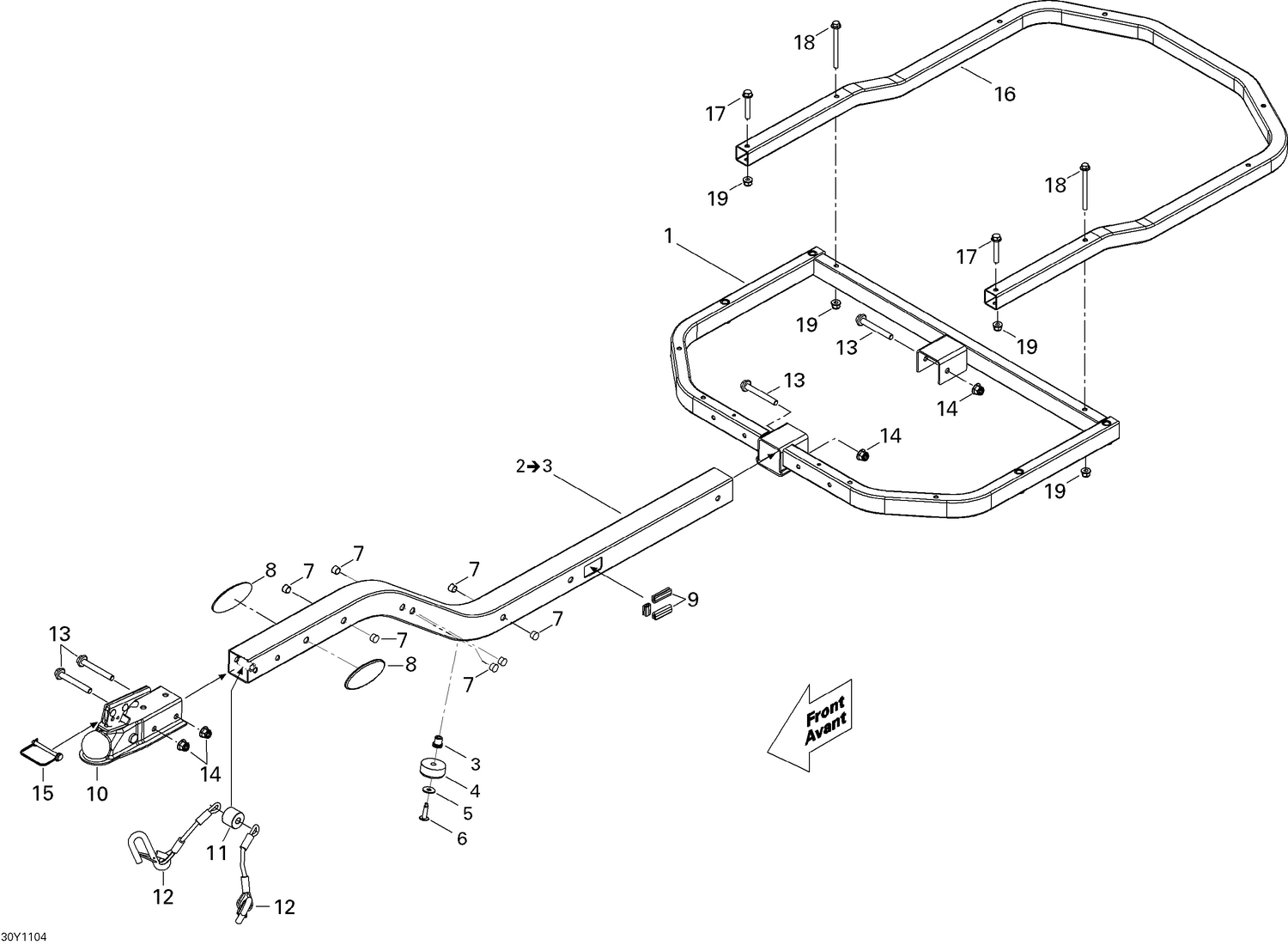

09- Frame _15A1408
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705201953 | RT Trailer Frame |
| 3 | 293450275 | Insert This part replaces 415107300. |
| 4 | 293830144 | Bumper |
| 5 | 250200082 | Flat Washer This part replaces 391302000. |
| 6 | 250000728 | Torx Screw M6 X 25 This part replaces 250000081. |
| 7 | 572051500 | Cap |
| 8 | 219400237 | GIVI REFLECTOR - Call your local BRP dealership This part replaces 705001573. |
| 9 | 219704354 | Trim 1000Mm Long |
| 10 | 705202108 | Trailer Hitch |
| 11 | 705202458 | Bushing |
| 12 | 705202300 | Security Cable |
| 13 | 207607544 | Hex. Flange Screw M10 X 75 |
| 14 | 233201414 | Hex. Flange Elastic Nut M10 |
| 15 | 250400052 | Hitch Pin |
| 16 | 705202123 | Frame Extension Tube |
| 17 | 207685044 | Hex. Flange Screw M8 X 50 |
| 18 | 207689044 | Hex. Flange Screw M8 X 90 |
