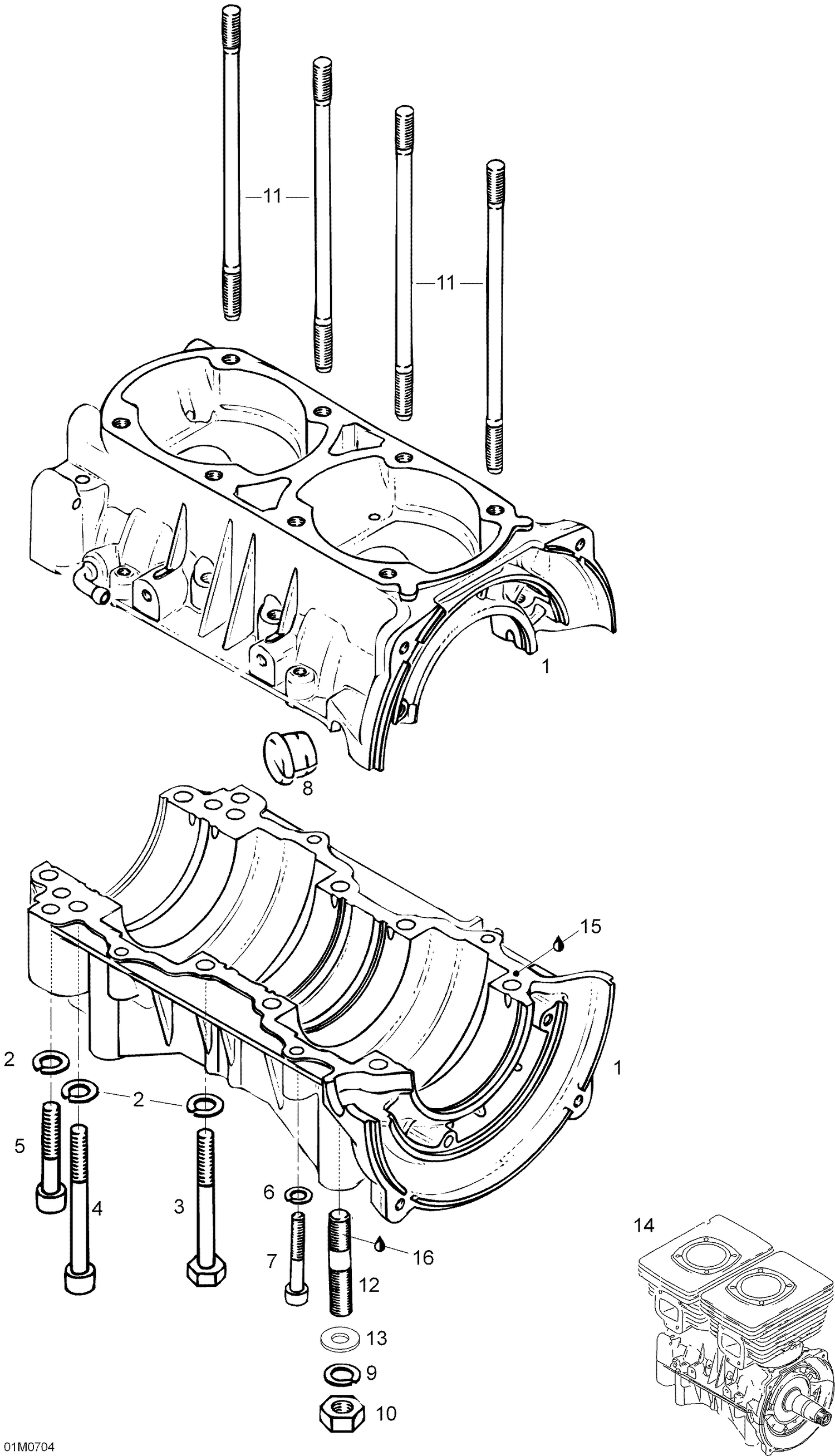

| Ref | Part Number | Description |
|---|
| 2 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 3 |
420841201 |
Hex. Screw M8 X 70 |
| 4 |
420841831 |
ALLEN SCREW M8 X 75 - Call your local BRP dealership |
| 5 |
420841566 |
ALLEN SCREW M8 X 50 - Call your local BRP dealership |
| 6 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 7 |
420241816 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 8 |
420860962 |
Cable Grommet |
| 9 |
M20047 |
Lock Washer |
| 10 |
232006414 |
Hex. Nut M10 X 1.5 |
| 11 |
420841149 |
STUD M8 X 167 - Call your local BRP dealership |
| 12 |
420940190 |
Stud M10 X 29/20 |
| 13 |
234001410 |
Flat Washer 10 mm |
| 14 |
420044301 |
Block-short 443 |
| 15 |
420297907 |
Sealing Compound Loctite 5366 310Ml This part replaces 420297906. |
