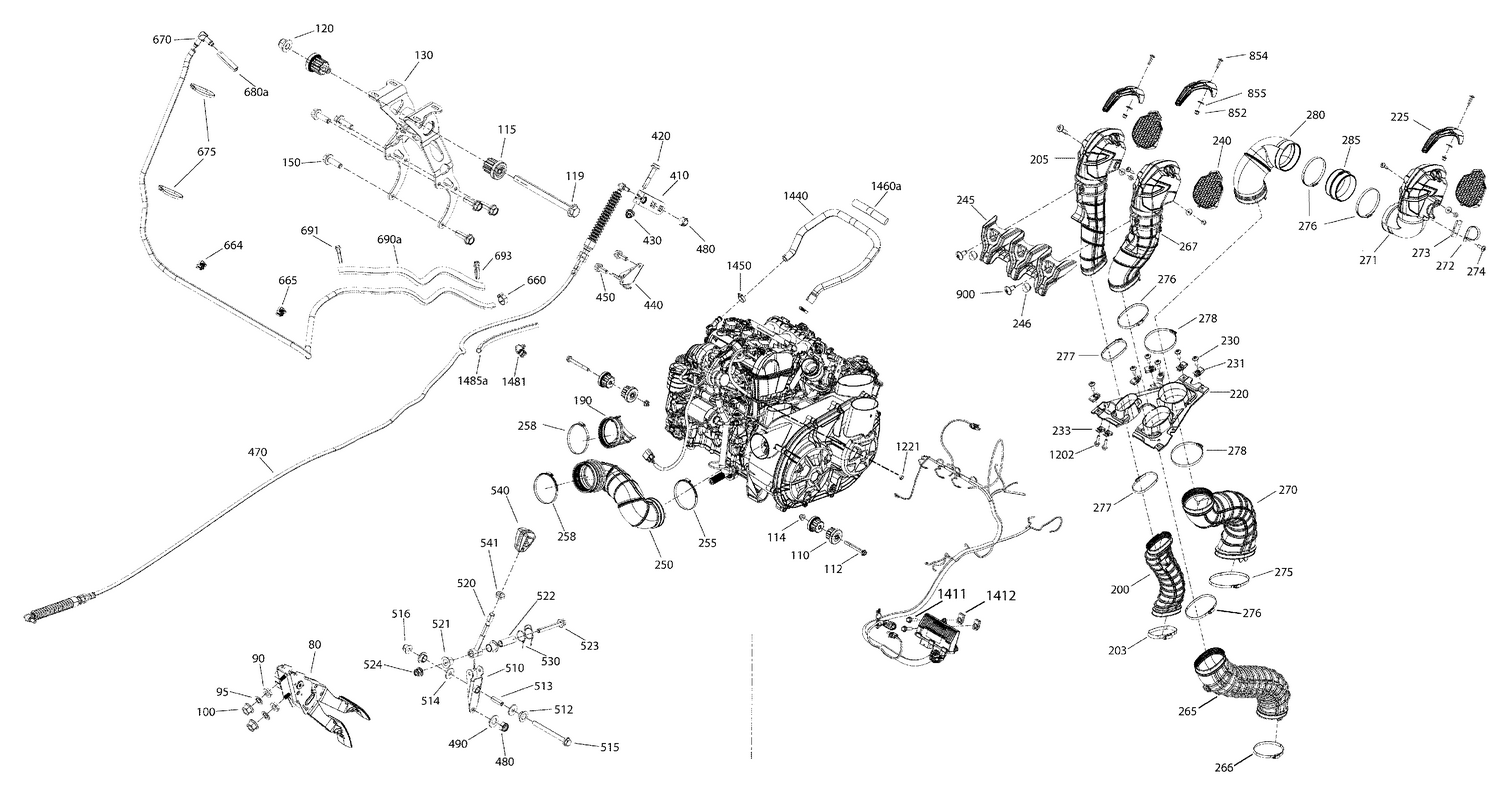

01- Engine - Turbo - Package XMR
Parts (84)
| Ref | Part Number | Description |
|---|---|---|
| 80 | 707001803 | Throttle Pedal |
| 90 | 707001990 | Bushing |
| 95 | 250100031 | Push Nut |
| 100 | 233081416 | Hex. Flange Nut M8 |
| 110 | 707002952 | Vibration Damper This part replaces 707001807. |
| 112 | 207609046 | Hex. Flange Screw M10 X 90 |
| 114 | 233201436 | Hex. Flange Elastic Nut M10 |
| 115 | 707001808 | Anti-Vibration Mount |
| 119 | 230602546 | Hex. Flange Screw M10 X 125 |
| 120 | 233201436 | Hex. Flange Elastic Nut M10 |
| 130 | 707001881 | Rear Engine Support |
| 150 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 190 | 706600248 | Front CVT Duct |
| 200 | 706600225 | Front CVT Duct |
| 203 | 514052924 | Norma Clamp |
| 205 | 706600250 | Top Front CVT Duct |
| 220 | 706600253 | Hose Support |
| 225 | 707002086 | Cap |
| 230 | 250000722 | Torx Screw M6 X 20 |
| 231 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 233 | 250000958 | Panel Nut M5 X 0.8 |
| 240 | 706600296 | Air Inlet Grille This part replaces 706600254. |
| 245 | 706600276 | Hose Holder |
| 246 | 293150103 | Pop Rivet 3/16" |
| 250 | 706600224 | Front CVT Duct |
| 255 | 514052983 | Norma Gear Clamp |
| 258 | 514052983 | Norma Gear Clamp |
| 265 | 706600222 | Rear Duct |
| 266 | 514052983 | Norma Gear Clamp |
| 267 | 706600251 | Top Rear Intake Duct |
| 270 | 706600223 | Rear CVT Duct |
| 271 | 706600252 | Top Rear CVT Exhaust Duct |
| 272 | 293850133 | Open Clamp |
| 273 | 705013076 | Plate |
| 274 | 250000881 | Torx Truss M8 X 16 |
| 275 | 514052861 | Gear Clamp (Norma) |
| 276 | 514052983 | Norma Gear Clamp |
| 277 | 293650096 | Norma Clamp |
| 278 | 293650054 | Tridon Clamp |
| 280 | 706600270 | Mid Rear CVT Exhaust Duct |
| 285 | 707002266 | Adaptor |
| 410 | 707000911 | Lever |
| 420 | 207663544 | Hex. Flange Screw M6 X 35 |
| 430 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 440 | 707001614 | Cable Support |
| 450 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 470 | 707001809 | Shifting Cable |
| 480 | 232581414 | Hex. Elastic Stop Nut M8 |
| 490 | 234001410 | Flat Washer 10 mm |
| 510 | 707000828 | Lower Lever Arm |
| 512 | 707000847 | Flanged Bushing |
| 513 | 707001376 | Bushing |
| 514 | 234062410 | Flat Washer 6 mm |
| 515 | 207667056 | Hex. Flange Screw M6 X 70 |
| 516 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 520 | 707000711 | Upper Lever Arm |
| 521 | 707000869 | Flanged Bushing |
| 522 | 707001376 | Bushing |
| 523 | 207665044 | Hex. Flange Screw M6 X 50 |
| 524 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 530 | 707000750 | Lever Arm Spring |
| 540 | 707003211 | Lever Trim This part replaces 707000965. |
| 541 | 232180491 | Hex. Jam Nut M8 |
| 660 | 293650042 | Oetiker Clamp |
| 664 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 665 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 670 | 293710171 | Elbow Fitting |
| 675 | 293750008 | Tie Wrap 368 mm |
| 680a | 219704389 | Polyurethane Hose 4000MM Long |
| 690a | 219704449 | TUBING 13MM I.D. 300MM LONG - Call your local BRP dealership |
| 691 | 414115200 | Tie-Rap 180 mm |
| 693 | 414115200 | Tie-Rap 180 mm |
| 852 | 233251494 | Elastic Flange Nut M5 |
| 854 | 250000792 | Torx Screw M5 X 20 |
| 855 | 234052600 | Flat Washer 5 mm, Stainless |
| 900 | 250000851 | Torx Screw M6 X 14 |
| 1202 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 1221 | 293650262 | Oeticker Clamp |
| 1411 | 207662554 | Hex. Flange Screw M6 X 25 |
| 1412 | 250100198 | Panel Nut M6 X 1.0 |
| 1440 | 707001931 | Hose Vent |
| 1450 | 293650051 | Tridon Gear Clamp |
| 1460a | 219704450 | Corrugated Sheath 23 MM ID 1000MM Long |
| 1481 | 710005037 | Clip Tie-Rap |
