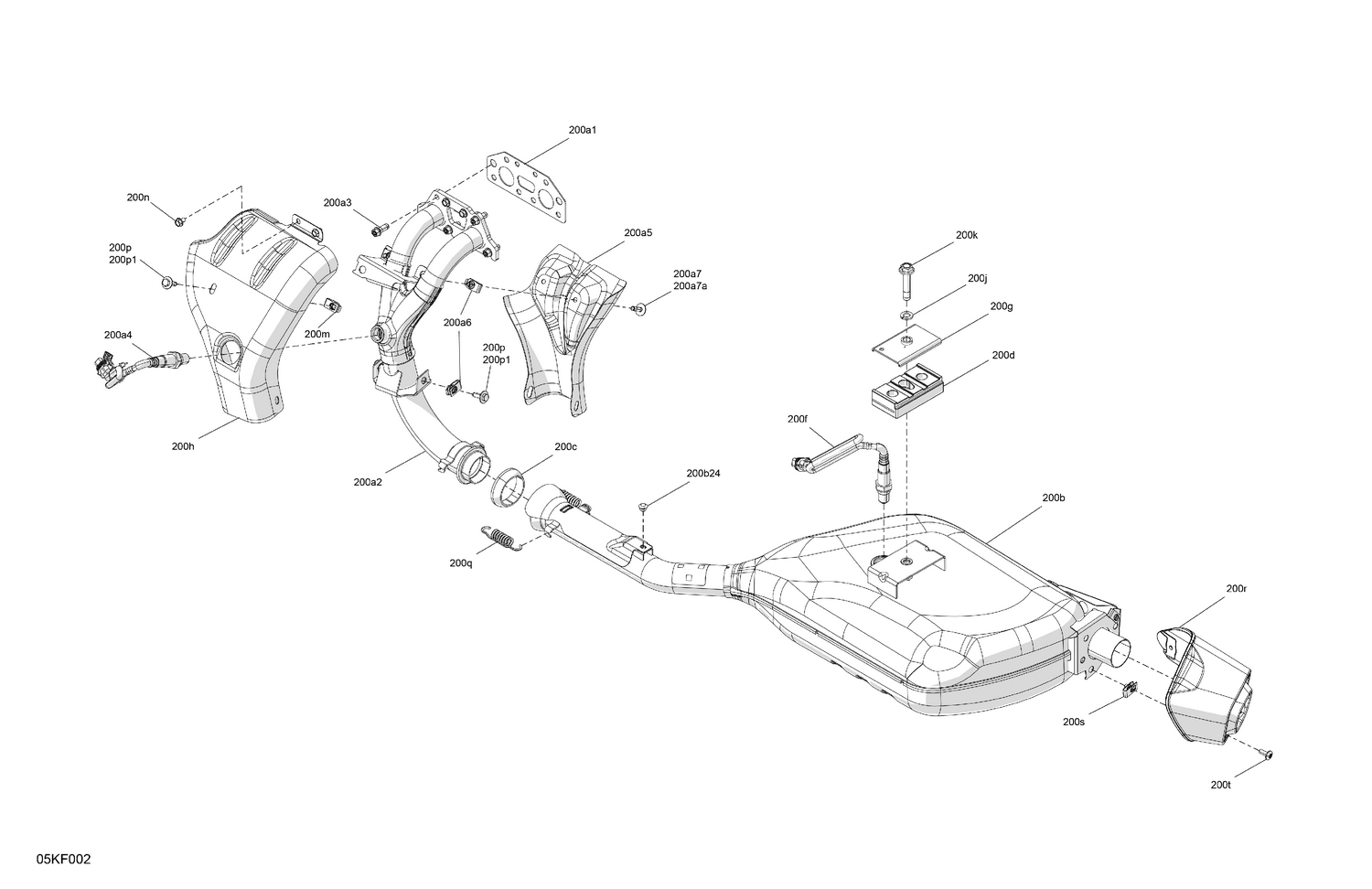

02- Engine - Exhaust
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 200a1 | 707601939 | Exhaust Manifold Gasket |
| 200a2 | 707601938 | Exhaust Manifold |
| 200a3 | 250001089 | Hex. Flange Screw M8 X 20 |
| 200a4 | 707600872 | Oxygen Sensor |
| 200a5 | 707604131 | Heat Shield |
| 200a6 | 250100198 | Panel Nut M6 X 1.0 |
| 200a7a | XXX | Not Available As Spare Parts |
| 200b24 | 293150264 | Rivet Ornit 6,5 X 10.5 |
| 200c | 707601033 | Exhaust Gasket |
| 200d | 707603448 | Vibration Damper |
| 200f | 707600872 | Oxygen Sensor |
| 200g | 707603884 | Rear Upper Exhaust Support |
| 200h | 707604129 | Heat Shield |
| 200j | 234101601 | Helicoidal Lock Washer M10 |
| 200k | 250001079 | Hex. Flange Screw M10 X 50 |
| 200m | 250100198 | Panel Nut M6 X 1.0 |
| 200n | 210261050 | Hex. Forming Screw M6 X 10 |
| 200p1 | XXX | Not Available As Spare Parts |
| 200q | 514055198 | Spring |
| 200r | 707602404 | Carbon Black, Muffler End Piece |
| 200s | 250100198 | Panel Nut M6 X 1.0 |
