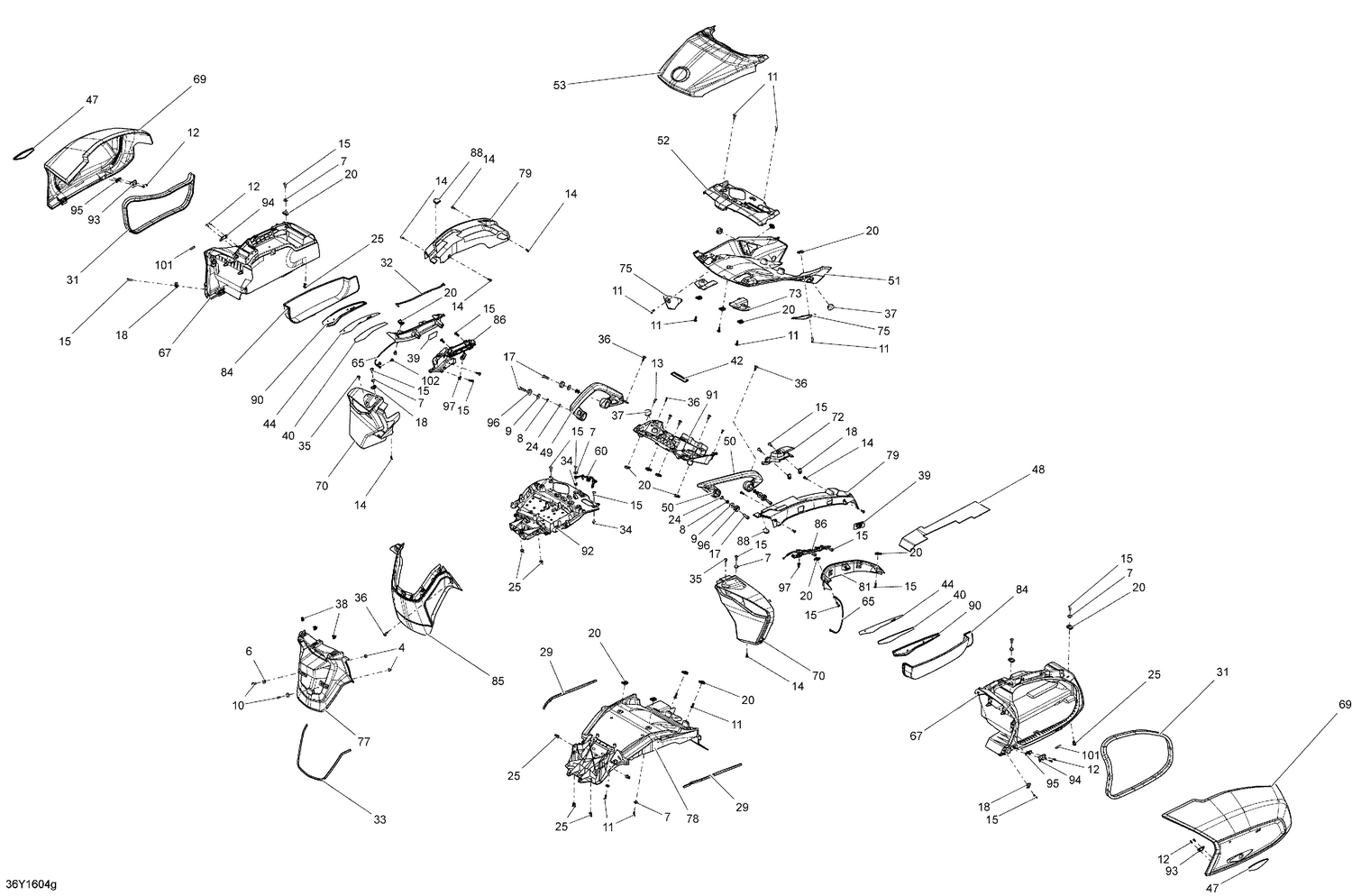

09- Body And Accessories - Luggages - Package T-LTD-LTD Special - North America
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 233261494 | Hex. Flange Elastic Nut M6 |
| 5 | 234051670 | Flat Washer M5 |
| 6 | 234062600 | Flat Washer M6, Stainless |
| 7 | 234062670 | Stainless Steel Flat Washer |
| 8 | 234081670 | Stainless Steel Flat Washer 8 mm |
| 9 | 234082410 | Flat Washer 8 mm |
| 10 | 250000303 | Torx Truss Screw M6 X 20 |
| 11 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 12 | 250000577 | Torx Truss Screw K40 X 12 |
| 13 | 250000717 | Torx Head Screw M6 X 16 |
| 14 | 250000720 | Torx Screw K50 X 16 |
| 15 | 250000722 | Torx Screw M6 X 20 |
| 17 | 250000823 | Socket Head Screw M8 X 30, Scotch Grip |
| 18 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 19 | 250100152 | Cap Nut M5 |
| 24 | 250100181 | Push Nut |
| 25 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 26 | 219704371 | Neoprene Seal 3000 mm Long |
| 29 | 293250385 | Neoprene Seal, 150 MM |
| 31 | 219704371 | Neoprene Seal 3000 mm Long |
| 32 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 33 | 219704373 | Seal 1000Mm Long |
| 34 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450232. |
| 35 | 293830005 | Rubber Bumper |
| 36 | 414745900 | Tuflock Phillips Plastic Screw |
| 37 | 414916600 | Black, Nylon Cap |
| 38 | 517302785 | Edge Clip |
| 39 | 704905122 | Warning Load Decal, 6.8 Kg (15lb) |
| 42 | 704905455 | WARNING DECAL - Call your local BRP dealership |
| 44 | 704905469 | Trim Box Double Face Tape |
| 46 | 705011221 | Red Reflector This part replaces 705002408. |
| 47 | 705003412 | Red, Lateral Reflector |
| 48 | 705009908 | Heat Shield |
| 49 | 708003456 | LH Rear Holding Handle This part replaces 708001413. |
| 50 | 708003457 | RH Rear Holding Handle This part replaces 708001414. |
| 51 | 708001415 | Under Tail Cover |
| 52 | 708001492 | Rear Support |
| 60 | 708002532 | Lanyard This part replaces 708001910. |
| 65 | 708300385 | Retainer Cable |
| 72 | 708301222 | LH Control |
| 77 | 708301584 | Rear Fender |
| 78 | 708301609 | Under Tail |
| 83 | 708301697 | RH Control |
| 85 | 708301747 | Rear Fender Extention |
| 86 | 708301794 | LH Latch Assembly |
| 87 | 708301795 | RH Latch Assembly |
| 88 | 708301805 | Antena Cap |
| 91 | 708301698 | Cargo Rear Support |
| 92 | 708302006 | ELECTRONIC SUPPORT ASSEMBLY - Call your local BRP dealership |
| 93 | 708302044 | Female Hinge |
| 94 | 708302045 | Male Hinge |
| 95 | 708302046 | Retaining Plate |
| 96 | 708302461 | Bushing This part replaces 708302048. |
| 97 | 710002033 | Connector Holder |
| 98 | 710004056 | Rear Light |
| 100 | 710004057 | Rear Flasher |
| 101 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long |
