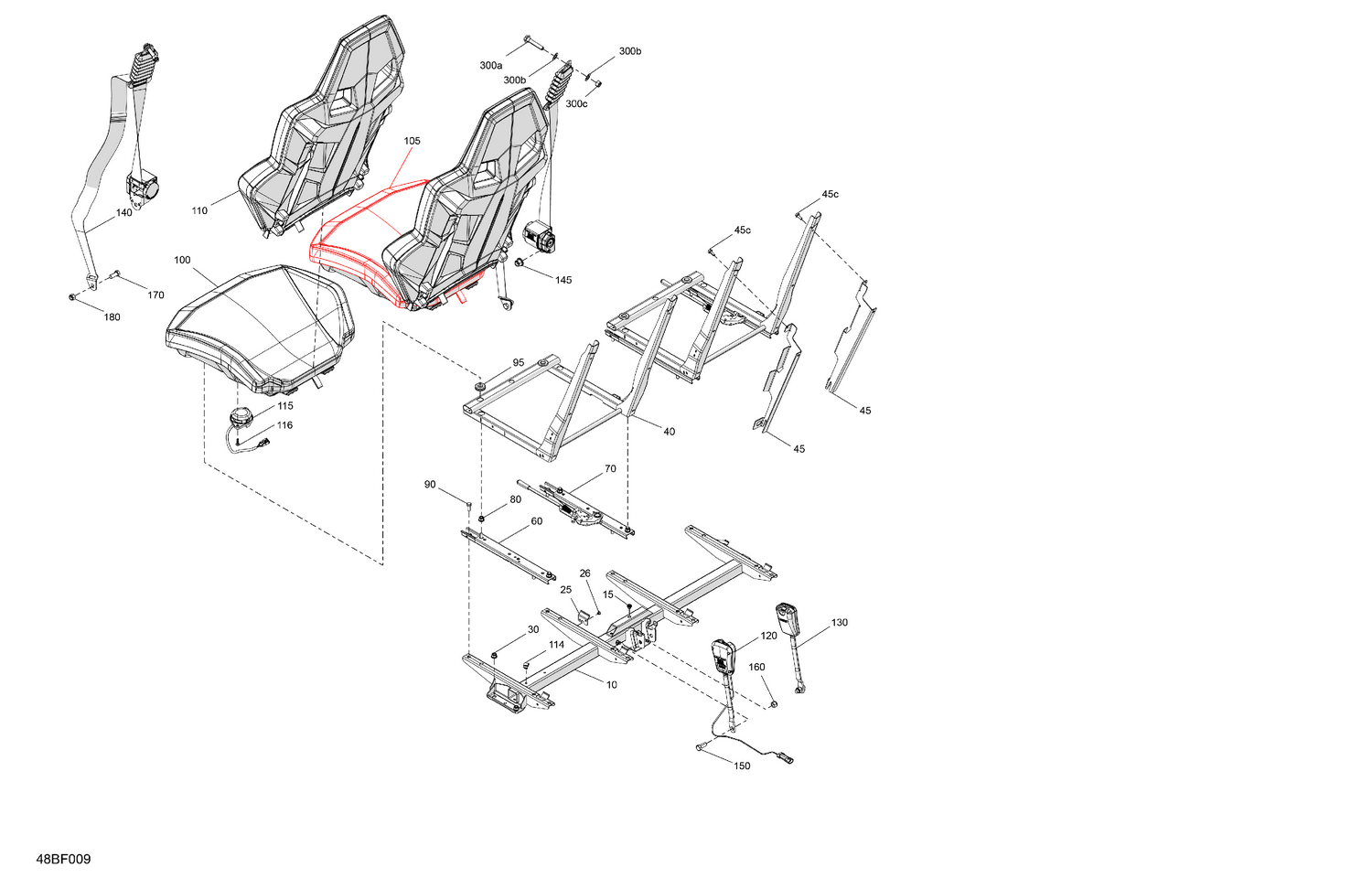

07- Body - Seat
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 708003469 | Seat Member |
| 15 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 25 | 708003672 | Seat Stopper |
| 26 | 293150293 | Pop Rivet 3/16 X ,425 |
| 30 | 233281414 | Hex. Flange Elastic Nut M8 |
| 40 | 708002423 | Seat Frame |
| 45c | 207661654 | Hex. Flange Screw M6 X 16 |
| 60 | 708003314 | LH Seat Rail |
| 70 | 708003316 | RH Slide |
| 80 | 233281414 | Hex. Flange Elastic Nut M8 |
| 90 | 207182044 | Hex. Screw M8 X 20 |
| 95 | 517303756 | Grommet |
| 100 | 708002847 | Cushion Ass'y |
| 105 | 708002847 | Cushion Ass'y |
| 110 | 708002859 | Backrest Ass'y |
| 114 | 515176795 | Tie Rap Mount (screwable) |
| 115 | 710008103 | Passenger Detection Switch |
| 116 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 120 | 708002331 | Driver Buckle |
| 130 | 708002329 | Passenger Buckle |
| 140 | 708003378 | Safety Belt |
| 145 | 233221416 | Elastic Flange Nut M12 |
| 150 | 250001316 | Hex. Cap Screw 7/16'' X 1'' |
| 160 | 250100183 | Lock Nut Nylon 7/16 |
| 170 | 250001316 | Hex. Cap Screw 7/16'' X 1'' |
| 180 | 250100183 | Lock Nut Nylon 7/16 |
| 300a | 708002443 | Safet Belt Screw |
| 300b | 708000891 | Position Washer |
