Parts Catalog

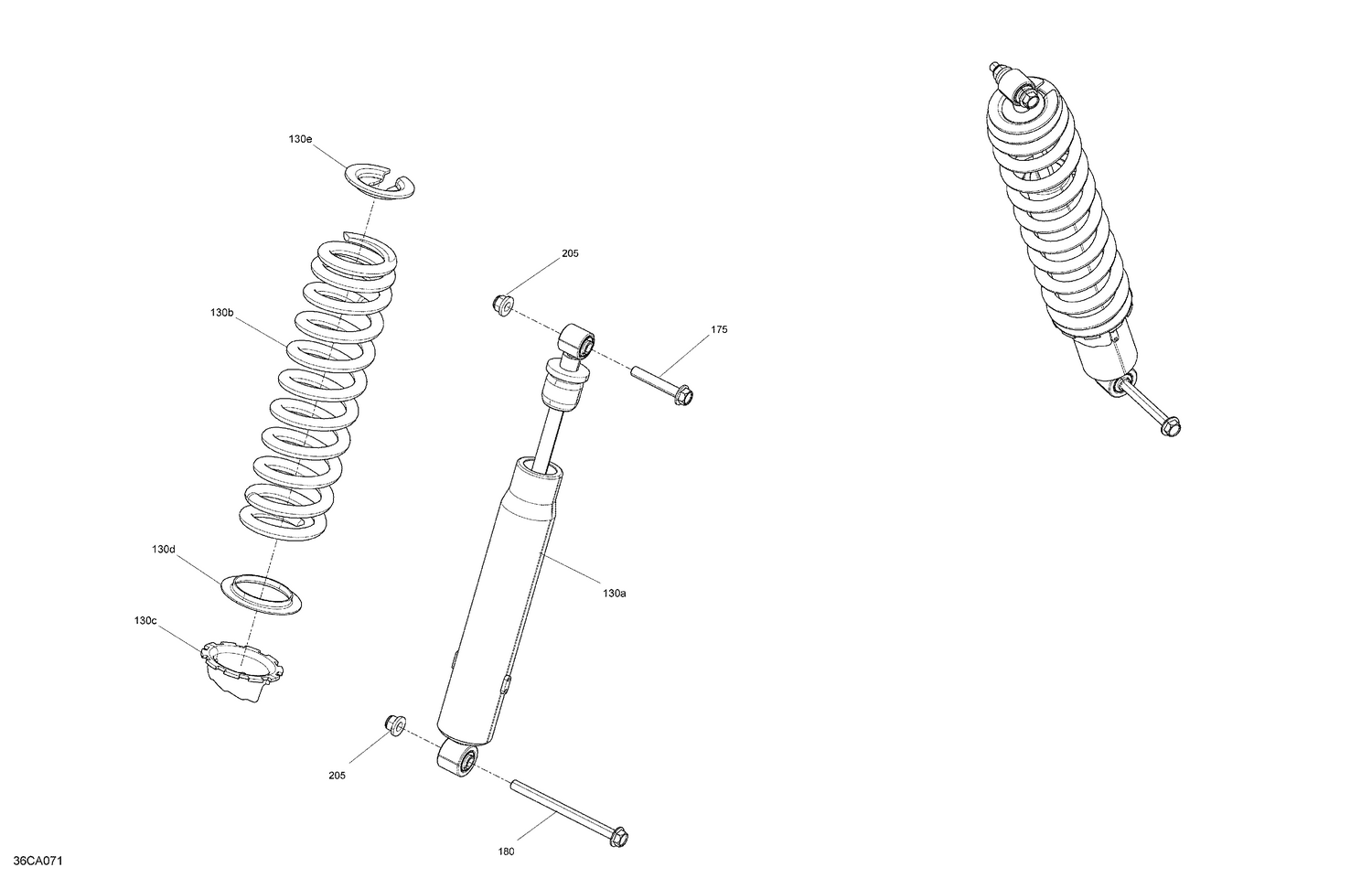

05- Suspension - Rear Shocks

Parts (7)

Ref	Part Number	Description
130a	706002485	Rear Shock Absorber
130b	706003392	Deep Black, Rear Compression Spring
130c	706000910	Adjustment Ring
130d	706000911	Protector Ring
130e	706001894	Spring Cup
175	207606046	Hex. Flange Screw M10 X 6
180	230603046	Hex. Flange Screw, M10 X 130
